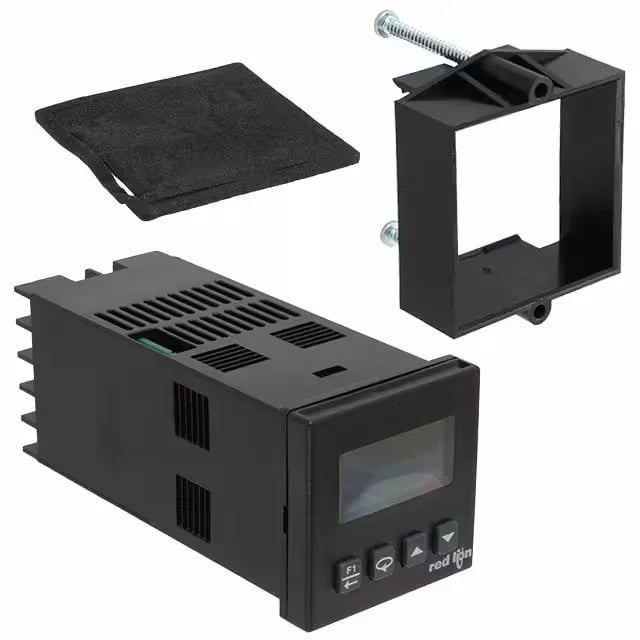

Red Lion Controls C48CD002
MPNC48CD002
Active
COUNTER LCD 6 CHAR 85-250V PANEL
$295.38 – $477.89Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Reset type | Key |
| Output signal | NPN Open Collector; PNP Open Collector; Relay |
| Display type | LCD |
| Terminal connection type | Wire Clamping Screw |
| Input voltage | 85 to 250V AC |
| IP rating | IP65 |
| NEMA enclosure rating | 4X |
| Mounting style | DIN Track |
| Digit color | Green/Yellow |
| Cutout width | 1-7/8 in |
| Cutout height | 1-7/8 in |
| Overall depth | 4-5/8 in |
All specifications
| Parameter | Value |
|---|---|
| Overall width | 2 in |
| Overall height | 2 in |
| Digit height - maximum | 0.3 in |
| Standards | cRUus; UKCA; UL E137808 |
| Dim. | 2 in x 2 in |
| Brand | RED LION |
| Features | Bi-Directional and Quadrature CountingDual Preset VersionDual Relays Outputs |
| Sub-brand | Carlton Bates Co |
| No. of digits | 6 |
| Output rating | 1/10 HP @ 120V AC; 5 A @ 250V AC; 5 A @ 30V DC |
| Cutout DIN size | 1/8 |
MPN
C48CD002
