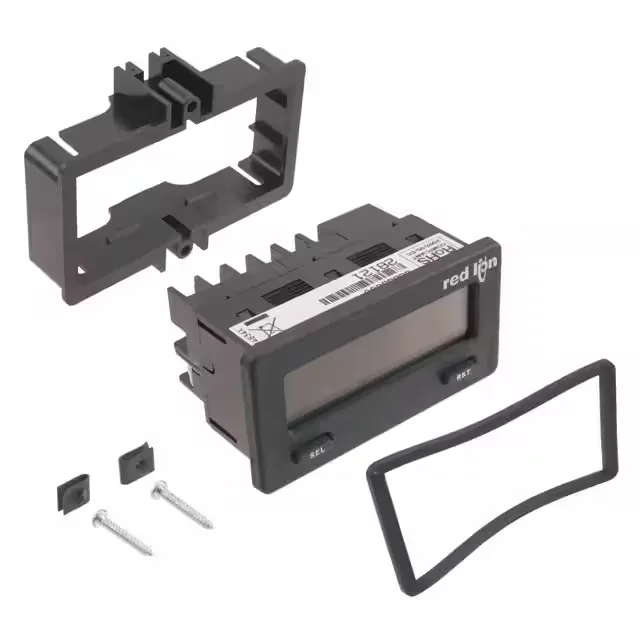

Red Lion Controls CUB5B000
MPNCUB5B000
Active
COUNTER LCD 8 CHAR 9-28V PNL MT
$175.00 – $285.85Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Reset type | Push Button |
| Display type | LCD |
| Terminal connection type | Wire Clamping Screw |
| Input voltage | 10 to 28V DC |
| IP rating | IP65 |
| NEMA enclosure rating | 4X |
| Interface | RS-232; RS-485 |
| Mounting style | Panel |
| Includes mounting hardware | Included |
| Digit color | Green/Red |
| Cutout width | 2-3/4 in |
| Cutout height | 1-3/8 in |
All specifications
| Parameter | Value |
|---|---|
| Overall depth | 1-7/8 in |
| Overall width | 3 in |
| Overall height | 1-1/2 in |
| Digit height - maximum | 0.46 in |
| Standards | CE Approved; cULus; UKCA |
| Dim. | 1-1/2 in x 3 in |
| Brand | RED LION |
| Features | Decimal Points and ScalingDual Counter or Counter/Rate IndicatorFront Panel ProgrammingOptional Setpoint Cards available (Dual Sink or Relay)Optional USB Programming Card AvailablePreset Capability with Optional Output Card |
| Includes | Mounting Clip; Panel Gasket |
| Sub-brand | Carlton Bates Co |
| Counts (Second) | 1 |
| No. of digits | 8 |
| Count speed - maximum | 20 kHz |
MPN
CUB5B000
