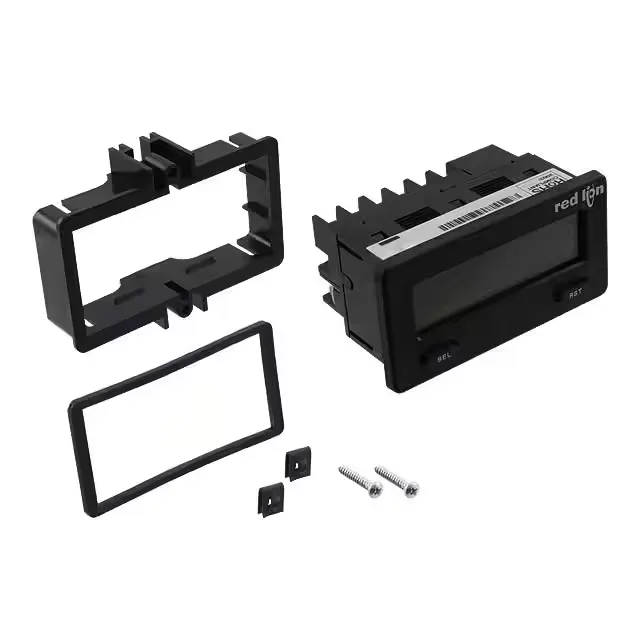

Red Lion Controls CUB5TB00
MPNCUB5TB00
Active
COUNTER LCD 8 CHAR 9-28V PNL MT
$175.00 – $285.24Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | CUB5 |
| Function type | Preset Timer |
| Terminal connection type | Screw Clamp |
| Digital display screen type | LED |
| Supply voltage | 28 V AC |
| AC voltage input | 28 V AC |
| AC supply voltage | 28 V AC |
| DC supply voltage | 9 V DC – 28 V DC |
| AC voltage supply max. | 28 V AC |
| DC voltage supply max. | 28 V DC |
| DC voltage supply min. | 9 V DC |
| DC voltage input signal | 9 V DC – 28 V DC |
All specifications
| Parameter | Value |
|---|---|
| NEMA enclosure rating | 4X |
| Interface | RS-232RS-485 |
| Includes mounting hardware | Included |
| Cutout width | 1-19/64 in |
| Cutout height | 2-11/16 in |
| Overall depth | 1.86 in |
| Overall width | 1.54 in |
| Overall height | 1.54 in |
| Digit height - max. | 0.46 in |
| Digital display screen color | Red |
| Standards | CE; EN 61010-1; EN 61010-2-030; EN 61326-1; RoHS Compliant; UL Recognized Component |
| Brand | RED LION |
| Accuracy | +/-0.01% |
| Includes | Mounting Clip; Panel Gasket |
| Sub-brand | Carlton Bates Co |
| Display span | 0 to 999,999 |
| Temperature input | -31 °F to 167 °F |
| Parameters measured | AC VoltageDC VoltageTemperature °C |
| Display span - maximum | 999,999 |
| Display span - minimum | 0 |
| Number of display digits | 8 |
| Temperature display - maximum | 167 °F |
| Temperature display - minimum | -31 °F |
MPN
CUB5TB00
