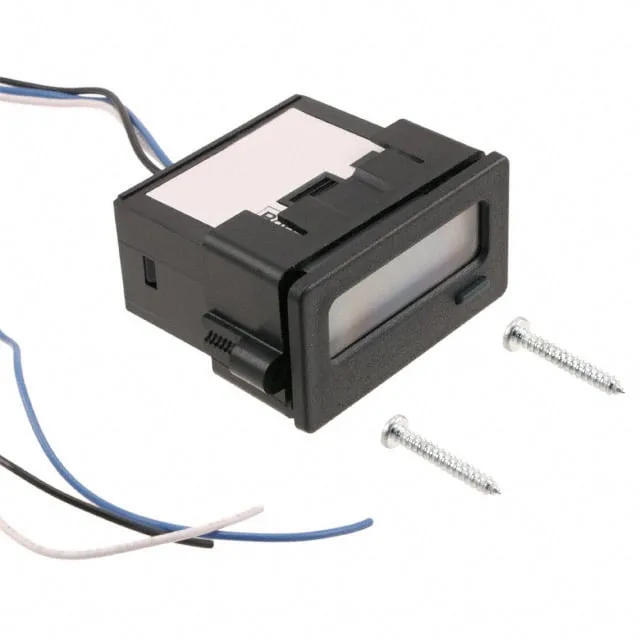

Red Lion Controls CUB7CCS0
MPNCUB7CCS0
Active
COUNTER LCD 8 CHAR 3.6V PANEL MT
$93.25 – $166.98Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Reset type | Key |
| Display type | LCD |
| Terminal connection type | Plug-in |
| Input voltage | 28V DC |
| IP rating | IP65 |
| NEMA enclosure rating | 4X |
| Mounting style | DIN Track |
| Includes mounting hardware | Included |
| Digit color | Green/Yellow |
| Cutout width | 1-7/8 in |
| Cutout height | 1 in |
| Overall depth | 1-3/4 in |
All specifications
| Parameter | Value |
|---|---|
| Overall width | 2 in |
| Overall height | 1-1/8 in |
| Digit height - maximum | 0.35 in |
| Standards | UL |
| Dim. | 1-1/8 in x 2 in |
| Brand | RED LION |
| Features | Low Voltage Input Model (28 VDC max)Reflective DisplayStandard Wire Connections or Optional Plug-in Terminal Block |
| Includes | Mounting Clip; Panel Gasket |
| Sub-brand | Carlton Bates Co |
| Counts (Second) | 10,000 |
| No. of digits | 8 |
| Cutout DIN size | 1/8 |
| Count speed - maximum | 10 kHz |
MPN
CUB7CCS0
