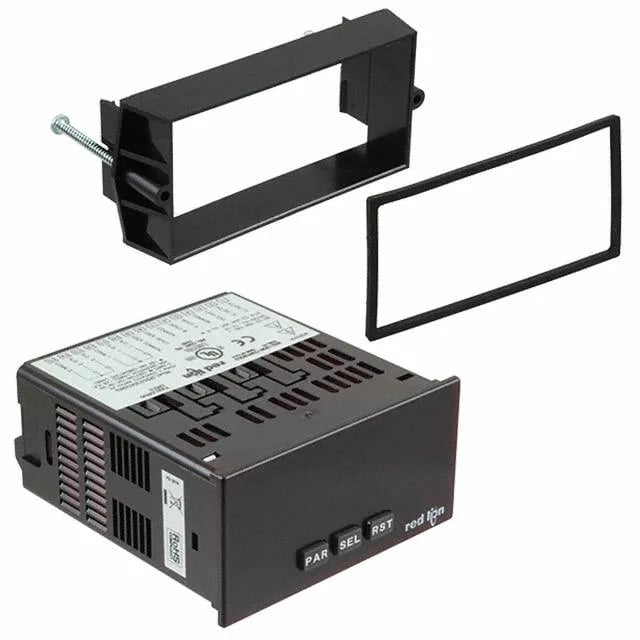

Red Lion Controls PAXLCRU0
MPNPAXLCRU0
Active
COUNTER LED 6 CHAR 50-250V PANEL
$308.00 – $503.97Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Reset type | Key |
| Output signal | Relay |
| Display type | LED |
| Terminal connection type | Screw |
| Input voltage | 21.6 to 250V DC; 50 to 250V AC |
| IP rating | IP65 |
| NEMA enclosure rating | 4X |
| Mounting style | Panel |
| Includes mounting hardware | Included |
| Digit color | Red |
| Cutout width | 3-5/8 in |
| Cutout height | 1-7/8 in |
All specifications
| Parameter | Value |
|---|---|
| Overall depth | 4-1/4 in |
| Overall width | 3-7/8 in |
| Overall height | 2 in |
| Digit height - maximum | 0.56 in |
| Standards | CE Approved; cULus |
| Dim. | 2 in x 3-7/8 in |
| Brand | RED LION |
| Features | Bi-Directional CountingBuilt-in Batch Counting CapabilityDual 5 Amp Form C RelayProgrammable Scaling for Count and RateQuadrature Sensing (upto 4 Times Resolution) |
| Includes | Mounting Clip; Panel Gasket |
| Sub-brand | Carlton Bates Co |
| No. of digits | 6 |
| Output rating | 24V DC @ 100 mA |
MPN
PAXLCRU0
