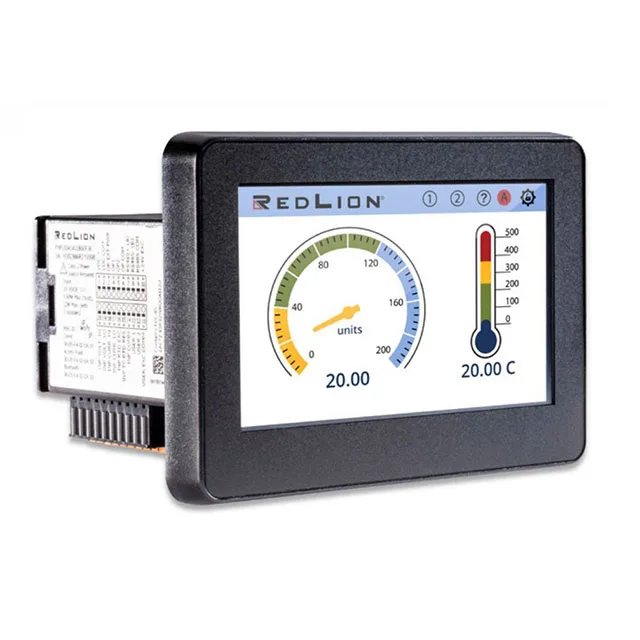

Red Lion Controls PM500D0400800F00
MPNPM500D0400800F00
Active
GRAPHICAL PANEL METER, PM-50, 4.
$367.25 – $514.80Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PAX2D |
| Function type | Universal Digital Meter |
| Terminal connection type | Compression |
| Digital display screen type | LCD |
| Supply voltage | 50 V AC – 250 V AC |
| AC voltage input | 50 V AC – 250 V AC |
| AC supply voltage | 50 V AC – 250 V AC |
| DC supply voltage | 21.6 V DC – 250 V DC |
| AC voltage supply max. | 250 V AC |
| AC voltage supply min. | 50 V AC |
| DC voltage supply max. | 250 V DC |
| DC voltage supply min. | 21.6 V DC |
All specifications
| Parameter | Value |
|---|---|
| DC voltage input signal | 21.6 V DC – 250 V DC |
| NEMA enclosure rating | 4X |
| Interface | RS-232RS-485 |
| Includes mounting hardware | Included |
| Cutout width | 1-49/64 in |
| Cutout height | 3-5/8 in |
| Overall depth | 4.24 in |
| Overall width | 1.95 in |
| Overall height | 1.95 in |
| Digit height - max. | 0.35 in |
| Digital display screen color | Green; Green/Orange/Red |
| Standards | CE; EN 61326-1; IEC/EN 61010-1; RoHS; UL |
| Brand | RED LION |
| Accuracy | +/-0.01% |
| Includes | Mounting Clip; Panel Gasket |
| Sub-brand | Carlton Bates Co |
| Display span | 999,999 to -199,999,999 |
| Parameters measured | AC VoltageDC Voltage |
| Display span - maximum | -199,999,999 |
| Display span - minimum | 999,999 |
| Number of display digits | 6; 9 |
MPN
PM500D0400800F00
