The 140-DAO-842-20C is discontinued per Schneider's product status. For existing panels that must keep the original code, sourcing now runs through surplus and broker channels rather than current distribution. An RFQ confirms available quantity and lead time for a line-down or last-time-buy decision.

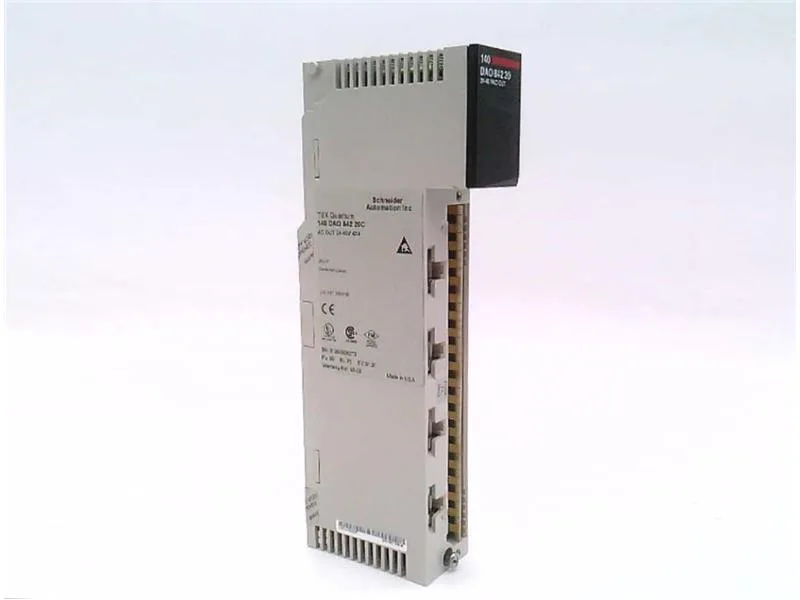

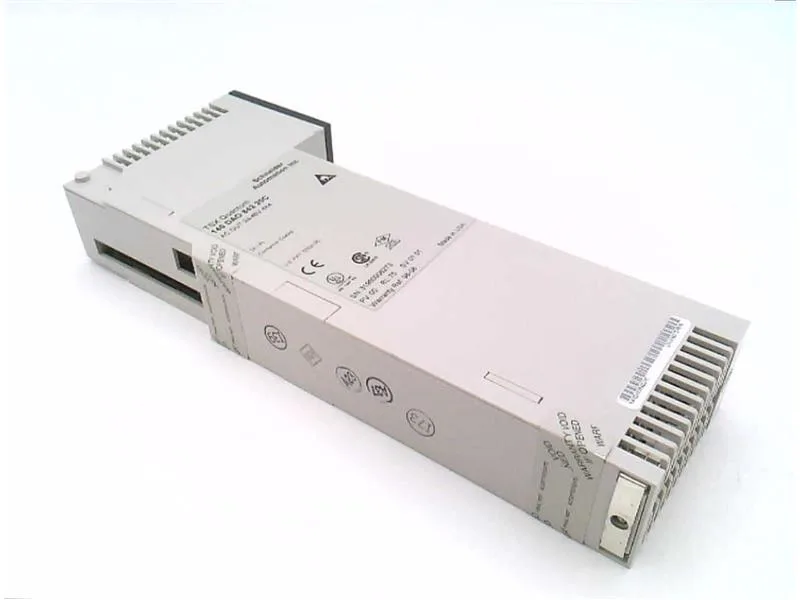

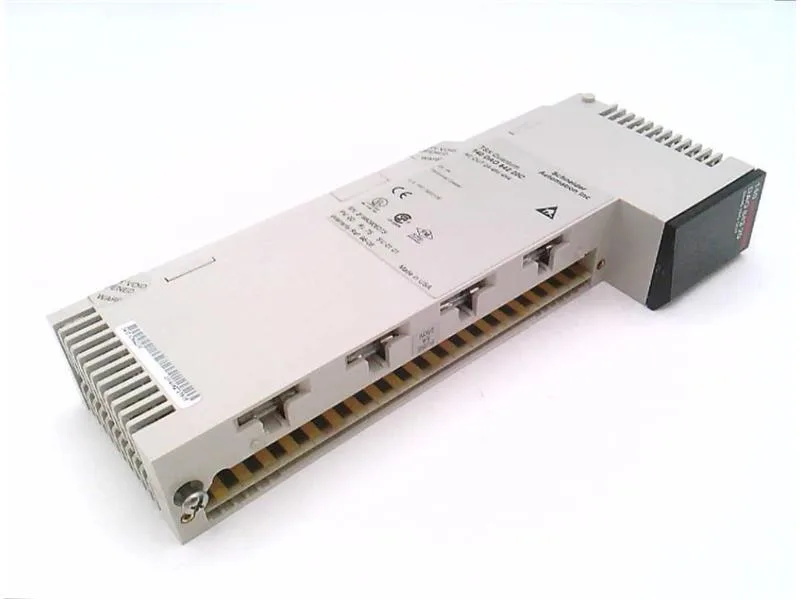

Schneider 140-DAO-842-20C Modicon Quantum AC discrete output module (discontinue
MPN140-DAO-842-20C
Obsolete
Schneider Electric Modicon Quantum automation platform 140-DAO-842-20C AC discrete output module, 16 outputs, 20..56 V AC, 16 A switching current, 400 V/ms dv/dt, isolated, conformal coating, discontinued.
$1,084.95 – $2,615.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Modicon Quantum automation platform |
| Range of product | Modicon Quantum automation platform |
| Voltage max | 1.5 V |
| Voltage out | 20...56 V AC |
| Current_max | 16 A rms per module 4 A rms per group 4 A rms 20...56 V per output |
| Altitude max | <= 16404.2 ft (5000 m) |
| Humidity max | 95 |
| Standards | UL 508 CSA C22.2 No 142 |
| Dv (Dt) | 400 V/ms |
| Marking | CE |
| Power | 1.85 |
| Output signal | Isolated |
All specifications
| Parameter | Value |
|---|---|
| Frequency | 47 |
| Package_type | PCE |
| Channels | 4 |
| Module_format | Standard |
| Protection_type | Internal output protection by 5 A fuse Internal by RC filter |
| Fault indication | Loss of field power Blown fuse |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status |
| Response time | <= 0.5 ms at state 1 to state 0 |
| Switching current | 45 |
| Storage temperature | -40...185 °F (-40...85 °C) |
| Protective treatment | Conformal coating Humiseal 1A33 |
| Discrete_output_count | 16 |
| Addressing requirement | 1 output word |
| Discrete output number | 16 |
| Addressing_requirement | 1 output word |
| Absolute maximum output max | 100 Vrms 1 cycle AC 63 Vrms 10 s AC 111 Vrms 1.3 s AC |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 4 kV (contact discharge) conforming to IEC 801-2 Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 801-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 801-3 |
| Main_product_or_component_type | AC discrete output modules |
| Operating temperature | 32 |
| Ordering and shipping details (Category) | 18155-QUANTUM I/O & POWER SUPPLIES |
Product details
MPN
140-DAO-842-20C
