Schneider Electric 140D Series

9 variants · Schneider Electric

About the Schneider Electric 140D Series

AO Ctrl is a China industrial automation distributor and independent sourcing agent for Schneider Electric 140D Series components — the parts repair and maintenance teams source here when a machine is down or the line is no longer sold locally — with the physical condition of every unit stated up front. The Schneider Electric 140D Series series groups 9 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common module format of Standard, operating temperature of 32...140 °F (0...60 °C) and storage temperature of -40...185 °F (-40...85 °C). Variants differ by main product or component type, response time and input impedance, so you can match the exact main product or component type your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric 140D Series variants and discontinued ones from a single page.

Select a variant by

Main product or component type: AC discrete output modules · Dc discrete output module · Relay discrete output module · VAC discrete input modules
Response time: <= 0.5 ms at state 1 to state 0 · <= 1 ms at state 1 to state 0 · 4.9...0.75 ms x line cycle Off-On 7.3...12.3 ms On-Off
Input impedance: 2600 Ohm capacitive 57...63 Hz 3100 Ohm capacitive 47...53 Hz · 12000 Ohm capacitive 57...63 Hz 14400 Ohm capacitive 47...53 Hz · 26500 Ohm capacitive 57...63 Hz 31800 Ohm capacitive 47...53 Hz
Contact form: Form C · FormA
Discrete output logic: Negative logic (sink) · Positive logic (source)
Electrical life cycles: 100000 cycles 100 mA 30...150 V DC L/R = 10 ms 100000 cycles 2 A 30 V DC resistive 100000 cycles 30...150 V DC interposing relay 100000 cycles 300 mA 30...150 V DC resistive 200000 cycles 2 A 250 V AC resistive 50000 cycles 500 mA 30...150 V DC resistive · 100000 cycles 100 mA 30...150 V DC L/R = 10 ms 100000 cycles 30...150 V DC interposing relay 100000 cycles 300 mA 30...150 V DC resistive 100000 cycles 5 A 30 V DC resistive 200000 cycles 5 A 250 V AC resistive 50000 cycles 500 mA 30...150 V DC resistive
Frequency: 30 Hz resistive F = 0.5/I²L inductive · 47 ... 63 Hz

Shared specifications

Module format: Standard
Operating temperature: 32...140 °F (0...60 °C)
Storage temperature: -40...185 °F (-40...85 °C)
Temp operating max: 60 °C
Temp operating min: 0 °C
Temp storage max: 85 °C
Temp storage min: -40 °C

Variant comparison

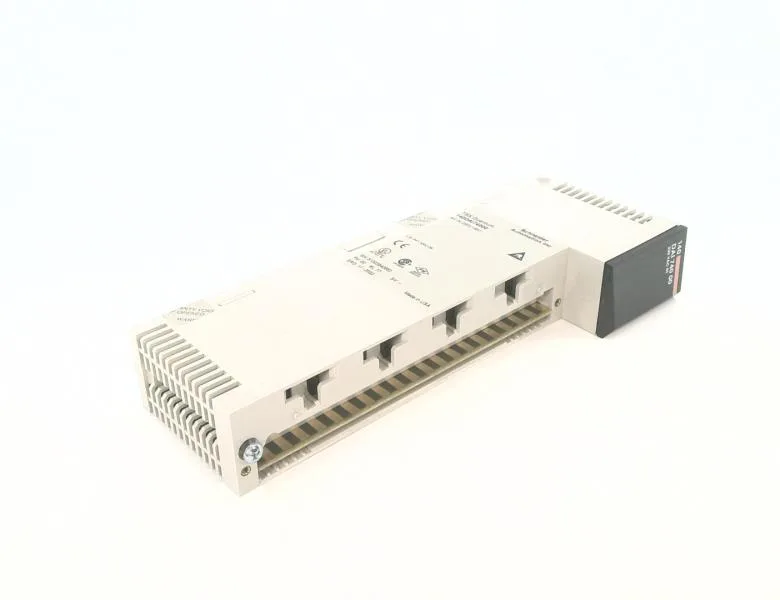

Parameter	140DAI55300	140DAO84210	140DAI74000	140DRC83000	140DAI54000	140DDO84300
Main product or component type	VAC discrete input modules	AC discrete output modules	VAC discrete input modules	Relay discrete output module	VAC discrete input modules	Dc discrete output module
Response time	4.9...0.75 ms x line cycle Off-On 7.3...12.3 ms On-Off	<= 0.5 ms at state 1 to state 0	4.9...0.75 ms x line cycle Off-On 7.3...12.3 ms On-Off	—	4.9...0.75 ms x line cycle Off-On 7.3...12.3 ms On-Off	<= 1 ms at state 1 to state 0
Input impedance	12000 Ohm capacitive 57...63 Hz 14400 Ohm capacitive 47...53 Hz	—	26500 Ohm capacitive 57...63 Hz 31800 Ohm capacitive 47...53 Hz	—	12000 Ohm capacitive 57...63 Hz 14400 Ohm capacitive 47...53 Hz	—
Contact form	—	—	—	Form C	—	—
Discrete output logic	—	—	—	—	—	Positive logic (source)
Electrical life cycles	—	—	—	100000 cycles 100 mA 30...150 V DC L/R = 10 ms 100000 cycles 30...150 V DC interposing relay 100000 cycles 300 mA 30...150 V DC resistive 100000 cycles 5 A 30 V DC resistive 200000 cycles 5 A 250 V AC resistive 50000 cycles 500 mA 30...150 V DC resistive	—	—
Frequency	—	47 ... 63 Hz	—	30 Hz resistive F = 0.5/I²L inductive	—	—

Request a quote on any Schneider Electric 140D Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
