Schneider 140-DDO-885-00 Plc Expansion Modules — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Series | Modicon Quantum automation platform |
| Range of product | Modicon Quantum automation platform |
| Voltage out | 24...125 V DC |
| Current_max | <= 0.75 A 32...104 °F (0...40 °C) each point |
| Short-Circuit protection | With |
| Altitude max | <= 16404.2 ft (5000 m) |
| Humidity max | 95 |
| Standards | UL 508 CSA C22.2 No 142 |
| Marking | CE |
| Power | 1 |
| Frequency | 50 |
| Package_type | PCE |
| Parameter | Value |
|---|---|
| Channels | 2 |
| Inductance | No limit (protected by diode) |
| Module_format | Standard |
| Resistance | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
| Protection_type | Internal output protection by 4 A fuse |
| Voltage | By varistor per group |
| Fault indication | Overcurrent |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status |
| Response time | 1 ms at state 0 to state 1 1 ms at state 1 to state 0 |
| Switching current | 4 |
| Storage temperature | -40...185 °F (-40...85 °C) |
| Discrete_output_count | 12 |
| Discrete_output_logic | Negative logic (sink) |
| Addressing requirement | 1 input word 1 output word |
| Discrete output number | 12 |
| Addressing_requirement | 6 output words |
| Isolation between group | 1200 Vrms DC for 1 minute |
| Maximum tungsten load max | 41 W 115 V 46 W 130 V 8 W 24 V |
| Main_product_or_component_type | Dc discrete output module |
| Operating temperature | 32 |
| Ordering and shipping details (Category) | US1PC2118155 |

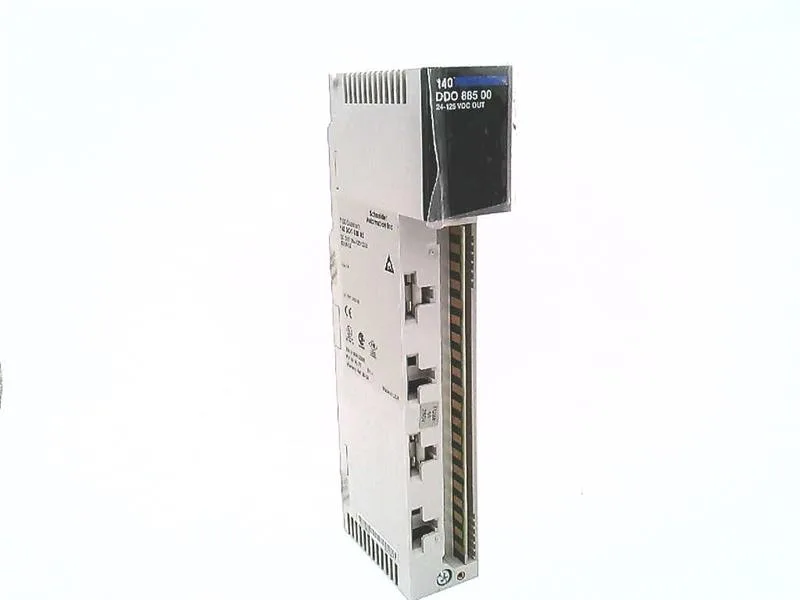

The 140-DDO-885-00 is a Modicon Quantum discrete output module from Schneider, providing 12 negative-logic (sink) outputs rated 24...125 V DC at 0.75 A per point, with internal short-circuit protection via a 4 A fuse per group. It carries CE marking and certifications to UL 508, CSA C22.2 No 142, and FM Class 1 Division 2, suiting it for both general industrial and hazardous-location panels.
