What this Quantum processor controls and how it connects

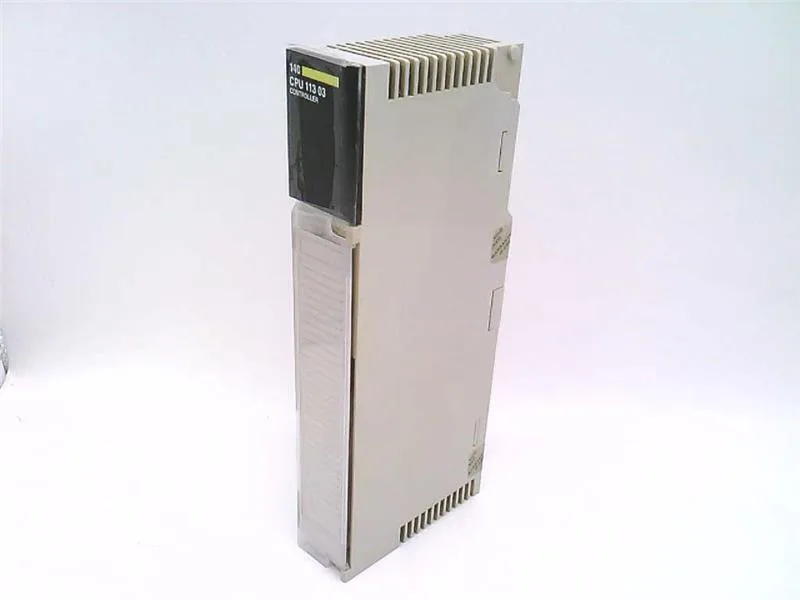

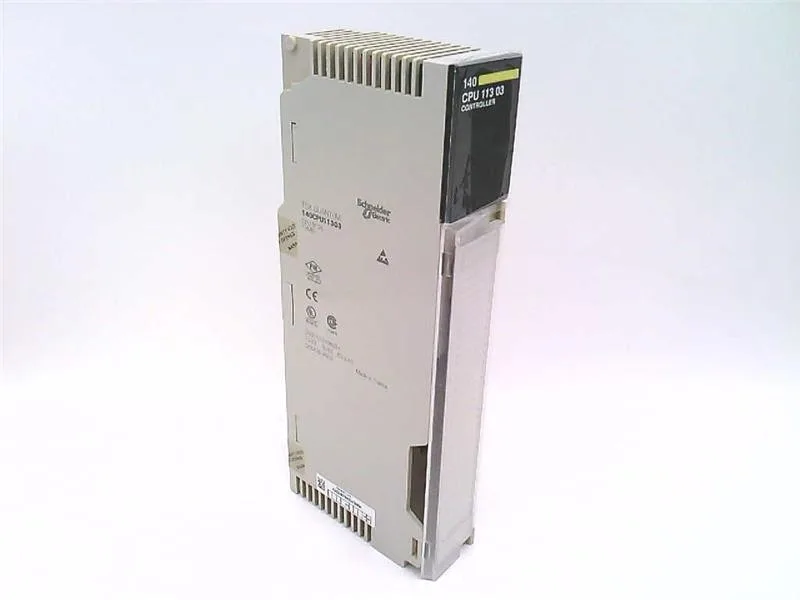

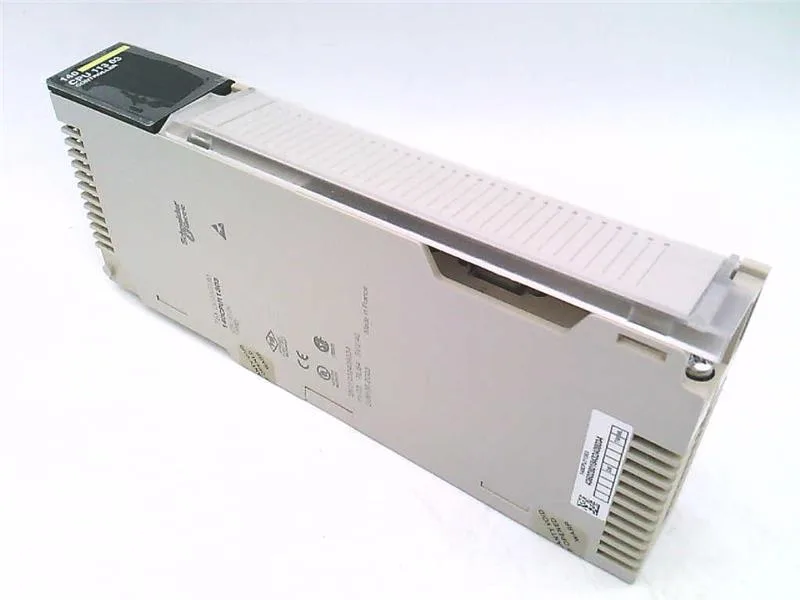

The 140CPU11303 is the brain of a Modicon Quantum automation platform rack, handling 30 input and 32 output distributed I/O words, with local capacity up to 64 I/64 O and remote expansion to 64 I/64 O per drop. It supports two remote networks and three distributed networks, with up to 31 remote drops and 63 distributed drops per network — enough for a medium-scale process line or machine cell. Communication runs through one Modbus RS232 port and one Modbus Plus port, which is the native Quantum peer-to-peer bus for controller-to-controller and HMI links.
Scan cycle and memory — what the 80186 delivers
A 20 MHz 80186 processor with 368 kB internal RAM executes LL984 instructions in 0.3 to 1.4 ms per 1 Kinstruction — the range depends on the mix of logic, math, and communication overhead in the application. The watchdog timer is set at 250 ms; if the scan cycle exceeds this window the processor faults, which forces the programmer to keep the logic lean or segment the task across multiple processors. Programming is done through ProWORX 32 or Concept — both are legacy environments that run on Windows-based engineering workstations and generate the LL984 instruction set native to this platform.
Cold storage and environmental fit
Rated for operation from 32 to 140 °F (0 to 60 °C) with storage down to -40 °F (-40 °C), the 140CPU11303 can live in an unheated electrical room adjacent to a freezer warehouse — the clock drift spec of ±8 s/day at those temperatures is acceptable for batch timing that does not require precision time-stamping. The lithium battery (1.2 Ah, 7 µA draw, 210 µA peak) holds the program and real-time clock for up to 10 years without external power — a practical fit for sites where the PLC may be de-energized during seasonal shutdowns. Relative humidity tolerance to 95% without condensation and an operating altitude up to 5000 m means this processor works in coastal refrigeration plants and high-altitude food processing facilities without derating.
Regulatory and compliance documentation
CE marked for the European market and listed under UL 508 and CSA C22.2 No 142 for North American industrial control panels — the processor carries the approvals needed for a dual-region machine build.
