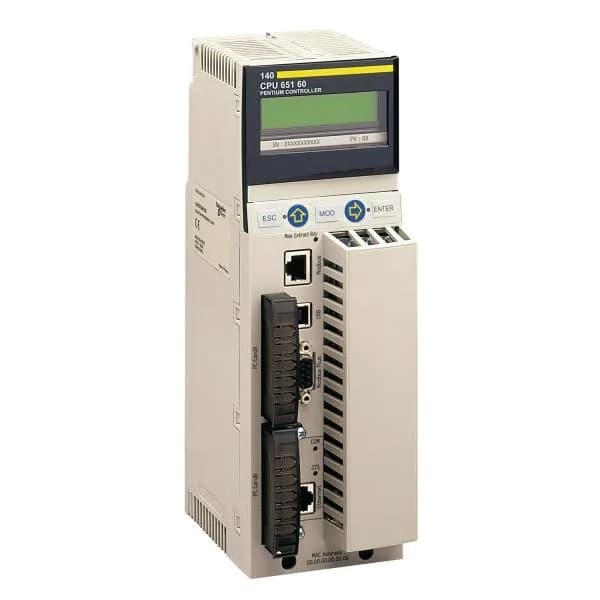

Schneider Electric 140CPU65160

Schneider 140CPU65160 Quantum Unity processor, 266 MHz, discontinued

MPN140CPU65160
Obsolete

Schneider 140CPU65160 Plc Expansion Modules — now discontinued, supplied from remaining surplus and broker stock.

$10,309.00 – $24,027.47Ref. price · indicative, final on quote
Schneider Electric 140CPU65160 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

140CPU65160 key specifications
ParameterValue
Range of productModicon Quantum automation platform
Product or component typeUnity processor
Integrated connection type1 Modbus Plus 1 Ethernet TCP/IP 1 Modbus 1 USB
Bus current requirement2760 mA
Clock frequency266 MHz
Communication serviceEthernet router
Electrical connection1 female connector SUB-D 9 for connecting to the Modbus Plus network 1 connector RJ45 for connecting Ethernet network 1 connector RJ45 for connecting Modbus bus
Maximum number of connections1 USB 2 AS-Interface - distributed 4 AS-Interface - remote 6 Ethernet TCP/IP - local 6 Modbus Plus - local 6 Profibus DP - local 1 Modbus RS232/485 Modbus/ASCII)
StandardsHazLoc
ChecksProcess control
CategoryUS1PC2118150
Number of racks2 - local

All specifications

140CPU65160 additional specifications
ParameterValue
Number of slots16 6 4 10 2
Switch functionKey switch memory port on/off
System overhead0.2 ms fast task 1 ms master task
Local signalling1 LED (green) for Ethernet activity (COM) 1 LED (red) for Ethernet collision
Memory descriptionExpandable 7168 kB - program with PCMCIA card Expandable 8 MB - file storage with PCMCIA card Internal RAM 1024 kB
Analogue i (O number)500 inputs, 500 outputs - distributed - per network Modbus Plus 1984 inputs,1984 outputs - S908 remote I/O Unlimited (26 slots max) - local Unlimited (31 drops of 28 slots max) - ethernet remote I/O
Discrete i (O number)31744 inputs, 31744 outputs - remote 8000 inputs, 8000 outputs - distributed - per network Modbus Plus Unlimited (26 slots max) - local Unlimited (31 drops of 28 slots max) - ethernet remote I/O
Application structure1 cyclic/periodic master task - 1 periodic fast task - 128 I/O interrupt tasks - 128 interrupt tasks - 32 timer interrupt tasks - 4 auxiliary tasks -
Application specific i (O)Accurate time stamping High-speed interrupt inputs Serial link Counter
Number of optional modules6 Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Number of remote i (O station)31 - 2 S908 remote I/O 31 - 2 ethernet Quantum remote I/O 16 - 2 ethernet X80 remote I/O
Number of instructions per10.28 Kinst/ms 100 % Boolean 10.07 Kinst/ms 65 % Boolean and 35 % numerical
Number of distributed i (O station)63 1 3 Modbus Plus

Product details

Overview

The 140CPU65160: Built-in connectivity includes one Modbus Plus, one Ethernet TCP/IP, one Modbus, and one USB port. The processor supports up to 6 Ethernet TCP/IP local connections and 6 Modbus Plus local connections.

Compared to the 140CPU67861, the 140CPU65160 has less internal RAM (1024 kB vs 11264 kB) and smaller program memory (7168 kB expandable vs 8 MB expandable). The 140CPU67861 also offers 1536 kB for data. For applications requiring larger memory or data handling, the 140CPU67861 is the higher-capacity choice.
