Schneider Electric 140CPU11302

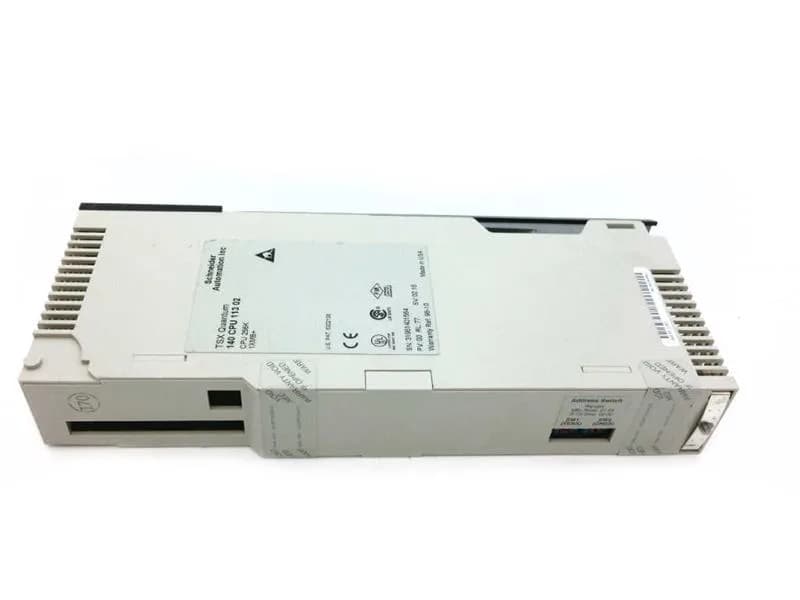

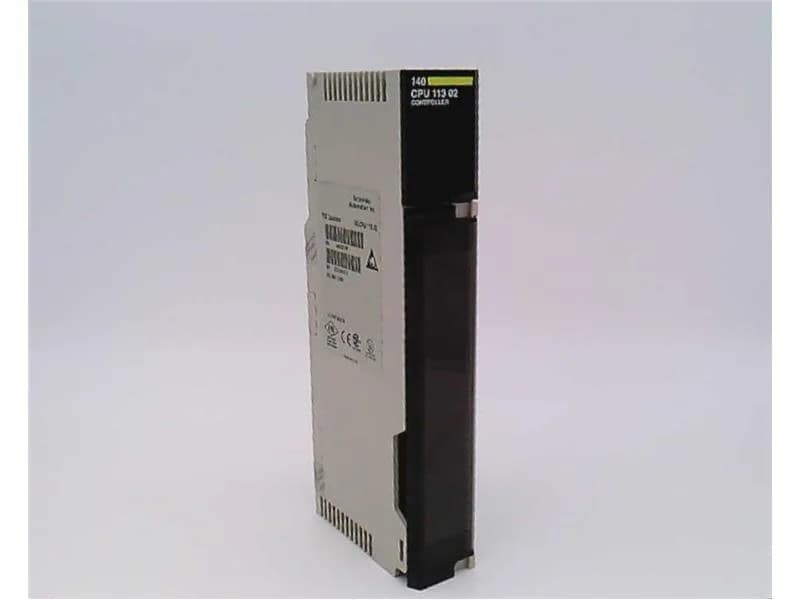

Schneider 140CPU11302 Modicon Quantum processor, 256 KB RAM

MPN140CPU11302
Obsolete

Schneider 140CPU11302 Plc Expansion Modules — now discontinued, supplied from remaining surplus and broker stock.

$789.00 – $844.36Ref. price · indicative, final on quote
Schneider Electric 140CPU11302 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

140CPU11302 key specifications
ParameterValue
Battery typeLithium 5 µA 110 µA
Range of productModicon Quantum automation platform
Product or component typeProcessor
Bus current requirement780 mA
Clock frequency20 MHz
Communication module processor capacity2 NOM, NOE, CR, NMS
Relative humidity95 % without condensation
Operating altitude<= 16404.2 ft (5000 m)
StandardsUL 508 CSA C22.2 No 142
MarkingCE
Category18150-QUANTUM CONTROLLERS,HSBY,COMM.
I (O words)30 I/32 O distributed 64 I/64 O max local 64 I/64 O remote

All specifications

140CPU11302 additional specifications
ParameterValue
Clock drift+/-8 s/day 32...140 °F (0...60 °C)
Battery life10 year(s)
Drops (network)63 distributed
Module formatStandard
Software nameProWORX 32 Concept
Number of port1 Modbus RS232 1 Modbus Plus
Processor name80186
Watchdog timer250 ms
Number of drops31 remote
Switch functionWithout key switch
Battery capacity1.2 Ah
I (O words, network)500 I/500 O distributed
Number of network2 remote 3 distributed
Memory descriptionInternal RAM 109 kB
Mathematical coprocessorWithout
Exact time for 1 kinstruction0.3...1.4 ms LL984
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80...2000 MHz IEC 801-3
Ambient air temperature for operation32...140 °F (0...60 °C)
Resistance to electrostatic discharge4 kV contact IEC 801-2 8 kV on air IEC 801-2

Product details

Overview

The 140CPU11302: Two serial ports — one Modbus RS232 and one Modbus Plus — connect the processor to the control network, supporting up to 63 distributed drops and 500 I/O words per network. The module draws 3.9 W from the Quantum backplane.

Integration

The processor mounts in a Quantum rack (PCE format) and is programmed via ProWORX 32 or Concept software. The onboard 3 V Lithium battery (1.2 Ah, 10-year life) retains RAM and real-time clock; expect a clock drift of ±8 s/day at 0...60 °C. Watchdog timer is set at 250 ms.

MPN
140CPU11302
