Schneider lists the 140DAI54300 as an active Modicon Quantum platform module. It carries CSA C22.2 No 142 and UL 508 standards compliance, plus California Proposition 65. For current lead time and quantity, submit an RFQ — the module is sourced through distribution and surplus channels as needed.

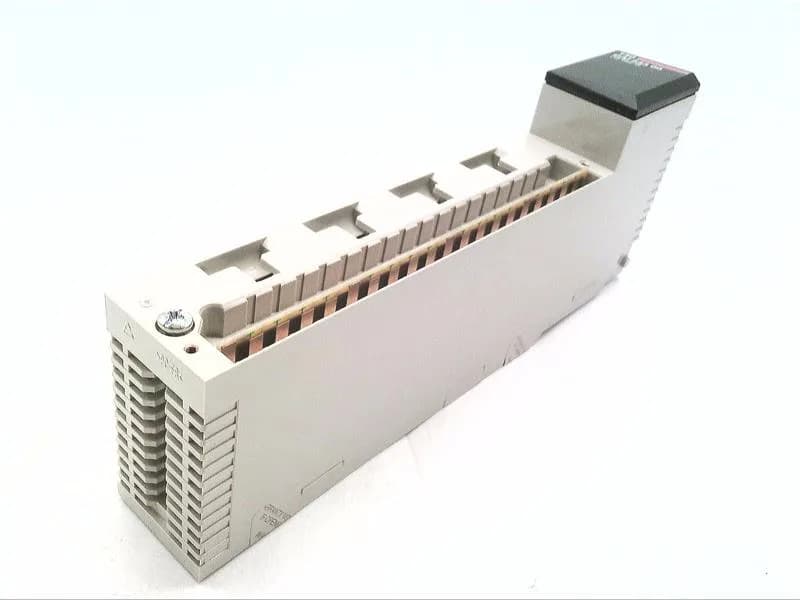

Schneider 140DAI54300 Modicon Quantum 16-point AC input module
MPN140DAI54300
End of Life
Schneider 140DAI54300 Servo Drives & Controls — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
$1,258.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon Quantum automation platform |
| Product or component type | VAC discrete input modules |
| Discrete input voltage | 115 V AC |
| Voltage state 0 guaranteed | 0...20 V AC 57...63 Hz 0...20 V AC 47...53 Hz |
| Voltage state 1 guaranteed | 79...132 V AC 57...63 Hz 85...132 V AC 47...53 Hz |
| Input current | 11.1 mA 57...63 Hz 13.2 mA 47...53 Hz |
| Bus current requirement | 180 mA |
| Maximum leakage current | 2.1 mA |
| Maximum power dissipation in | 5.5 W |
| Network frequency limits | 47...63 Hz |
| Response time | 4.9...0.75 ms x line cycle Off-On 7.3...12.3 ms On-Off |
| Relative humidity | 95 % without condensation |
All specifications
| Parameter | Value |
|---|---|
| Operating altitude | <= 16404.2 ft (5000 m) |
| Standards | CSA C22.2 No 142 UL 508 |
| Marking | CE |
| Category | US1PC2118155 |
| Module format | Standard |
| Software name | Unity Pro Concept ProWORX 32 |
| Input impedance | 12000 Ohm capacitive 57...63 Hz 14400 Ohm capacitive 47...53 Hz |
| Local signalling | 1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status |
| Group of channels | 2 |
| Discrete input number | 16 |
| Absolute maximum input | 132 V continuous 156 V 10 s 200 V 1 cycle |
| Addressing requirement | 1 input word |
| Isolation between group | 1780 Vrms for 1 minute |
| Isolation between group and bus | 1780 Vrms for 1 minute |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80...2000 MHz IEC 801-3 |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2 8 kV on air IEC 801-2 |
Product details
MPN
140DAI54300
