Schneider Electric 140DAO84210C

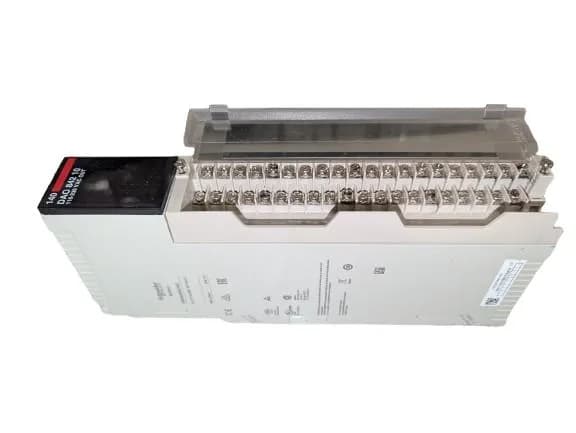

Schneider 140DAO84210C Modicon Quantum AC output module, 16-point, 4 A per outpu

MPN140DAO84210C
End of Life

Schneider 140DAO84210C Servo Drives & Controls — now discontinued, supplied from remaining surplus and broker stock.

$1,980.25 – $2,611.00Ref. price · indicative, final on quote
Schneider Electric 140DAO84210C datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

140DAO84210C key specifications
ParameterValue
Protection typeInternal output protection by 5 A fuse Internal by RC filter
Range of productModicon Quantum automation platform
Product or component typeAC discrete output modules
Maximum voltage drop1.5 V
Discrete output voltage83...253 V AC
Surge current10 A during 3 cycles per point 20 A during 2 cycles per point 30 A during 1 cycle per point 25 A during 3 cycles per group 30 A during 2 cycles per group 45 A during 1 cycle per group
Maximum load current2 mA rms 115 Vrms off state leakage per output 2.5 mA rms 230 Vrms off state leakage per output 3 A rms 170...253 V per output 4 A rms 85...132 V per output 16 A rms per module 4 A rms per group
Bus current requirement350 mA
Power dissipation1.85 + (1.1 V x total module load current)
Supply frequency47...63 Hz
Response time<= 0.5 ms at state 1 to state 0
Relative humidity95 % without condensation

All specifications

140DAO84210C additional specifications
ParameterValue
Operating altitude<= 16404.2 ft (5000 m)
StandardsUL 508 CSA C22.2 No 142
DV (dt)400 V/ms
MarkingCE
CategoryUS1PC2118155
Module formatStandard
Fault indicationBlown fuse Loss of field power
Local signalling1 LED (green) for bus communication is present (Active) 1 LED (red) for external fault detected (F) 16 LEDs (green) for input status
Group of channels4 groups of 4 channels
Protective treatmentConformal coating Humiseal 1A33
Addressing requirement1 output word
Discrete output number16
Absolute maximum output300 Vrms 10 s AC 400 Vrms 1 cycle AC
Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 4 kV (contact discharge) conforming to IEC 801-2 Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 801-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 801-3
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation32...140 °F (0...60 °C)

Product details

Overview

The 140DAO84210C is a Modicon Quantum AC discrete output module delivering 16 isolated outputs rated 4 A rms per output in the 85...132 V AC range and 3 A rms per output at 170...253 V AC, with a dv/dt of 400 V/ms. It occupies one output word of addressing and includes internal protection via a 5 A fuse and RC filter, plus conformal coating (Humiseal 1A33) for harsh environments.

Compared to the 140DAO84000C (16 groups of 1 channel, 1 mA rms off-state leakage at 24 Vrms), the 140DAO84210C handles higher per-output current — 4 A rms per output at 85...132 V vs the 140DAO84000C's lower current — and uses a 4-channel group architecture rather than fully isolated groups. Versus the 140DDO35300C (32-point DC output), the 140DAO84210C is built for AC loads with a higher absolute maximum output of 300 Vrms 10 s AC and 400 Vrms 1 cycle AC.
