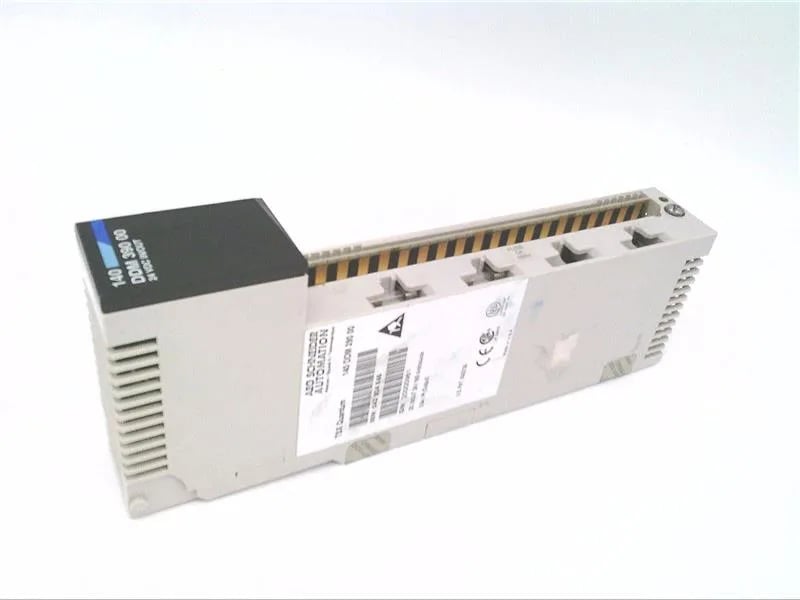

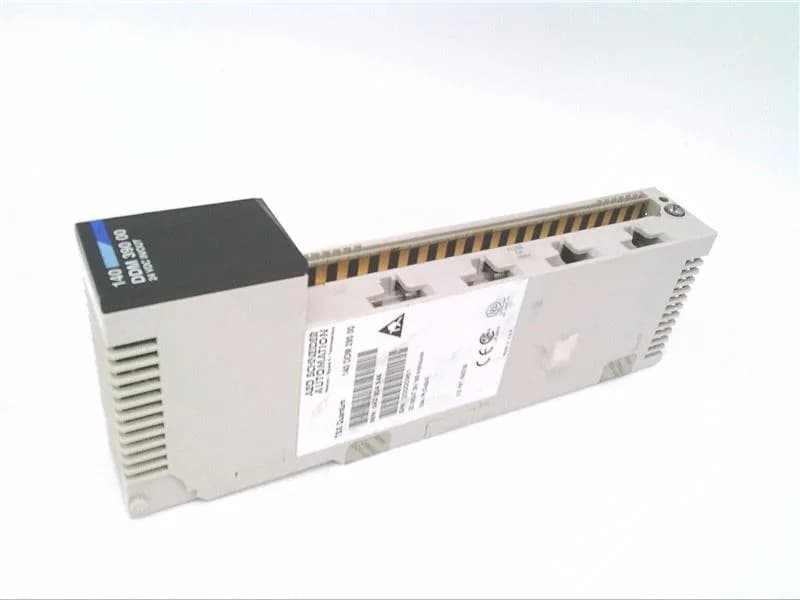

Schneider 140DDM39000 Modicon Quantum mixed I/O module, 16 inputs / 8 outputs

MPN140DDM39000
Obsolete

Schneider Electric Modicon Quantum 140DDM39000 discrete I/O module, 16 sink inputs (24 V DC, 2500 Ω impedance), 8 solid-state outputs (0.33 A), 4 A per module, 24 V DC bus, FM Class 1 Div 2, cUL, CE marked.

$1,432.00 – $2,883.29Ref. price · indicative, final on quote
Schneider Electric 140DDM39000 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

140DDM39000 key specifications
ParameterValue
Protection typeOn output by transient voltage suppression On input by resistor limited Internal output protection by 5 A fuse per group
Range of productModicon Quantum automation platform
Discrete output typeSolid state
Product or component typeMixed discrete I/O module
Input voltage limits30 V 56 V during 1.3 ms = 2 mA
Maximum voltage drop<0.4 V 0.5 A
Output voltage limits19.2...30 V DC typical 56 V DC during 1.3 ms
Discrete input voltage24 V DC
Discrete output voltage24 V
Maximum load current<= 4 A per module
Bus current requirement330 mA
Maximum leakage current0.4 mA 30 V DC

All specifications

140DDM39000 additional specifications
ParameterValue
Power dissipation1.75 W + (0.36 x input point on) + (1.1 total output load current)
Network frequency limits47...63 Hz
Response time on output<= 1 ms at state 1 to state 0
Relative humidity95 % without condensation
Operating altitude<= 16404.2 ft (5000 m)
StandardsCSA C22.2 No 142 UL 508 FM Class 1 Division 2
MarkingCE
CategoryUS1PC2118155
Input impedance2500 Ohm
Fault indicationBlown fuse on output Loss of field power on output
Local signalling1 LED (green) for bus communication is present (Active) 1 LED (red) for no voltage in output and input (F) 2 LEDs (green) for output is turned on 2 LEDs (red) for fault detected on the input point 2 LEDs (red) for fault detected on the output point
Discrete i (O number)24
Discrete input logicSink
Discrete input number16 2 groups of 8
Discrete output logicSink
Addressing requirement1 input word 0.5 output word
Associated fuse rating5 A per group
Discrete output number8 2 groups of 4
Absolute maximum output5 A during 500 µs per point
Isolation between group500 Vrms for 1 minute
Maximum load inductance500 mH 4 Hz
Maximum load capacitance50 µF
Isolation between group and bus1780 Vrms for 1 minute
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Resistance to electromagnetic fields9.1 V/m (10 V/m) 80...1000 MHz IEC 801-3
Ambient air temperature for operation32...140 °F (0...60 °C)
Resistance to electrostatic discharge4 kV contact IEC 801-2 8 kV on air IEC 801-2

Product details

Overview

The 140DDM39000 is a Modicon Quantum mixed discrete I/O module that packs 16 sink inputs and 8 solid-state outputs into a single slot, drawing 1.75 W from the 24 V DC backplane. Inputs are 24 V DC sink logic with a 2500 Ω impedance; outputs switch 0.33 A each, with the module limited to 4 A total. Transition from state 1 to state 0 takes ≤ 1 ms. It carries FM Class 1 Division 2, cUL, and CE marks, suiting it for hazardous locations and North American panel approvals.

Compared to the 140DDI35310, a 32-input pure input module, the 140DDM39000 trades half the input count for 8 integrated solid-state outputs, saving a slot in panels that need a small mix of I/O rather than dense input-only blocks.
