Schneider Electric 31191
MPN31191
Active

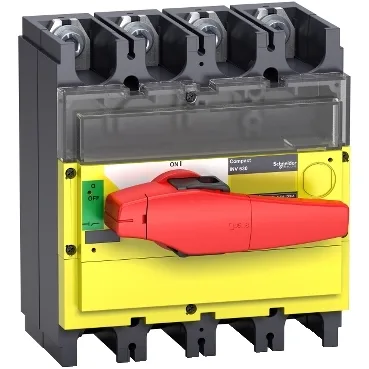

switch disconnector, Compact INV400, visible break, 400 A, with red rotary handle and yellow front, 4 poles
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Product name | Compact INV |
| Product range | ComPact |
| Product/component type | Switch disconnector |
| Parameter | Value |
|---|---|
| Poles configuration | 4P |
| Rated operational voltage (Ue) | 690 V AC 50/60 Hz 250 V DC |
| Rated insulation voltage (Ui) | 800 V AC 50/60 Hz |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Network type (AC/DC) | AC DC |
| Network frequency | 50/60 Hz |
| Parameter | Value |
|---|---|
| Suitability for isolation | Yes |
| Electrical durability (cycles) | AC-21A: 1000 cycles 440 V AC 50/60 Hz AC-21A: 1000 cycles 500 V AC 50/60 Hz AC-21A: 1000 cycles 690 V AC 50/60 Hz AC-22A: 1000 cycles 440 V AC 50/60 Hz AC-22A: 1000 cycles 500 V AC 50/60 Hz AC-22A: 1000 cycles 690 V AC 50/60 Hz AC-23A: 1000 cycles 440 V AC 50/60 Hz AC-23A: 1000 cycles 500 V AC 50/60 Hz AC-23A: 1000 cycles 690 V AC 50/60 Hz DC-21A: 1000 cycles 250 V DC DC-22A: 1000 cycles 250 V DC DC-23A: 1000 cycles 250 V DC |
| Mechanical durability (cycles) | 10000 cycles |
| Parameter | Value |
|---|---|
| Mounting support | Plate Rail |
| Mounting mode | Fixed |
| Control type | Rotary handle |
| Contact position indicator | Yes |
| Width | 185 mm |
| Height | 205 mm |
| Depth | 120 mm |
| Parameter | Value |
|---|---|
| Operating ambient temperature | -25...70 °C |
| Storage ambient temperature | -50...85 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| Standards | IEC 60947-3 IEC 60947-1 |
MPN
31191
