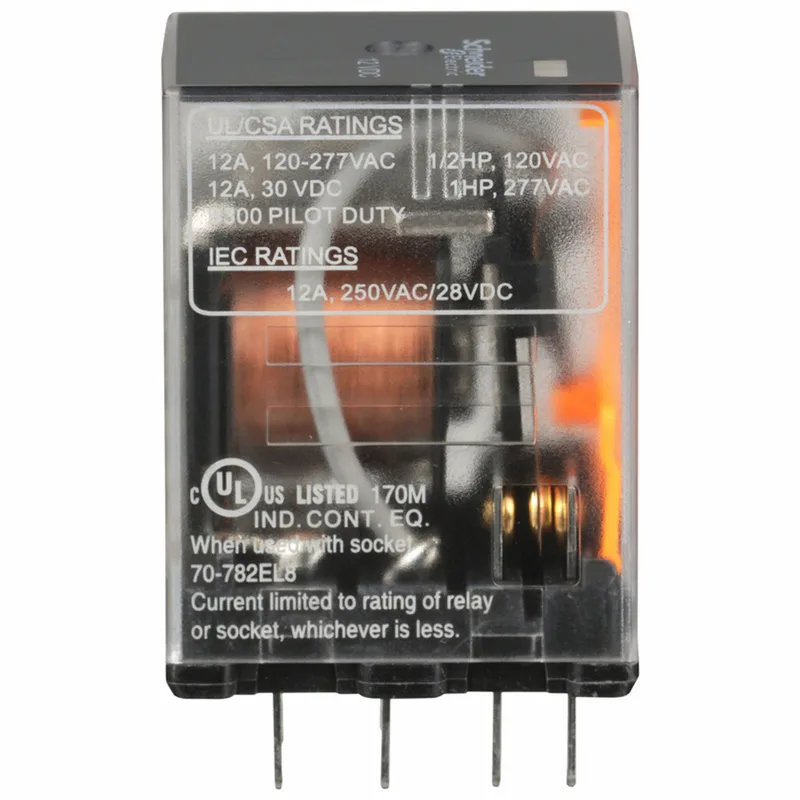

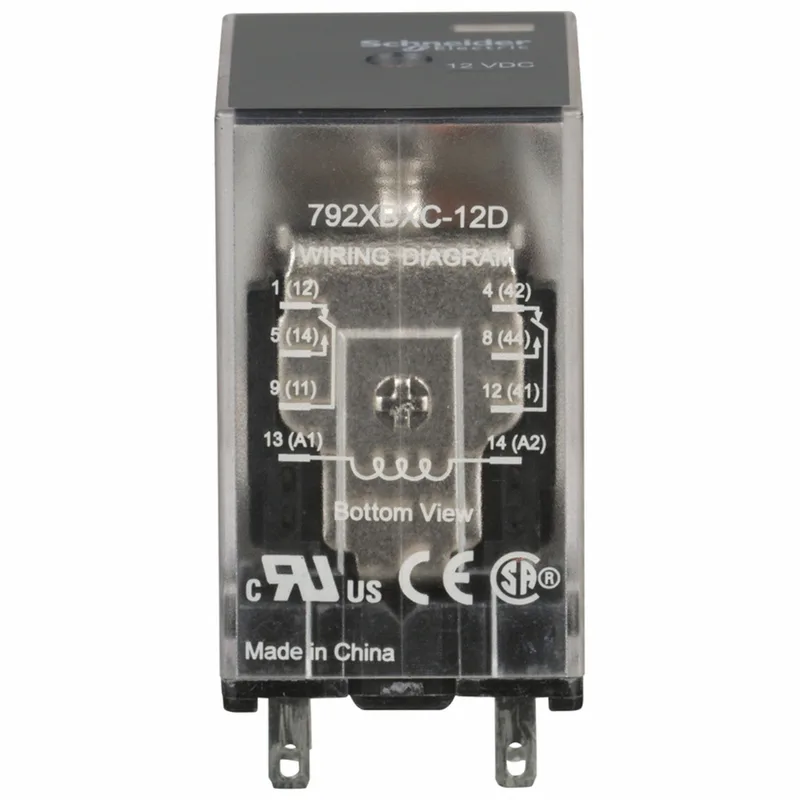

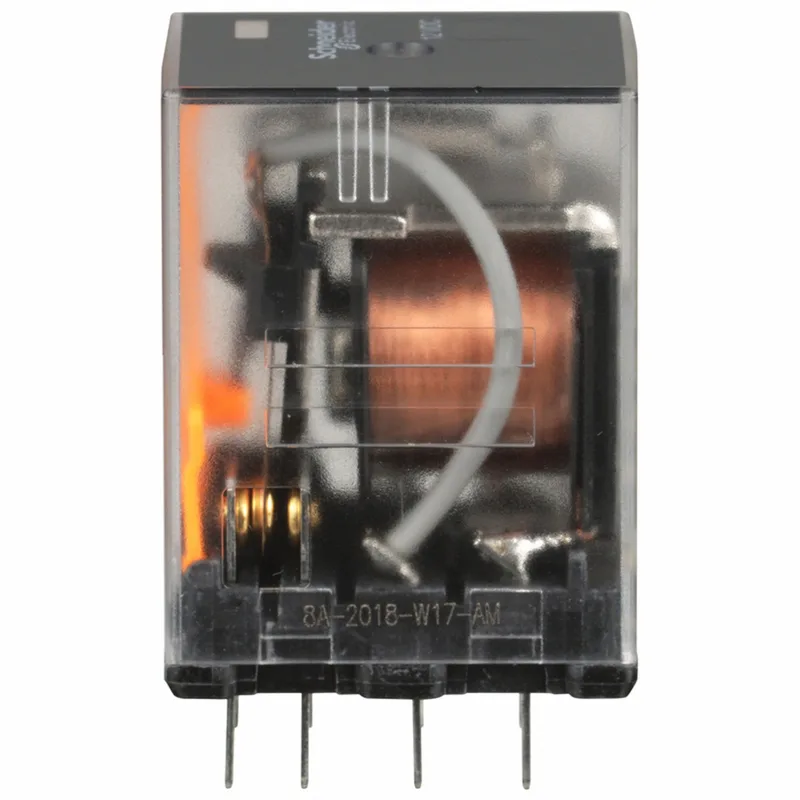

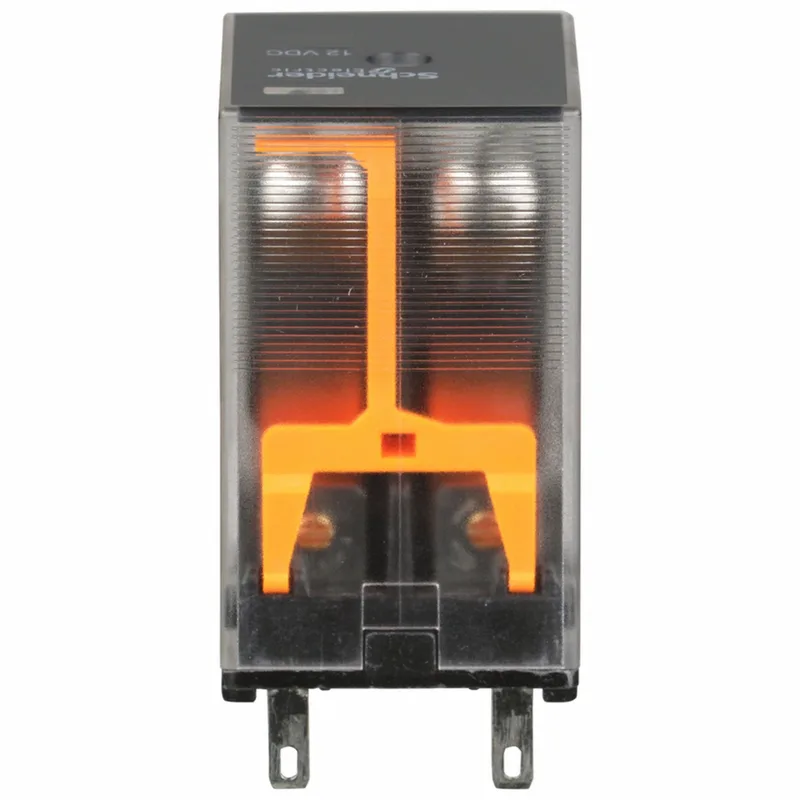

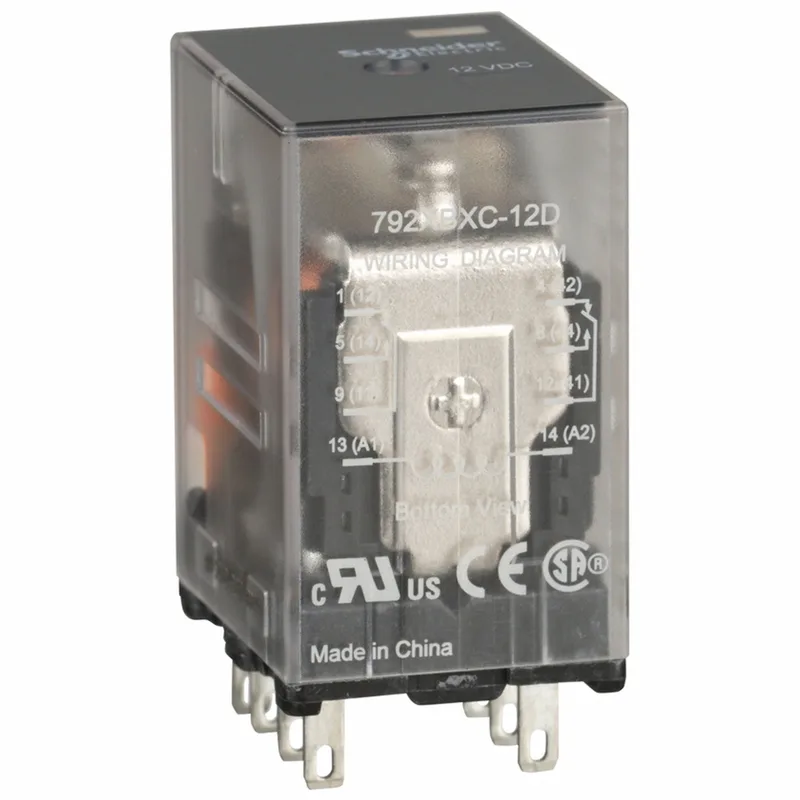

Schneider Electric 792XBXC-12D

Schneider Electric 792XBXC-12D

MPN792XBXC-12D
Obsolete

SCHNEIDER General Purpose Relay: Socket Mounted, 12 A Current Rating, 12V DC, 8 Pins/Terminals, DPDT

Schneider Electric 792XBXC-12D datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

792XBXC-12D key specifications
ParameterValue
Product typeRelay
Input voltage12 V DC
Voltage range0.8...1.1 Un AC/DC
Surge withstand duration1.2/50 µs
Maximum switching voltage300 V UL 300 V CSA 250 V IEC
Drop-out voltage threshold>= 0.15 Uc AC >= 0.1 Uc DC
Input current12 A
Minimum switching current10 mA 17 V
Rated operational current12 A at 277 V AC conforming to UL 12 A at 120 V AC conforming to UL 12 A at 30 V DC conforming to UL 12 A AC-1 (NO) conforming to IEC 6 A AC-1 (NC) conforming to IEC 12 A DC-1 (NO) conforming to IEC 6 A DC-1 (NC) conforming to IEC
Motor power0.5 hp 120 V AC 1 hp 277 V AC
Power consumption in0.8 W DC
MountingPanel DIN rail

All specifications

792XBXC-12D additional specifications
ParameterValue
Connections terminalsFaston connectors
Shock resistance10 gn in operation 30 gn not operating
Vibration resistance3 gn 35...150 Hz)operating +/- 1 mm 10...35 Hz)operating 5 gn 35...150 Hz)not operating +/- 1 mm 10...35 Hz)not operating
Depth1.07 in (27.2 mm)
Width0.8 in (21 mm)
Height1.4 in (34.8 mm)
Product weight1.3 oz (37 g)
Contacts materialSilver with gold flashed contacts
Electrical durability100000 cycles resistive
Mechanical durability10000000 cycles
CategoryUS10CP221127
Product rangeLegacy
Operating time25 ms 20 ms at maximum rated voltage
Coil resistance160 Ohm
Switch functionDPDT
Local signallingFlag
Contact composition2 NO + 2 NC
Dielectric strength2000 V AC between coil and contact 2000 V AC between poles 1300 V AC between contacts
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-40...131 °F (-40...55 °C)
