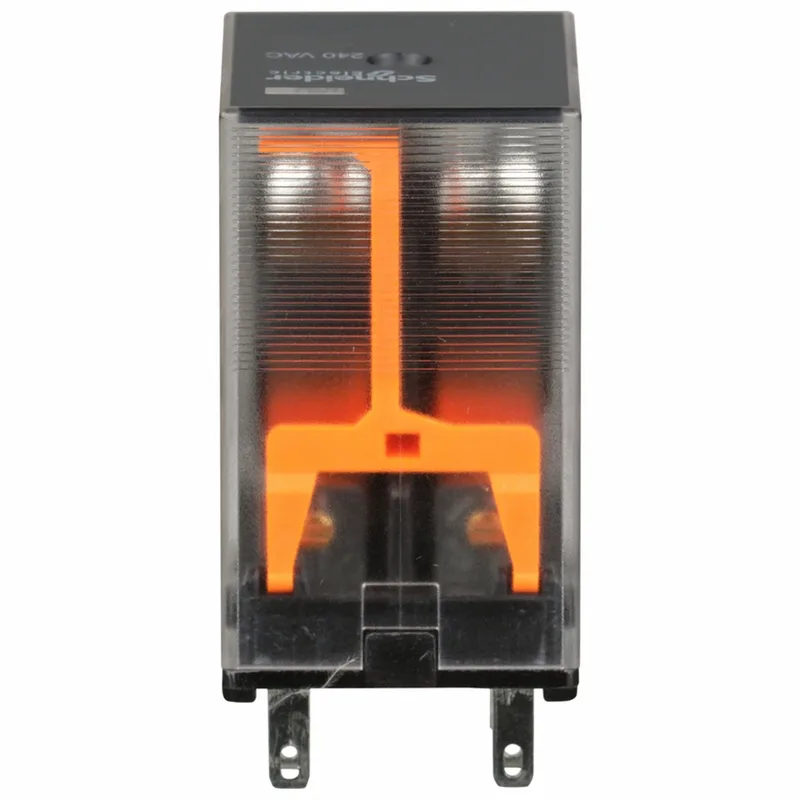

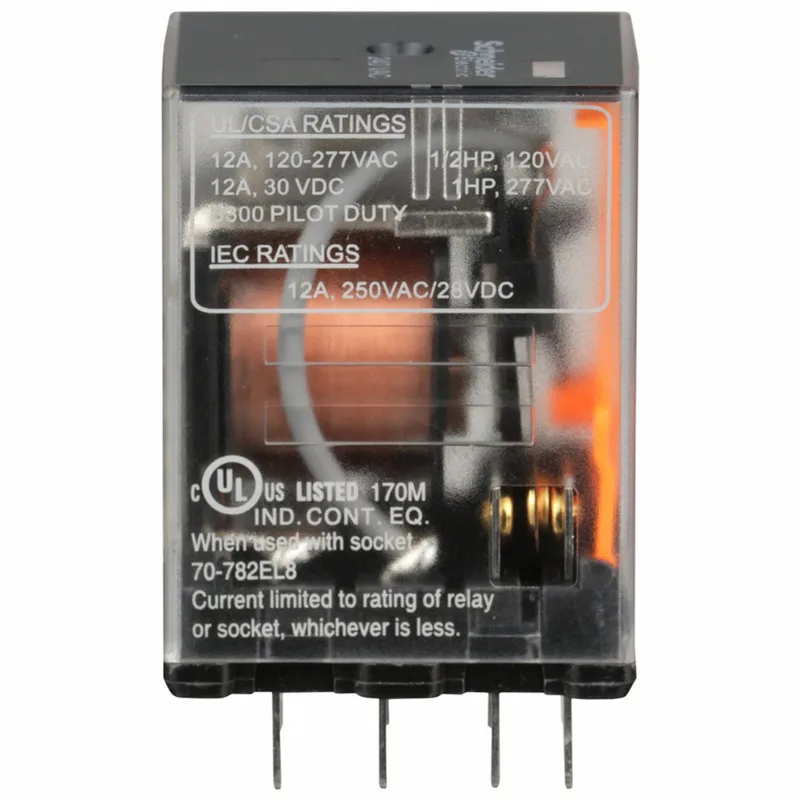

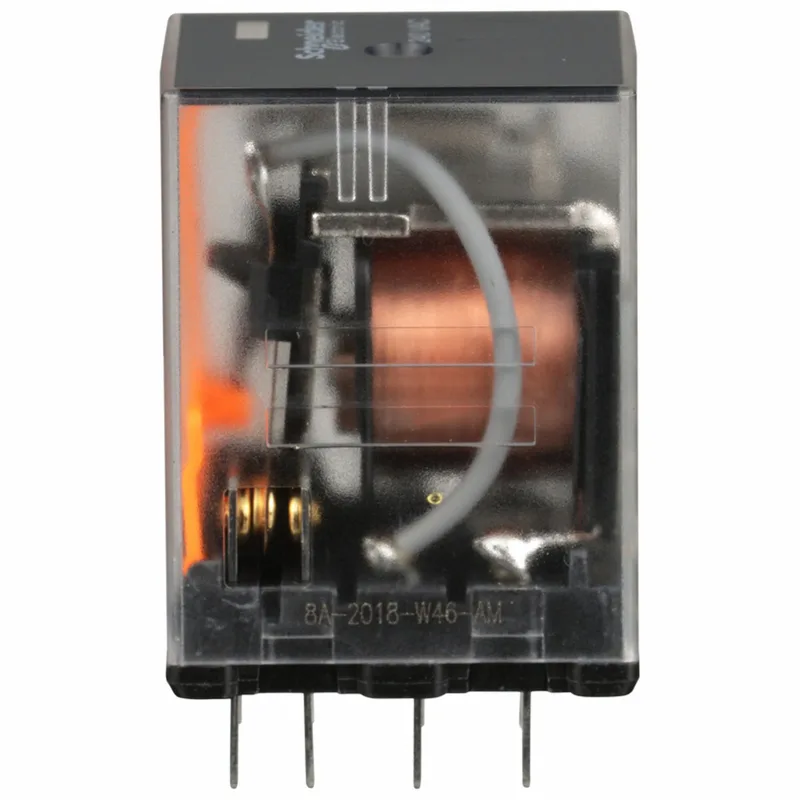

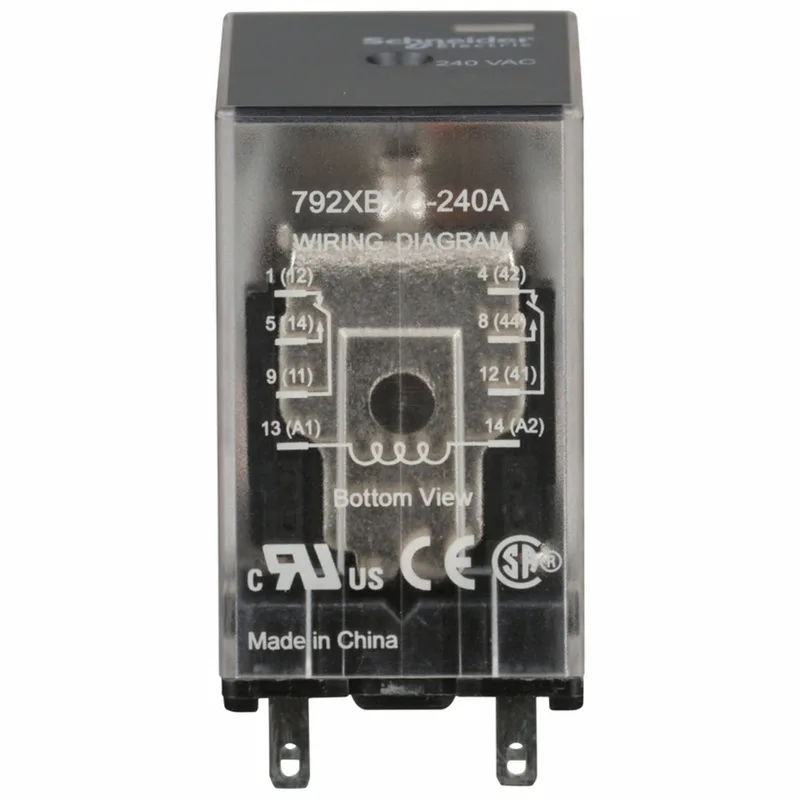

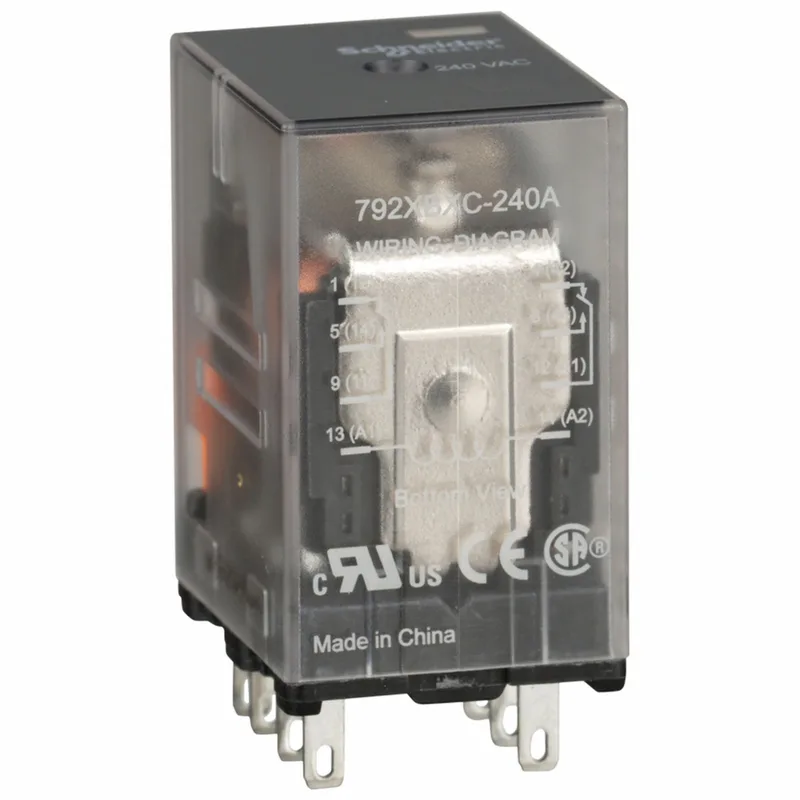

Schneider Electric 792XBXC-240A
MPN792XBXC-240A
Obsolete
SCHNEIDER General Purpose Relay: Socket Mounted, 12 A Current Rating, 240V AC, 8 Pins/Terminals
$19.09Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Relay |
| Input voltage | 240 V AC |
| Voltage range | 0.8...1.1 Un AC/DC |
| Surge withstand duration | 1.2/50 µs |
| Maximum switching voltage | 300 V UL 300 V CSA 250 V IEC |
| Drop-out voltage threshold | >= 0.15 Uc AC >= 0.1 Uc DC |
| Input current | 12 A |
| Minimum switching current | 10 mA 17 V |
| Rated operational current | 12 A at 277 V AC conforming to UL 12 A at 120 V AC conforming to UL 12 A at 30 V DC conforming to UL 12 A AC-1 (NO) conforming to IEC 6 A AC-1 (NC) conforming to IEC 12 A DC-1 (NO) conforming to IEC 6 A DC-1 (NC) conforming to IEC |
| Motor power | 0.5 hp 120 V AC 1 hp 277 V AC |
| Power consumption in | 1.2 VA AC |
| Mounting | Panel DIN rail |
All specifications
| Parameter | Value |
|---|---|
| Connections terminals | Faston connectors |
| Shock resistance | 10 gn in operation 30 gn not operating |
| Vibration resistance | 3 gn 35...150 Hz)operating +/- 1 mm 10...35 Hz)operating 5 gn 35...150 Hz)not operating +/- 1 mm 10...35 Hz)not operating |
| Depth | 1.07 in (27.2 mm) |
| Width | 0.8 in (21 mm) |
| Height | 1.4 in (34.8 mm) |
| Product weight | 1.3 oz (37 g) |
| Contacts material | Silver with gold flashed contacts |
| Electrical durability | 100000 cycles resistive |
| Mechanical durability | 10000000 cycles |
| Category | US10CP221127 |
| Product range | Legacy |
| Operating time | 25 ms 20 ms at maximum rated voltage |
| Coil resistance | 17720 Ohm |
| Switch function | DPDT |
| Local signalling | Flag |
| Contact composition | 2 NO + 2 NC |
| Dielectric strength | 2000 V AC between coil and contact 2000 V AC between poles 1300 V AC between contacts |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...131 °F (-40...55 °C) |
MPN
792XBXC-240A
