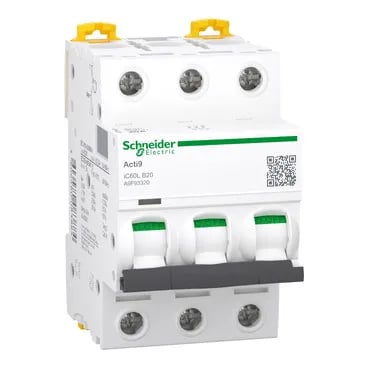

Schneider A9F93320 Acti 9 Miniature Circuit Breakers Mcbs — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC DC |
| Product or component type | Miniature circuit-breaker |
| Voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Ue] rated operational voltage | 12...133 V AC 50/60 Hz 220...240 V AC 50/60 Hz 380...415 V AC 50/60 Hz 440 V AC 50/60 Hz <= 180 V DC |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| Breaking capacity | 70 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 50 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 25 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 15000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| Current | 20 A |
| [Ics] rated service breaking capacity | 35 kA 50 % x Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 25 kA 50 % x Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 12.5 kA 50 % x Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA 50 % x Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA 100 % x Icu at <= 180 V DC conforming to EN/IEC 60947-2 |
| Network frequency | 50/60 Hz |
| Poles description | 3P |
| Number of protected poles | 3 |
| Parameter | Value |
|---|---|
| Utilisation category | Category A conforming to EN/IEC 60947-2 |
| IP degree of protection | IP20 conforming to IEC 60529 IP40 in modular enclosure (Insulation class II) conforming to IEC 60529 |
| Mounting mode | Clip-on Removable comb busbar installed |
| Mounting support | 35 mm DIN rail |
| Connection pitch | 18 mm between phases |
| Wire stripping length | 14 mm for top or bottom connection |
| Connections - terminals | Single terminal (top or bottom) , for 1 cable(s) , 1...25 mm², rigid, copper Single terminal (top or bottom) , for 1 cable(s) , 1...16 mm², flexible, copper Single terminal (top or bottom) , for 1 cable(s) , 1...16 mm², flexible with ferrule, copper Single terminal (top or bottom) , for 1.0 cable(s) , flexible, copper or aluminium, with ring terminal and accessory |
| Pollution degree | 3 conforming to EN/IEC 60947-2 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 0...2000 m |
| Depth | 78.5 mm |
| Width | 54 mm |
| Color | White |
| Height | 85 mm |
| Product weight | 0.375 kg |
| Electrical durability | 10000 cycles |
| Mechanical durability | 20000 cycles |
| Standards | EN/IEC 60947-2 EN/IEC 60898-1 |
| Range | Acti9 |
| Curve code | B |
| 9 mm pitches | 6 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Limitation class | 3 conforming to EN/IEC 60898-1 |
| Local signalling | Trip indicator |
| Device short name | iC60L |
| Tightening torque | 2 N.m top or bottom |
| Device application | Distribution |
| Overvoltage category | IV |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping limit | 4 x In +/- 20 % |
| Earth-leakage protection | Separate block |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 Yes conforming to EN/IEC 60898-1 |
| Contact position indicator | Yes |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -35...70 °C |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
The A9F93320 is a Schneider Acti9 iC60 miniature circuit breaker, 3-pole, rated 20 A with a B-curve trip characteristic and a 70 kA breaking capacity (Icu) per IEC 60947-2. It handles 133 V AC/DC networks and uses a thermal-magnetic trip unit. The part is in active production.
