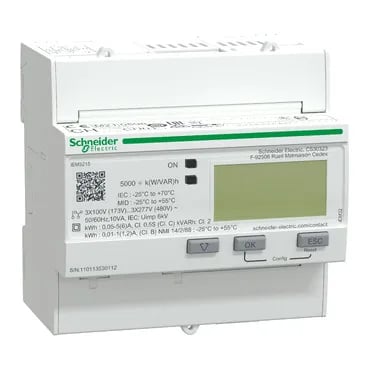

Schneider Electric A9MEM3215
MPNA9MEM3215
Active
iEM3215 energy meter - CT - multi-tariff
$200.12 – $539.47Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Input type | Current transformer 1 A or 5 A |
| Display type | LCD display |
| Technology type | Electronic |
| Range of product | Acti9 iEM3000 |
| Type of measurement | Active energy |
| Product or component type | Energy meter |
| Voltage | 100...277 V 173...480 V |
| Current | 1 A 5 A |
| Measurement current | 1...32767000 mA |
| Network frequency | 50 Hz 60 Hz |
| I/O channels | 2 digital 0...5 V/11...40 V 24 V DC |
| Poles description | 3P + N 1P + N 3P |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP40 front panel: conforming to IEC 60529 IP20 body: conforming to IEC 60529 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Connections - terminals | Current circuit: screw terminals 6 mm² cable(s) Voltage circuit: screw terminals 2.5 mm² cable(s) |
| Pollution degree | 2 |
| Relative humidity | 5...95 % at 50 °C |
| Operating altitude | < 3000 m |
| Depth | 69 mm |
| Width | 90 mm |
| Color | White |
| Height | 95 mm |
| Standards | BS EN 61557-12:2021 IEC 61557-12:2021 EN 61557-12:2021 BS EN 61326-1 IEC 61326-1 EN 61326-1 BS EN 62052-11:2020 IEC 62052-11:2020 EN 62052-11:2020 BS EN 62053-21 IEC 62053-21 EN 62053-21 BS EN 62052-22 IEC 62053-22:2020 EN 62052-22 BS EN 62052-23 IEC 62053-23:2020 EN 62052-23 BS EN 62052-31:2015 IEC 62052-31:2015 EN 62052-31:2015 BS EN 61010-1:2010 EN 61010-1:2010 IEC 61010-1:2010 UL 61010-1:2010 BS EN 61010-2-30 IEC 61010-2-30 EN 61010-2-30 UL 61010-2-30 BS EN 50470-3 EN 50470-3 BS EN 50470-1 EN 50470-1 ANSI C12.20 |
| Range | Acti9 |
| 9 mm pitches | 10 |
| Sample rate | 32 samples/cycle |
| Accuracy | Class 0.5S active energy conforming to IEC 62053-22 Class 0.5S active energy conforming to IEC 61557-12 Class C active energy conforming to EN 50470-3 |
| Market segment | Buildings small building cost management: billing: main incomer Buildings small building cost management: billing: sub feeder Buildings small building cost management: billing: panelboard Buildings medium building cost management: billing: main incomer Buildings medium building cost management: billing: sub feeder Buildings medium building cost management: billing: panelboard Buildings large building cost management: billing: main incomer Buildings large building cost management: billing: sub feeder Buildings large building cost management: billing: panelboard Buildings multi-site cost management: billing: main incomer Buildings multi-site cost management: billing: sub feeder Buildings multi-site cost management: billing: panelboard Data center cost management: billing Healthcare cost management: billing Industry cost management: billing Buildings small building cost management: cost allocation: main incomer Buildings small building cost management: cost allocation: sub feeder Buildings small building cost management: cost allocation: panelboard Buildings medium building cost management: cost allocation: main incomer Buildings medium building cost management: cost allocation: sub feeder Buildings medium building cost management: cost allocation: panelboard Buildings large building cost management: cost allocation: main incomer Buildings large building cost management: cost allocation: sub feeder Buildings large building cost management: cost allocation: panelboard Buildings multi-site cost management: cost allocation: main incomer Buildings multi-site cost management: cost allocation: sub feeder Buildings multi-site cost management: cost allocation: panelboard Data center cost management: cost allocation Healthcare cost management: cost allocation Industry cost management: cost allocation |
| Local signalling | Green indicator light: power ON Yellow flashing LED: accuracy checking |
| Device short name | iEM3215 |
| Compatibility code | IEM3215 |
| Device application | Multi-tariff Sub billing |
| Overvoltage category | III |
| Maximum value measured | 99999999 MWh |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -25...70 °C - IEC |
MPN
A9MEM3215
