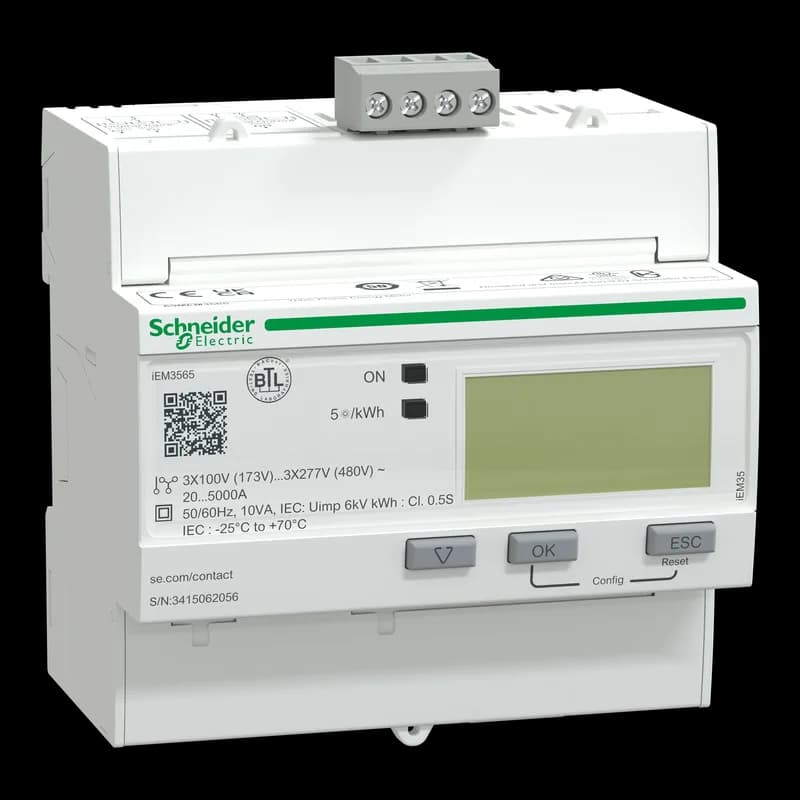

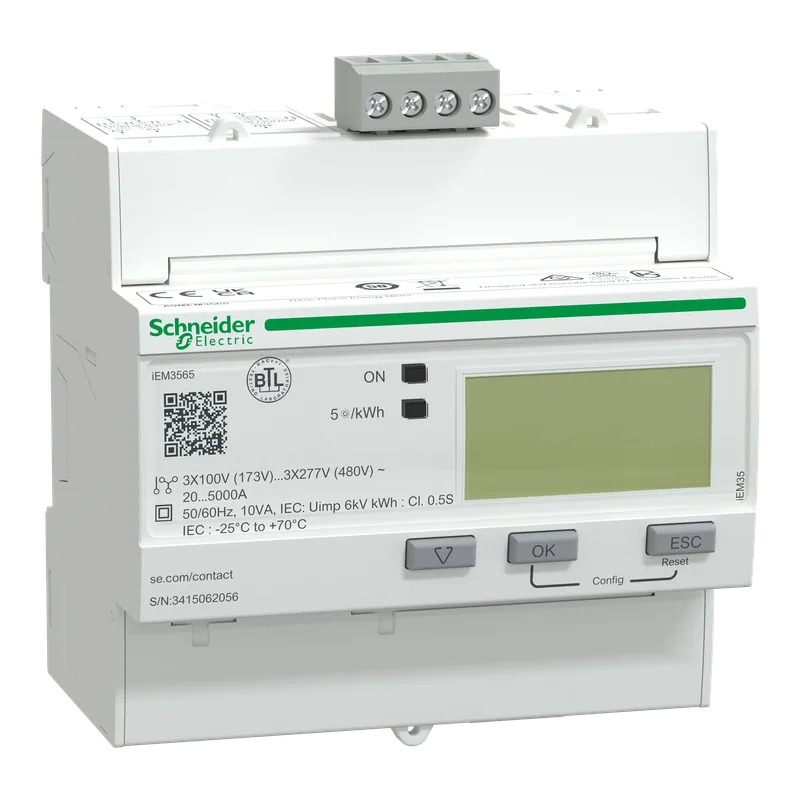

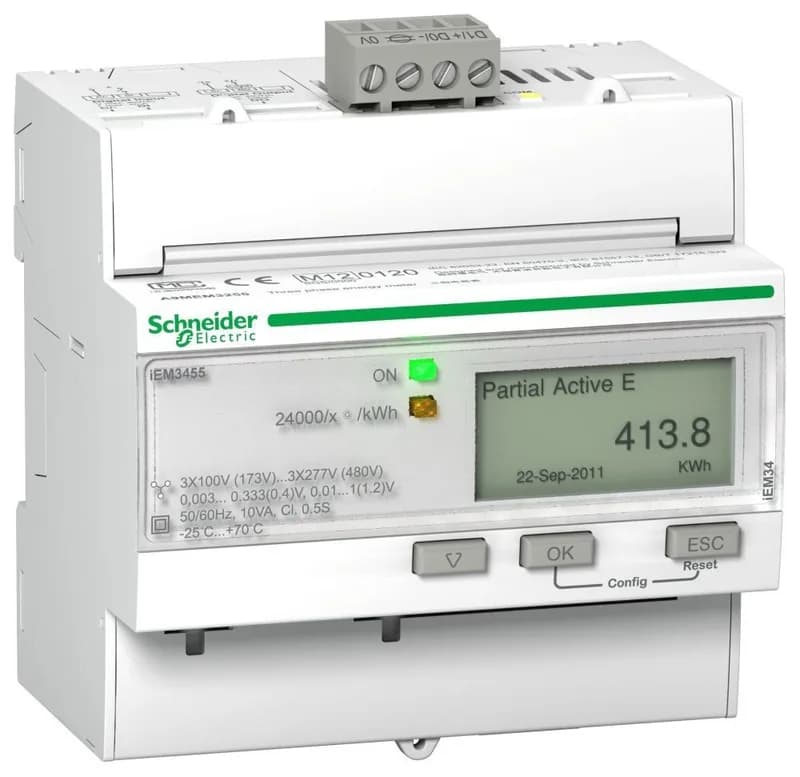

Schneider A9MEM3565 Three-Phase kWh Meter
MPNA9MEM3565
Active
Square D A9MEM3565 Triphase Kwh Meter|Square D A9MEM3565 Triphase Kwh Meter
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Input type | Rogowski coil 50...5000 A |
| Display type | LCD display |
| Metering type | Active, reactive, apparent energy (signed, four quadrant) |
| Technology type | Electronic |
| Range of product | Acti9 iEM3000 |
| Type of measurement | Active and reactive energy Active and reactive power Current Voltage |
| Product or component type | Energy meter |
| Voltage | 100...277 V +/- 20 % 173...480 V +/- 20 % |
| Output voltage | 5...40 V DC@50 mA |
| Measurement current | 50...5000 A |
| Network frequency | 50 Hz 60 Hz |
| I/O channels | 1 digital 0...5 V/11...40 V 24 V DC |
All specifications
| Parameter | Value |
|---|---|
| Poles description | 1P + N 3P + N 3P |
| IK degree of protection | IK08 |
| IP degree of protection | IP40 front panel: conforming to IEC 60529 IP20 body: conforming to IEC 60529 |
| Communication port support | Screw terminal block RS485 |
| Communication port protocol | BACnet 9.6, 19.2, 38.4, 57.6, 76.8 kbauds |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Wire stripping length | Input/output circuit: 0.2 in (6 mm) Voltage circuit: 0.3 in (8 mm) Current circuit: 0.3 in (8 mm) Communication: 0.3 in (7 mm) |
| Connections - terminals | Current circuit screw terminals 0.009 in² (6 mm²) Voltage circuit screw terminals 0.004 in² (2.5 mm²) Input/output circuit screw terminals 0.002 in² (1.5 mm²) Communication screw terminals 0.004 in² (2.5 mm²) |
| Pollution degree | 2 |
| Relative humidity | 5...95 % 97 °F (36 °C) |
| Operating altitude | < 9842.52 ft (3000 m) |
| Color | White |
| Depth | 2.7 in (69 mm) |
| Width | 3.5 in (90 mm) |
| Height | 3.4 in (87 mm) |
| Standards | BS EN 61326-1 IEC 61326-1 EN 61326-1 BS EN 61010-1:2010 EN 61010-1:2010 IEC 61010-1:2010 UL 61010-1:2010 BS EN 61010-2-30 IEC 61010-2-30 EN 61010-2-30 UL 61010-2-30 ANSI C12.20 |
| Range | Acti9 |
| Category | US10PL109786 |
| 9 mm pitches | 10 |
| Sample rate | 32 samples/cycle |
| Accuracy | Class 0.5S active energy IEC 62053-22 Class 0.5S active energy ANSI C12.20 |
| Market segment | Buildings small building cost management: billing: main incomer Buildings small building cost management: billing: sub feeder Buildings small building cost management: billing: panelboard Buildings medium building cost management: billing: main incomer Buildings medium building cost management: billing: sub feeder Buildings medium building cost management: billing: panelboard Buildings large building cost management: billing: main incomer Buildings large building cost management: billing: sub feeder Buildings large building cost management: billing: panelboard Buildings multi-site cost management: billing: main incomer Buildings multi-site cost management: billing: sub feeder Buildings multi-site cost management: billing: panelboard Data center cost management: billing Healthcare cost management: billing Industry cost management: billing Buildings small building cost management: cost allocation: main incomer Buildings small building cost management: cost allocation: sub feeder Buildings small building cost management: cost allocation: panelboard Buildings medium building cost management: cost allocation: main incomer Buildings medium building cost management: cost allocation: sub feeder Buildings medium building cost management: cost allocation: panelboard Buildings large building cost management: cost allocation: main incomer Buildings large building cost management: cost allocation: sub feeder Buildings large building cost management: cost allocation: panelboard Buildings multi-site cost management: cost allocation: main incomer Buildings multi-site cost management: cost allocation: sub feeder Buildings multi-site cost management: cost allocation: panelboard Data center cost management: cost allocation Healthcare cost management: cost allocation Industry cost management: cost allocation |
| Local signalling | Green indicator light power ON Yellow flashing LED accuracy checking alarm overload |
| Device short name | iEM3565 |
| Tightening torque | Input/output circuit: 4.4 lbf.in (0.5 N.m) Philips screwdriver Voltage circuit: 4.4 lbf.in (0.5 N.m) Philips screwdriver Current circuit: 7.08 lbf.in (0.8 N.m) pozidriv screwdriver Communication: 4.4 lbf.in (0.5 N.m) Philips screwdriver |
| Compatibility code | IEM3565 |
| Device application | Sub billing Partial meter Multi-tariff |
| Maximum value measured | 99999999.9 kWh 99999999 MWh |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -13...158 °F (-25...70 °C) - IEC |
MPN
A9MEM3565
