The A9N18467 is a 63 A, 3-pole C-curve miniature circuit breaker from the Acti9 C120 range, designed for distribution applications on AC networks. It carries dual standard certification to IEC 60898-1 and IEC 60947-2, yielding a 15 kA Icn at 400 V AC (EN/IEC 60898-1) and a 10 kA Icu at 440 V AC (EN/IEC 60947-2), plus 15 kA Icu at 380–415 V. The thermal-magnetic trip unit has a magnetic tripping limit of 5–10 x In, which makes it suitable for moderate inrush loads like lighting circuits or small motor starters. Clip-on mounting to 35 mm symmetrical DIN rail, tunnel terminals accepting up to 50 mm² rigid or 35 mm² flexible conductor.

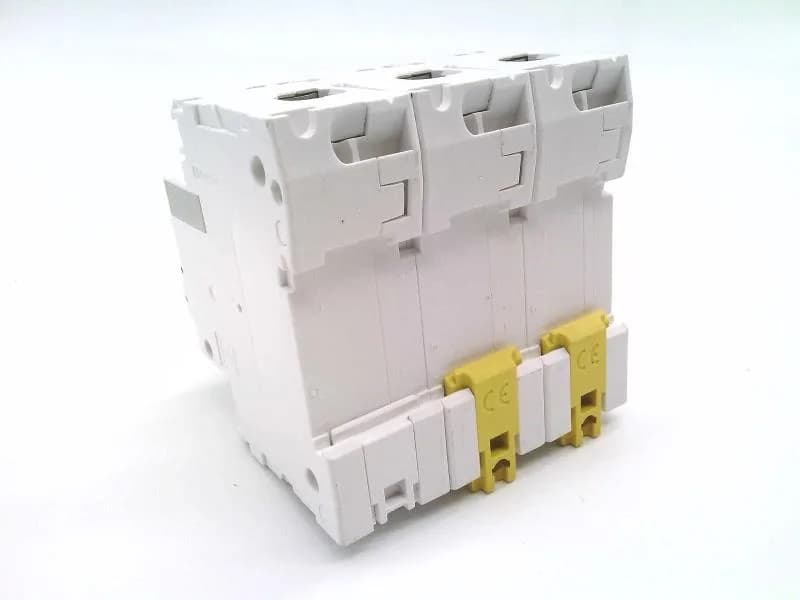

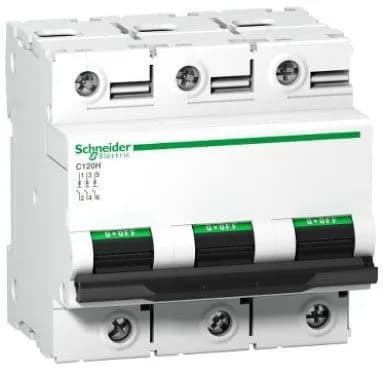

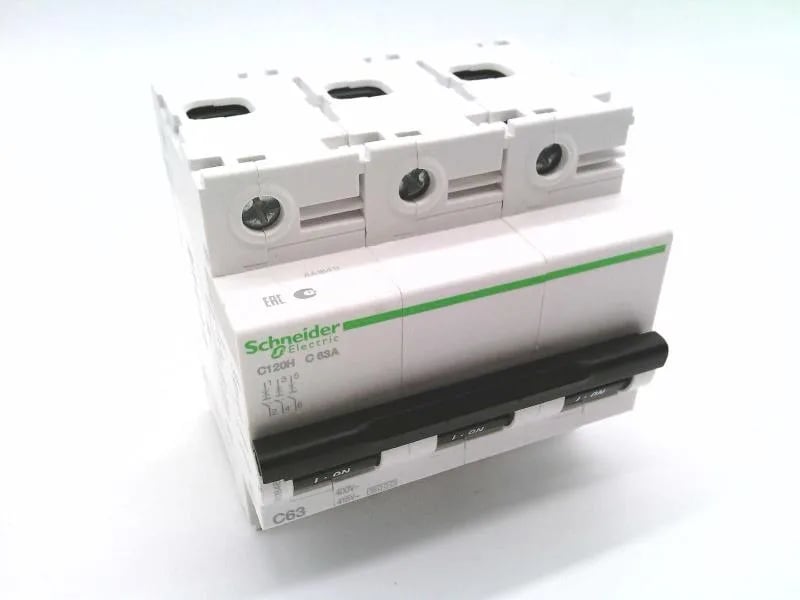

Schneider A9N18467 Acti9 C120 MCB, 63A 3P C-curve
MPNA9N18467
Active
Schneider Electric Acti9 C120 Series, Miniature Circuit Breaker, A9N18467, 63 A, 3 Poles, C Curve, 15 kA Icn at 400 V AC.
$203.20 – $378.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Product or component type | Miniature circuit-breaker |
| Voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Ue] rated operational voltage | 380...415 V AC 50/60 Hz 220...240 V AC 50/60 Hz 440 V AC 50/60 Hz 230...400 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| Breaking capacity | 15000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at <= 375 V DC conforming to EN/IEC 60947-2 |
| Current | 63 A at 30 °C |
| [Ics] rated service breaking capacity | 7500 A 50 % conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz 5 kA 50 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz 15 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 7.5 kA 50 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 15 kA 100 % conforming to EN/IEC 60947-2 - <= 375 V DC |
| Network frequency | 50/60 Hz |
| Poles description | 3P |
| Number of protected poles | 3 |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| Wire stripping length | 15 mm |
| Connections - terminals | Tunnel type terminals1...50 mm² rigid Tunnel type terminals1.5...35 mm² flexible |
| Pollution degree | 3 conforming to IEC 60947-2 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Depth | 73 mm |
| Width | 81 mm |
| Color | White |
| Height | 81 mm |
| Electrical durability | 10000 cycles conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Standards | EN/IEC 60898-1 EN/IEC 60947-2 |
| Range | Acti9 |
| Curve code | C |
| 9 mm pitches | 9 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Limitation class | 3 conforming to EN/IEC 60947-2 |
| Local signalling | ON/OFF indication |
| Device short name | C120H |
| Tightening torque | 3.5 N.m |
| Device application | Distribution |
| Overvoltage category | IV |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping limit | 5...10 x In |
| Earth-leakage protection | Separate block |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Contact position indicator | Yes |
| Locking options description | Handle sealable with cable diameter 0.7mm in OFF or ON position |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | -30...60 °C |
| Comb busbar and distribution block compatibility | YES |
Product details
Frequently asked questions
What compliance standards does the A9N18467 meet?
It complies with EN/IEC 60898-1 (household breaker standard) and EN/IEC 60947-2 (industrial breaker standard).
What is the breaking capacity at 400 V AC?
15,000 A Icn per IEC 60898-1 at 400 V AC 50/60 Hz.
