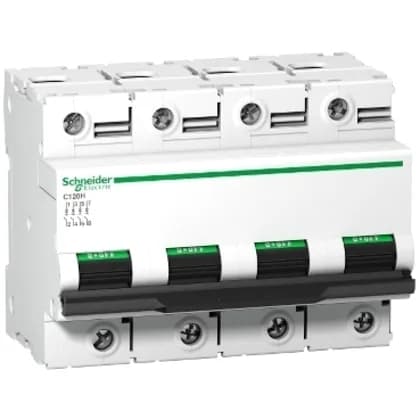

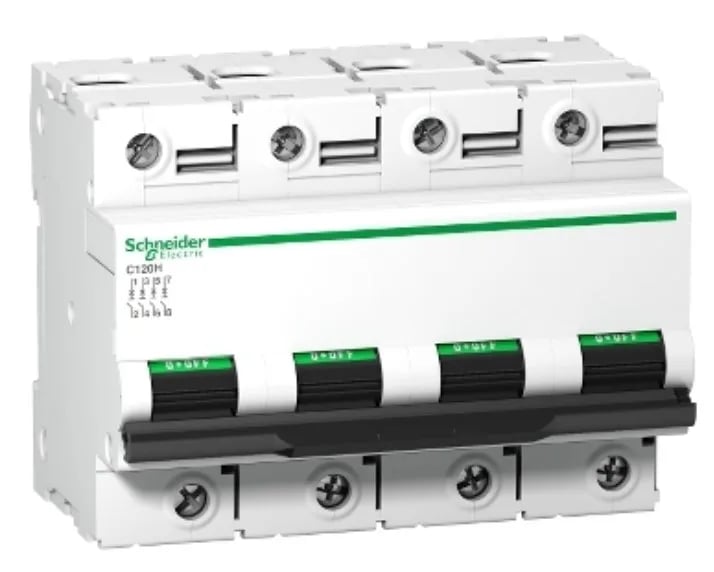

Schneider Electric Acti9 C120H series, miniature circuit breaker, 100A, 4-pole, C-curve, breaking capacity 15 kA Icn at 400 V AC.
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Product or component type | Miniature circuit-breaker |
| Voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Ue] rated operational voltage | 380...415 V AC 50/60 Hz 220...240 V AC 50/60 Hz 440 V AC 50/60 Hz 230...400 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| Breaking capacity | 15000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1 10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at <= 500 V DC conforming to EN/IEC 60947-2 |
| Current | 100 A at 30 °C |
| [Ics] rated service breaking capacity | 7500 A 50 % conforming to EN/IEC 60898-1 - 400 V AC 50/60 Hz 5 kA 50 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz 15 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 7.5 kA 50 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 15 kA 100 % conforming to EN/IEC 60947-2 - <= 500 V DC |
| Network frequency | 50/60 Hz |
| Poles description | 4P |
| Number of protected poles | 4 |
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| Wire stripping length | 15 mm |
| Connections - terminals | Tunnel type terminals1...50 mm² rigid Tunnel type terminals1.5...35 mm² flexible |
| Pollution degree | 3 conforming to IEC 60947-2 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Depth | 73 mm |
| Width | 108 mm |
| Color | White |
| Height | 81 mm |
| Electrical durability | 5000 cycles conforming to IEC 60947-2 |
| Mechanical durability | 20000 cycles |
| Standards | EN/IEC 60898-1 EN/IEC 60947-2 |
| Range | Acti9 |
| Curve code | C |
| 9 mm pitches | 12 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Limitation class | 3 conforming to EN/IEC 60947-2 |
| Local signalling | ON/OFF indication |
| Device short name | C120H |
| Tightening torque | 3.5 N.m |
| Device application | Distribution |
| Overvoltage category | IV |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping limit | 5...10 x In |
| Earth-leakage protection | Separate block |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Contact position indicator | Yes |
| Locking options description | Handle sealable with cable diameter 0.7mm in OFF or ON position |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | -30...60 °C |
| Comb busbar and distribution block compatibility | NO |
The A9N18480: Clips onto 35 mm symmetrical DIN rail. Tunnel terminals: 1…50 mm² rigid, 1.5…35 mm² flexible. Strip 15 mm, torque to 3.5 N·m. IP20, pollution degree 3, 2000 m altitude. Magnetic trip 5…10 x In. Standalone earth-leakage protection via separate block.
