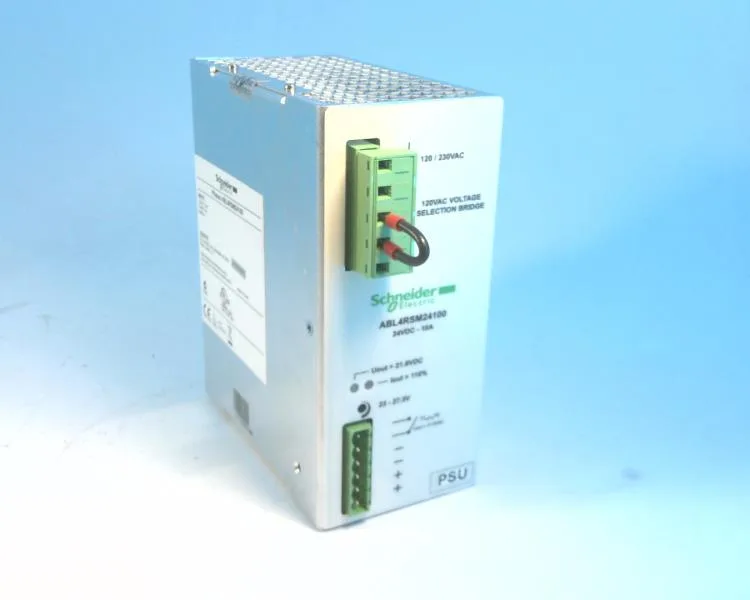

Schneider Electric ABL4RSM24100
MPNABL4RSM24100
Obsolete
Regulated Switch Power Supply, 1 or 2 phase, 120..230V AC, 24V, 10A
$192.21 – $564.12Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Modicon Power Supply |
| Power supply type | Regulated switch mode |
| Input protection type | Integrated fuse (not interchangeable) |
| Output protection type | Against short-circuits, protection technology: automatic reset Against overload, protection technology: 33 V Thermal Against overvoltage |
| Product or component type | Power supply |
| Output voltage | 24 V DC |
| Nominal input voltage | 120...230 V AC phase to phase, terminal(s): L1-L2 120...230 V AC single phase, terminal(s): N-L1 300...350 V DC |
| Output voltage adjustment | 96...114 % adjustable |
| Inrush current | 35 A |
| Current consumption | 2 A 230 V AC 3.4 A 120 V AC |
| Power supply output current | 10 A |
| Permissible temporary current boost | 1.5 x In (for 30 seconds) |
All specifications+17 ▾
| Parameter | Value |
|---|---|
| Power factor | 0.6 at 24 V DC |
| Rated power in | 240 W |
| Power dissipation in | 34 W 27 W |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting support | 35 x 15 mm symmetrical DIN rail 35 x 7.5 mm symmetrical DIN rail |
| Connections - terminals | Removable screw terminal block: 4 x 0.5...2 x 2.5 mm², (AWG 24...AWG 12) for output connection Removable screw terminal block: 2 x 0.2...2 x 2.5 mm², (AWG 24...AWG 12) for input connection Removable screw terminal block: 1 x 0.2...1 x 2.5 mm², (AWG 24...AWG 12) for input ground connection Removable screw terminal block: 2 x 0.2...2 x 2.5 mm², (AWG 24...AWG 12) for diagnostic relay Removable screw terminal block: 1 x 0.2...1 x 2.5 mm², (AWG 24...AWG 12) for voltage selection connection |
| Depth | 140 mm |
| Width | 63.5 mm |
| Height | 118 mm |
| Standards | CULus 508 EN/IEC 62368-1 |
| Supply | SELV conforming to IEC 60950-1 SELV conforming to IEC 60204-1 SELV conforming to IEC 60364-4-41 |
| Marking | CE |
| Efficiency | 90 % at 230 V AC 88 % at 120 V AC |
| Status LED | 1 LED (green) output voltage (> 21.6 V) 1 LED (red) overload |
| Output coupling | Parallel Series |
| Operating position | Vertical |
| Environmental characteristic | EMC conforming to EN 50081-1 EMC conforming to EN 50082-2 EMC conforming to IEC 61000-6-2 Safety conforming to EN/IEC 60950 |
MPN
ABL4RSM24100
