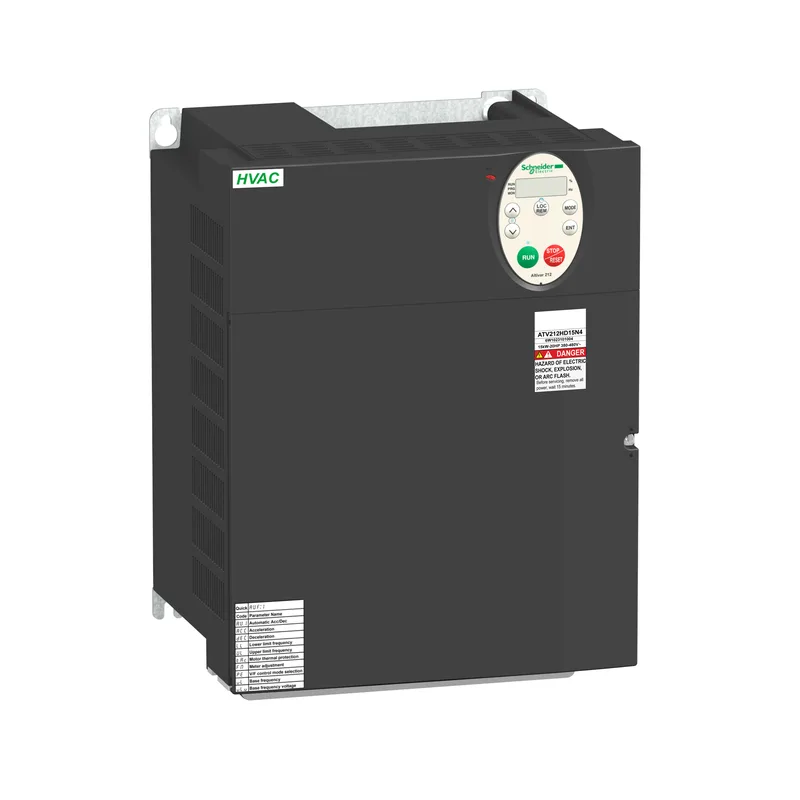

Schneider ATV212HD22N4S AC Drive
MPNATV212HD22N4S
Active
SQD ATV212HD22N4S SPEEDDRIVE|SQD ATV212HD22N4S SPEEDDRIVE
$2,525.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Connector type | 1 open style 1 RJ45 |
| Protection type | Overheating protection drive Thermal power stage drive Short-circuit between motor phases drive Input phase breaks drive Overcurrent between output phases and earth drive Overvoltages on the DC bus drive Break on the control circuit drive Against exceeding limit speed drive Line supply overvoltage and undervoltage drive Line supply undervoltage drive Against input phase loss drive Thermal protection motor Motor phase break motor With PTC probes motor |
| Range of product | Altivar 212 |
| Motor starter type | Variable speed drive |
| Analogue input type | VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable PTC probe 0...6 probes 1500 Ohm VIA switch-configurable current 0...20 mA 250 Ohm 10 bits |
| Type of polarization | No impedance |
| Product or component type | Variable speed drive |
| Output voltage | = 1 mOhm 500 V DC for 1 minute |
| Supply voltage limits | 323...528 V |
| Supply voltage | 380...480 V - 15...10 % |
| Line current | 41.1 A 380 V 32.6 A 480 V |
| Continuous output current | 43.5 A 380 V 43.5 A 460 V |
All specifications
| Parameter | Value |
|---|---|
| Maximum transient current | 47.9 A 60 s |
| Apparent power | 27.3 kVA 380 V |
| Motor power | 22 kW |
| Motor power range AC-3 | 15...25 kW 380...440 V 3 phase 15...25 kW 480...500 V 3 phase |
| Power dissipation in | 723 W |
| Maximum horse power rating | 30 hp |
| Supply frequency | 50...60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| Switching frequency | 6...16 kHz adjustable 8...16 kHz with derating factor |
| Frequency resolution | Display unit 0.1 Hz Analog input 0.024/50 Hz |
| Nominal switching frequency | 8 kHz |
| Speed drive output frequency | 0.5...200 Hz |
| Phases | 3 phase |
| IP degree of protection | IP20 on upper part without blanking plate on cover IEC 61800-5-1 IP20 on upper part without blanking plate on cover IEC 60529 IP21 IEC 61800-5-1 IP21 IEC 60529 IP41 on upper part IEC 61800-5-1 IP41 on upper part IEC 60529 |
| Physical interface | 2-wire RS 485 |
| Communication service | Read device identification (43) Monitoring inhibitable Time out setting from 0.1 to 100 s Read holding registers (03) 2 words maximum Write multiple registers (16) 2 words maximum Write single register (06) |
| Communication port protocol | APOGEE FLN Modbus LonWorks METASYS N2 BACnet |
| EMC filter | Class C2 EMC filter integrated |
| Pollution degree | 3 IEC 61800-5-1 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 5...95 % without condensation IEC 60068-2-3 5...95 % without dripping water IEC 60068-2-3 |
| Operating altitude | 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m <= 3280.84 ft (1000 m) without derating |
| Vibration resistance | 1.5 mm (f= 3...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to EN/IEC 60068-2-8 |
| Depth | 7.5 in (190 mm) |
| Width | 9.6 in (245 mm) |
| Height | 13.0 in (330 mm) |
| Standards | EN 55011 class A group 1 IEC 61800-3 environments 2 category C2 IEC 61800-3 environments 2 category C1 EN 61800-3 category C3 IEC 61800-3 environments 1 category C2 IEC 61800-3 category C2 IEC 61800-3 category C3 IEC 61800-5-1 IEC 61800-3 environments 1 category C1 IEC 61800-3 environments 1 category C1 UL Type 1 IEC 61800-3 IEC 61800-3 environments 1 category C2 IEC 61800-3 IEC 61800-3 environments 2 category C3 IEC 61800-3 environments 1 category C3 IEC 61800-3 category C2 IEC 61800-3 environments 2 category C3 IEC 61800-3 environments 2 category C1 IEC 61800-5-1 IEC 61800-3 environments 1 category C3 IEC 61800-3 environments 2 category C2 |
| Marking | CE |
| Air flow | 56533.8 Gal/hr(US) (214 m3/h) |
| Category | US1CP4D22157 |
| Data format | 8 bits, 1 stop, odd even or no configurable parity |
| Noise level | 59.9 dB 86/188/EEC |
| Option card | Communication card LonWorks |
| Speed range | 1...10 |
| Assembly style | With heat sink |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Regulation loop | Adjustable PI regulator |
| Torque accuracy | +/- 15 % |
| Local signalling | 1 LED (red) for DC bus energized |
| Device short name | ATV212 |
| Transmission rate | 9600 bps or 19200 bps |
| Operating position | Vertical +/- 10 degree |
| Transmission frame | RTU |
| Number of addresses | 1...247 |
| Product destination | Asynchronous motors |
| Prospective line isc | 22 kA |
| Transient overtorque | 120 % of nominal motor torque +/- 10 % 60 s |
| Analogue input number | 2 |
| Braking to standstill | By DC injection |
| Analogue output number | 1 |
| Discrete output number | 2 |
| Motor slip compensation | Adjustable Automatic whatever the load Not available in voltage/frequency ratio motor control |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 Classes 3S2 conforming to IEC 60721-3-3 |
| Product specific application | Pumps and fans in HVAC |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Asynchronous motor control profile | Voltage/frequency ratio, 2 points Voltage/frequency ratio, 5 points Voltage/frequency ratio - Energy Saving, quadratic U/f Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Flux vector control without sensor, standard |
| Acceleration and deceleration ramps | Linear adjustable separately from 0.01 to 3200 s Automatic based on the load |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...104 °F (-10...40 °C) (without derating) 104...122 °F (40...50 °C) (with derating factor) |
| Variable speed drive application selection | Building - HVAC compressor for scroll Building - HVAC fan Building - HVAC pump |
MPN
ATV212HD22N4S
