Schneider ATV212HD30M3X Altivar 212 AC Drive, 30 kW, 40 hp, 240 V

MPNATV212HD30M3X

Obsolete

Schneider ATV212HD30M3X Motor Drives — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$2,651.76 – $5,945.67Ref. price · indicative, final on quote

Add to RFQ

Schneider Electric ATV212HD30M3X datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ATV212HD30M3X key specifications
Parameter	Value
Connector type	1 RJ45 1 open style
Protection type	Overheating protection drive Thermal power stage drive Short-circuit between motor phases drive Input phase breaks drive Overcurrent between output phases and earth drive Overvoltages on the DC bus drive Break on the control circuit drive Against exceeding limit speed drive Line supply overvoltage and undervoltage drive Line supply undervoltage drive Against input phase loss drive Thermal protection motor Motor phase break motor With PTC probes motor
Range of product	Altivar 212
Motor starter type	Variable speed drive
Analogue input type	VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable PTC probe 0...6 probes 1500 Ohm VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Type of polarization	No impedance
Product or component type	Variable speed drive
Output voltage	= 1 mOhm 500 V DC for 1 minute
Supply voltage limits	170...264 V
Supply voltage	200...240 V - 15...10 %
Line current	113.3 A 200 V 89.5 A 240 V
Continuous output current	117 A 230 V

All specifications

ATV212HD30M3X additional specifications
Parameter	Value
Maximum transient current	128.7 A 60 s
Apparent power	44.6 kVA 240 V
Motor power	30 kW
Motor power range AC-3	30...50 kW 200...240 V 3 phase
Power dissipation in	1085 W
Maximum horse power rating	40 hp
Supply frequency	50...60 Hz - 5...5 %
Network frequency	47.5...63 Hz
Switching frequency	6...16 kHz adjustable 8...16 kHz with derating factor
Frequency resolution	Display unit 0.1 Hz Analog input 0.024/50 Hz
Nominal switching frequency	8 kHz
Speed drive output frequency	0.5...200 Hz
Phases	3 phase
IP degree of protection	IP20 on upper part without blanking plate on cover IEC 61800-5-1 IP20 on upper part without blanking plate on cover IEC 60529 IP21 IEC 61800-5-1 IP21 IEC 60529 IP41 on upper part IEC 61800-5-1 IP41 on upper part IEC 60529
Physical interface	2-wire RS 485
Communication service	Write multiple registers (16) 2 words maximum Monitoring inhibitable Time out setting from 0.1 to 100 s Read holding registers (03) 2 words maximum Read device identification (43) Write single register (06)
Communication port protocol	METASYS N2 APOGEE FLN BACnet LonWorks Modbus
EMC filter	Without EMC filter
Pollution degree	3 IEC 61800-5-1
Shock resistance	15 gn 11 ms IEC 60068-2-27
Relative humidity	5...95 % without condensation IEC 60068-2-3 5...95 % without dripping water IEC 60068-2-3
Operating altitude	3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m <= 3280.84 ft (1000 m) without derating
Vibration resistance	1.5 mm (f= 3...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to EN/IEC 60068-2-8
Depth	11.4 in (290 mm)
Width	12.6 in (320 mm)
Height	24.8 in (630 mm)
Standards	IEC 61800-3 environments 2 category C1 IEC 61800-3 environments 2 category C2 IEC 61800-3 environments 1 category C2 IEC 61800-3 IEC 61800-5-1 IEC 61800-3 environments 1 category C3 IEC 61800-3 environments 1 category C1 UL Type 1 IEC 61800-3 environments 1 category C2 IEC 61800-3 environments 1 category C1 IEC 61800-3 environments 2 category C3 IEC 61800-3 environments 2 category C1 IEC 61800-3 environments 1 category C3 IEC 61800-3 IEC 61800-3 environments 2 category C3 IEC 61800-3 environments 2 category C2 IEC 61800-5-1
Marking	CE
Air flow	98009.6 Gal/hr(US) (371 m3/h)
Category	US1CP4D22156
Data format	8 bits, 1 stop, odd even or no configurable parity
Noise level	63.7 dB 86/188/EEC
Option card	Communication card LonWorks
Speed range	1...10
Assembly style	With heat sink
Speed accuracy	+/- 10 % of nominal slip 0.2 Tn to Tn
Regulation loop	Adjustable PI regulator
Torque accuracy	+/- 15 %
Local signalling	1 LED (red) for DC bus energized
Device short name	ATV212
Transmission rate	9600 bps or 19200 bps
Operating position	Vertical +/- 10 degree
Transmission frame	RTU
Number of addresses	1...247
Product destination	Asynchronous motors
Prospective line isc	22 kA
Specific application	HVAC
Transient overtorque	120 % of nominal motor torque +/- 10 % 60 s
Analogue input number	2
Braking to standstill	By DC injection
Analogue output number	1
Discrete output number	2
Motor slip compensation	Not available in voltage/frequency ratio motor control Adjustable Automatic whatever the load
Environmental characteristic	Classes 3C1 conforming to IEC 60721-3-3 Classes 3S2 conforming to IEC 60721-3-3
Product specific application	Pumps and fans in HVAC
Electromagnetic compatibility	Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Asynchronous motor control profile	Voltage/frequency ratio, 2 points Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor, standard Voltage/frequency ratio, 5 points
Acceleration and deceleration ramps	Automatic based on the load Linear adjustable separately from 0.01 to 3200 s
Ambient air temperature for storage	-13...158 °F (-25...70 °C)
Ambient air temperature for operation	14...104 °F (-10...40 °C) (without derating) 104...122 °F (40...50 °C) (with derating factor)
Variable speed drive application selection	Building - HVAC compressor for scroll Building - HVAC fan Building - HVAC pump

Product details

Overview

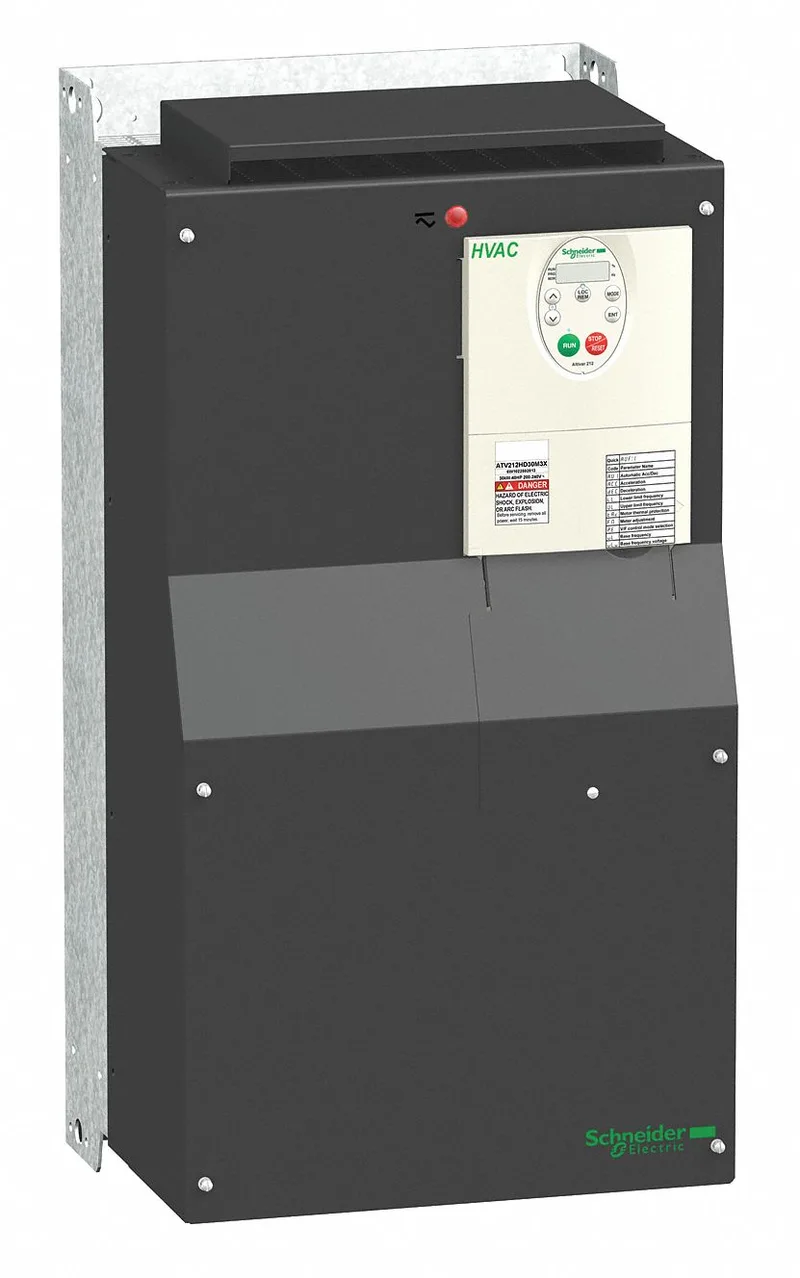

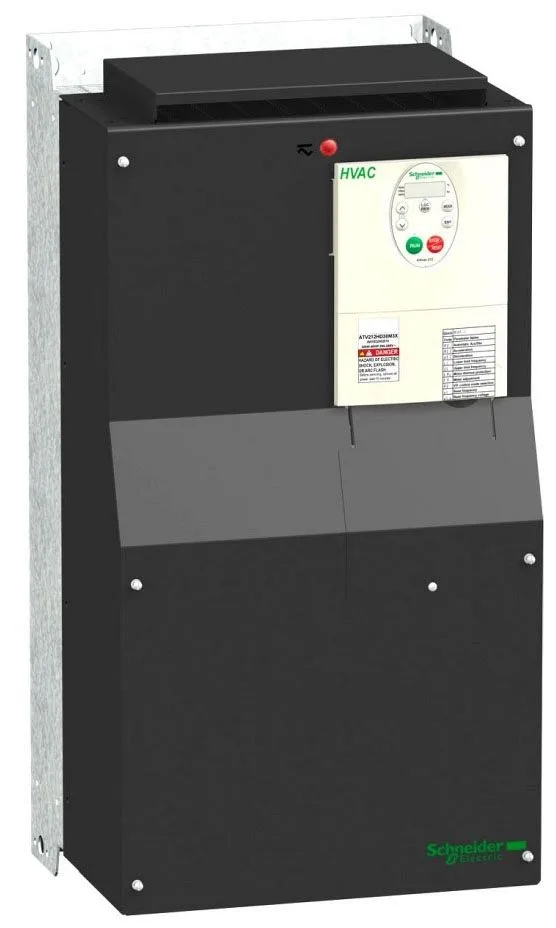

The ATV212HD30M3X is a Schneider Altivar 212 adjustable frequency AC drive rated at 30 kW / 40 hp on a 240 V AC 3-phase input, delivering 117 A output current. It carries an IP21 enclosure and is built with a heat sink for thermal management, making it a direct-fit unit for 240 V motor control applications in the Altivar 212 line.

The drive supports multiple fieldbus protocols including BACnet, LonWorks, Modbus, and Metasys N2 / Apogee FLN, allowing direct integration into building management or industrial control networks without an external gateway. Analog inputs are configurable for 0–10 V DC or 0–20 mA signals, and the drive provides one analog output plus two discrete outputs for feedback or status. Control is via keypad or logic inputs, with an LED display for parameter viewing and adjustment. The drive is rated for 60 Hz operation and includes a built-in PTC probe input for motor thermal protection.

Applications

Altivar 212 drives of this power class are commonly specified for variable-torque loads such as centrifugal pumps, fans, and blowers in HVAC, water treatment, and industrial ventilation systems. The constant-torque capability also suits light conveyor and mixer applications where speed regulation improves process control and energy efficiency.

The ATV212HD30M3X carries CE marking and is certified to IEC 61800-5-1 and IEC 61800-3 for EMC environments 1 and 2, categories C1 through C3, as well as UL Type 1. It also complies with California Proposition 65. No official end-of-life notice is in the evidence; the drive remains a current catalog item in the Altivar 212 series. For sourcing, submit an RFQ to confirm lead time and availability.
