Schneider ATV212W075N4 Motor Drives — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Connector type | 1 open style 1 RJ45 |
| Protection type | Overheating protection drive Thermal power stage drive Short-circuit between motor phases drive Input phase breaks drive Overcurrent between output phases and earth drive Overvoltages on the DC bus drive Break on the control circuit drive Against exceeding limit speed drive Line supply overvoltage and undervoltage drive Line supply undervoltage drive Against input phase loss drive Thermal protection motor Motor phase break motor With PTC probes motor |
| Range of product | Altivar 212 |
| Analogue input type | VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable PTC probe 0...6 probes 1500 Ohm VIA switch-configurable current 0...20 mA 250 Ohm 10 bits |
| Type of polarization | No impedance |
| Product or component type | Variable speed drive |
| Output voltage | = 1 mOhm 500 V DC for 1 minute |
| Supply voltage limits | 323...528 V |
| Supply voltage | 380...480 V - 15...10 % |
| Line current | 1.4 A 480 V 1.7 A 380 V |
| Continuous output current | 2.2 A 380 V 2.2 A 460 V |
| Maximum transient current | 2.4 A 60 s |
| Parameter | Value |
|---|---|
| Apparent power | 1.6 kVA 380 V |
| Motor power | 0.75 kW |
| Maximum horse power rating | 1 hp |
| Supply frequency | 50...60 Hz - 5...5 % |
| Network frequency | 47.5...63 Hz |
| Switching frequency | 6...16 kHz adjustable 12...16 kHz with derating factor |
| Frequency resolution | Display unit 0.1 Hz Analog input 0.024/50 Hz |
| Nominal switching frequency | 12 kHz |
| Speed drive output frequency | 0.5...200 Hz |
| Phases | 3 phase |
| IP degree of protection | IP55 IEC 61800-5-1 IP55 IEC 60529 |
| Physical interface | 2-wire RS 485 |
| Communication service | Monitoring inhibitable Time out setting from 0.1 to 100 s Read device identification (43) Read holding registers (03) 2 words maximum Write multiple registers (16) 2 words maximum Write single register (06) |
| Communication port protocol | Modbus BACnet METASYS N2 LonWorks APOGEE FLN |
| EMC filter | Class C2 EMC filter integrated |
| Pollution degree | 2 IEC 61800-5-1 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 5...95 % without condensation IEC 60068-2-3 5...95 % without dripping water IEC 60068-2-3 |
| Operating altitude | 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m <= 3280.84 ft (1000 m) without derating |
| Vibration resistance | 1.5 mm (f= 3...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to EN/IEC 60068-2-8 |
| Depth | 7.6 in (192 mm) |
| Width | 8.5 in (215 mm) |
| Height | 11.7 in (297 mm) |
| Standards | IEC 61800-3 environments 2 category C1 IEC 61800-5-1 IEC 61800-3 environments 1 category C2 IEC 61800-3 category C2 IEC 61800-3 environments 2 category C2 IEC 61800-3 environments 1 category C1 IEC 61800-3 environments 1 category C3 IEC 61800-3 environments 1 category C3 IEC 61800-3 environments 2 category C1 IEC 61800-3 IEC 61800-3 IEC 61800-3 environments 1 category C1 IEC 61800-3 environments 2 category C3 IEC 61800-5-1 EN 61800-3 category C3 IEC 61800-3 environments 2 category C3 IEC 61800-3 environments 1 category C2 EN 55011 class A group 1 IEC 61800-3 category C3 IEC 61800-3 category C2 IEC 61800-3 environments 2 category C2 |
| Marking | CE |
| Category | US1CP4D22157 |
| Data format | 8 bits, 1 stop, odd even or no configurable parity |
| Noise level | 48 dB 86/188/EEC |
| Option card | Communication card LonWorks |
| Speed range | 1...10 |
| Functionality | Mid |
| Assembly style | With heat sink |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Regulation loop | Adjustable PI regulator |
| Torque accuracy | +/- 15 % |
| Local signalling | 1 LED (red) for DC bus energized |
| Device short name | ATV212 |
| Transmission rate | 9600 bps or 19200 bps |
| Operating position | Vertical +/- 10 degree |
| Transmission frame | RTU |
| Number of addresses | 1...247 |
| Product destination | Asynchronous motors |
| Prospective line isc | 5 kA |
| Specific application | HVAC |
| Transient overtorque | 120 % of nominal motor torque +/- 10 % 60 s |
| Analogue input number | 2 |
| Braking to standstill | By DC injection |
| Analogue output number | 1 |
| Discrete output number | 2 |
| Motor slip compensation | Automatic whatever the load Not available in voltage/frequency ratio motor control Adjustable |
| Environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 Classes 3S2 conforming to IEC 60721-3-3 |
| Product specific application | Pumps and fans in HVAC |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Asynchronous motor control profile | Voltage/frequency ratio, 2 points Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor, standard Voltage/frequency ratio, 5 points |
| Acceleration and deceleration ramps | Linear adjustable separately from 0.01 to 3200 s Automatic based on the load |
| Ambient air temperature for storage | -13...158 °F (-25...70 °C) |
| Ambient air temperature for operation | 14...104 °F (-10...40 °C) (without derating) 104...122 °F (40...50 °C) (with derating factor) |

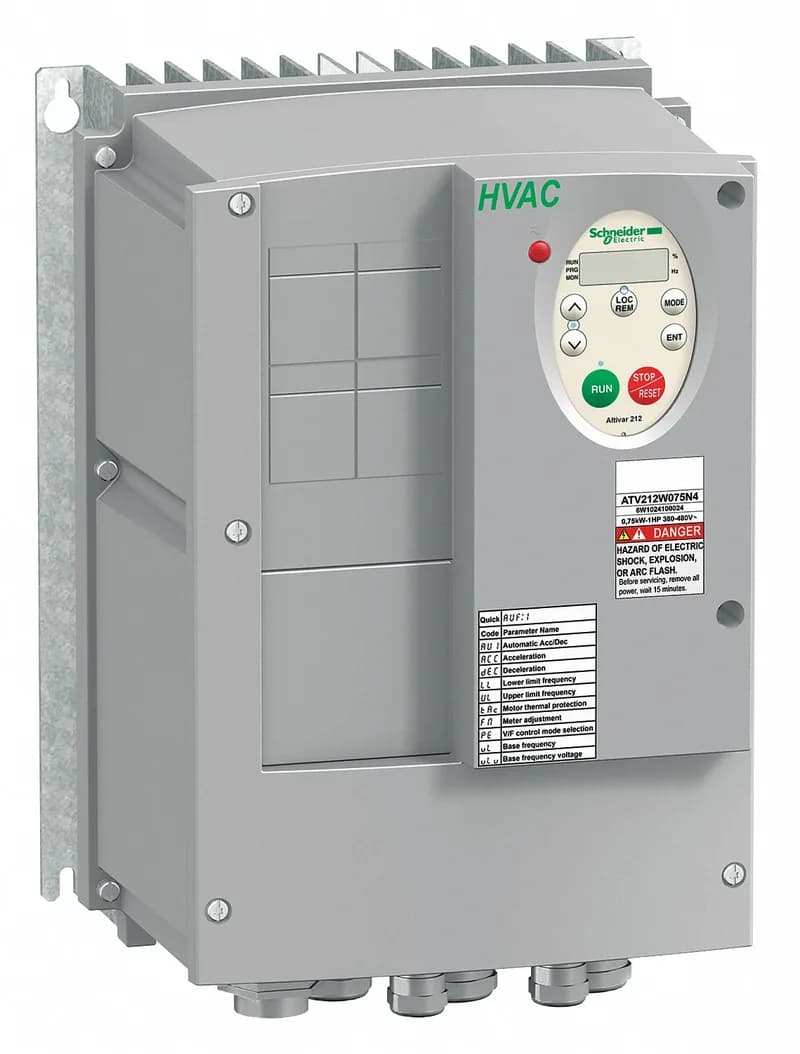

The ATV212W075N4 is a Schneider Altivar 212 variable frequency drive rated 2.2 A output at 1 hp / 745.7 W, fed from a 3-phase supply and housed in an IP55 enclosure with an integrated heat sink. It carries an integrated Class C2 EMC filter and speaks Modbus, BACnet, METASYS N2, LonWorks, and APOGEE FLN natively, suiting it for building HVAC or pump/fan duty where fieldbus integration is required.
