Schneider Electric ATV212WD11N4

Schneider Electric ATV212WD11N4

MPNATV212WD11N4
Active

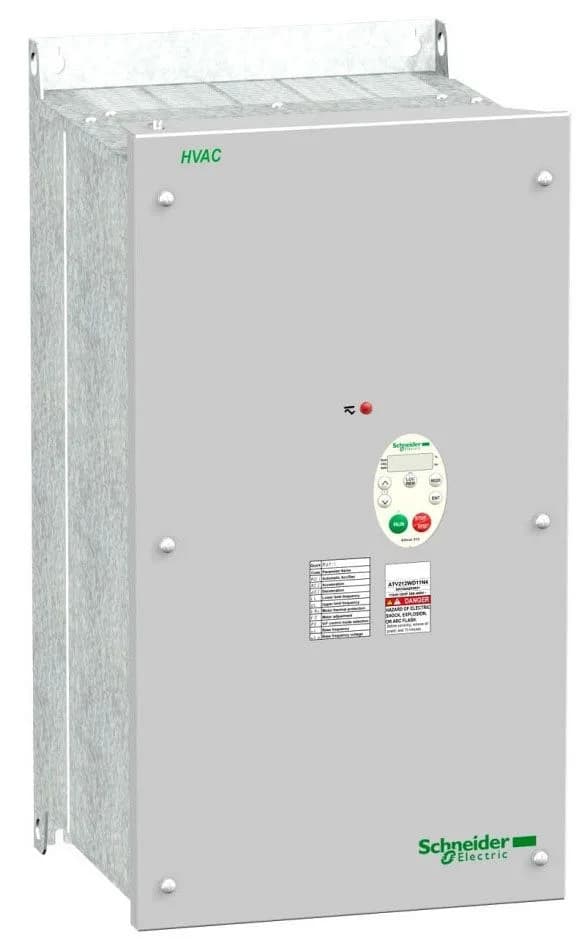

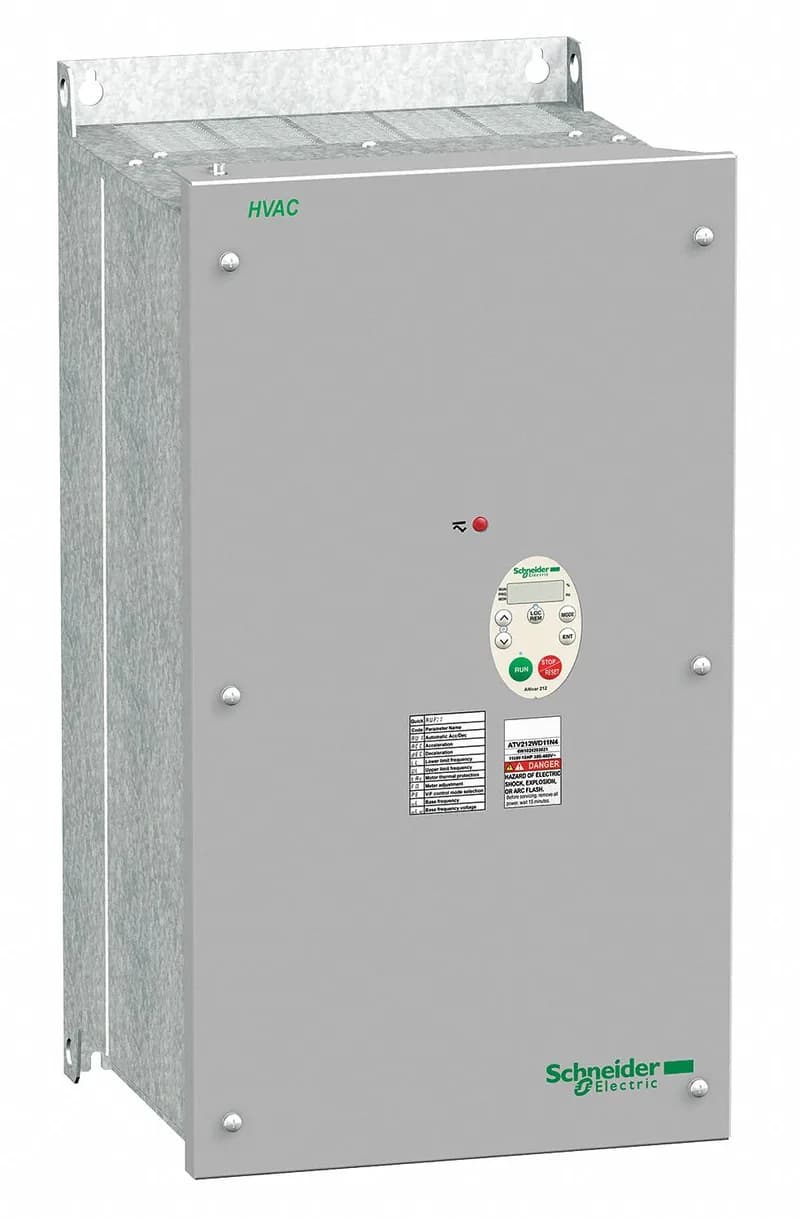

variable speed drive ATV212 - 11kW - 15hp - 480V - 3ph - EMC class C2 - IP55|variable speed drive ATV212 - 11kW - 15hp - 480V - 3ph - EMC class C2 - IP55

$1,249.68 – $2,252.10Ref. price · indicative, final on quote
Schneider Electric ATV212WD11N4 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

ATV212WD11N4 key specifications
ParameterValue
Connector type1 RJ45 1 open style
Protection typeOverheating protection drive Thermal power stage drive Short-circuit between motor phases drive Input phase breaks drive Overcurrent between output phases and earth drive Overvoltages on the DC bus drive Break on the control circuit drive Against exceeding limit speed drive Line supply overvoltage and undervoltage drive Line supply undervoltage drive Against input phase loss drive Thermal protection motor Motor phase break motor With PTC probes motor
Range of productAltivar 212
Analogue input typeVIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits VIB configurable PTC probe 0...6 probes 1500 Ohm VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Type of polarizationNo impedance
Product or component typeVariable speed drive
Output voltage= 1 mOhm 500 V DC for 1 minute
Supply voltage limits323...528 V
Supply voltage380...480 V - 15...10 %
Line current16.9 A 480 V 21.2 A 380 V
Continuous output current22.5 A 380 V 22.5 A 460 V
Maximum transient current24.8 A 60 s

All specifications

ATV212WD11N4 additional specifications
ParameterValue
Apparent power17.1 kVA 380 V
Motor power11 kW
Maximum horse power rating15 hp
Supply frequency50...60 Hz - 5...5 %
Network frequency47.5...63 Hz
Switching frequency6...16 kHz adjustable 12...16 kHz with derating factor
Frequency resolutionDisplay unit 0.1 Hz Analog input 0.024/50 Hz
Nominal switching frequency12 kHz
Speed drive output frequency0.5...200 Hz
Phases3 phase
IP degree of protectionIP55 IEC 61800-5-1 IP55 IEC 60529
Physical interface2-wire RS 485
Communication serviceWrite multiple registers (16) 2 words maximum Read device identification (43) Time out setting from 0.1 to 100 s Write single register (06) Monitoring inhibitable Read holding registers (03) 2 words maximum
Communication port protocolBACnet METASYS N2 Modbus LonWorks APOGEE FLN
EMC filterClass C2 EMC filter integrated
Pollution degree2 IEC 61800-5-1
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity5...95 % without condensation IEC 60068-2-3 5...95 % without dripping water IEC 60068-2-3
Operating altitude3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m <= 3280.84 ft (1000 m) without derating
Vibration resistance1.5 mm (f= 3...13 Hz) conforming to IEC 60068-2-6 1 gn (f= 13...200 Hz) conforming to EN/IEC 60068-2-8
Depth12.4 in (315 mm)
Width11.4 in (290 mm)
Height22.05 in (560 mm)
StandardsIEC 61800-3 environments 1 category C3 IEC 61800-3 environments 1 category C2 IEC 61800-3 category C2 IEC 61800-3 environments 2 category C1 IEC 61800-3 category C3 IEC 61800-5-1 IEC 61800-3 environments 1 category C1 IEC 61800-3 environments 1 category C1 IEC 61800-3 environments 2 category C2 IEC 61800-3 environments 1 category C3 IEC 61800-3 environments 2 category C3 EN 55011 class A group 1 IEC 61800-5-1 IEC 61800-3 category C2 EN 61800-3 category C3 IEC 61800-3 IEC 61800-3 environments 1 category C2 IEC 61800-3 environments 2 category C3 IEC 61800-3 environments 2 category C2 IEC 61800-3 environments 2 category C1 IEC 61800-3
MarkingCE
CategoryUS1CP4D22157
Data format8 bits, 1 stop, odd even or no configurable parity
Noise level57.4 dB 86/188/EEC
Option cardCommunication card LonWorks
Speed range1...10
FunctionalityMid
Assembly styleWith heat sink
Speed accuracy+/- 10 % of nominal slip 0.2 Tn to Tn
Regulation loopAdjustable PI regulator
Torque accuracy+/- 15 %
Local signalling1 LED (red) for DC bus energized
Device short nameATV212
Transmission rate9600 bps or 19200 bps
Operating positionVertical +/- 10 degree
Transmission frameRTU
Number of addresses1...247
Product destinationAsynchronous motors
Prospective line isc22 kA
Specific applicationHVAC
Transient overtorque120 % of nominal motor torque +/- 10 % 60 s
Analogue input number2
Braking to standstillBy DC injection
Analogue output number1
Discrete output number2
Motor slip compensationAutomatic whatever the load Adjustable Not available in voltage/frequency ratio motor control
Environmental characteristicClasses 3C1 conforming to IEC 60721-3-3 Classes 3S2 conforming to IEC 60721-3-3
Product specific applicationPumps and fans in HVAC
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Asynchronous motor control profileVoltage/frequency ratio, 5 points Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Voltage/frequency ratio - Energy Saving, quadratic U/f Flux vector control without sensor, standard Voltage/frequency ratio, 2 points
Acceleration and deceleration rampsLinear adjustable separately from 0.01 to 3200 s Automatic based on the load
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation14...104 °F (-10...40 °C) (without derating) 104...122 °F (40...50 °C) (with derating factor)
MPN
ATV212WD11N4
