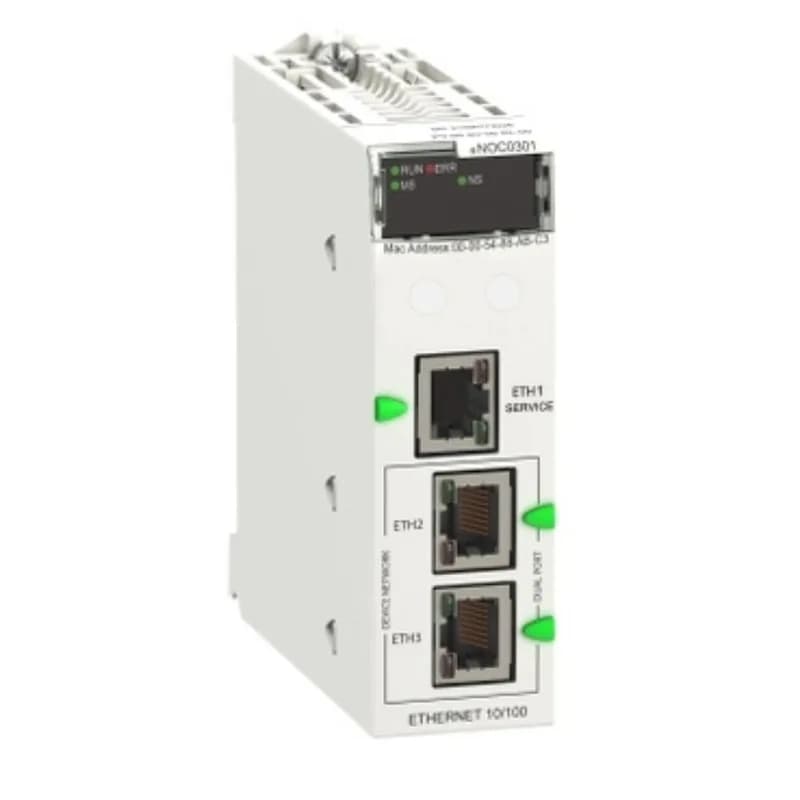

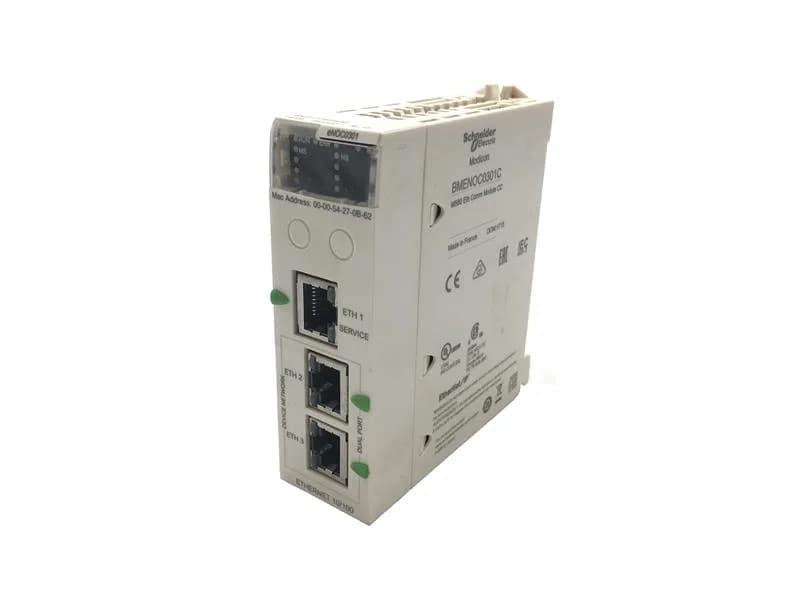

Schneider Electric BMENOC0301C

Schneider BMENOC0301C M580 Ethernet Module, Obsolete

MPNBMENOC0301C
Obsolete

Schneider Electric Modicon M580 BMENOC0301C, Ethernet communication module, 3-port, conformal coated, 32 mm wide.

$748.03 – $1,684.00Ref. price · indicative, final on quote
Schneider Electric BMENOC0301C datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMENOC0301C key specifications
ParameterValue
Range of productModicon M580
Product or component typeCommunication module
Integrated connection type3 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair
Current consumption900 mA 3.3 V DC for product version >= 13) 1800 mA 3.3 V DC for product version < 13)
IP degree of protectionIP20
Communication serviceBandwidth management FDR server SNMP network administrator Modbus TCP I/O Scanner and Messaging Ethernet/IP I/O Scanner and Messaging RSTP support Port mirroring Embedded multiport switch
Mounting locationMain rack
Width1.3 in (32 mm)
Height4.08 in (103.7 mm)
StandardsIEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 IEC 61000-6-5, interface type 1 and type 2 IEC 61850-3, location G IEC 60079-0
Length3.4 in (86 mm)
SupplyInternal power supply via rack

All specifications

BMENOC0301C additional specifications
ParameterValue
MarkingCE
CategoryUS1PC3418160
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility 2014/34/EU - ATEX directive
Web serverFor commissioning, operational and maintenance
Local signalling1 LED (green) for processor running (RUN) 1 LED (red) for processor or system fault (ERR) 1 LED (green/red) for ETH MS (Ethernet port configuration status) 1 LED (green/red) for Eth NS (Ethernet network status)
Device applicationCommunication
Protective treatmentConformal coating
Backplane slot locationEthernet + X-bus Slot
Slot occupied by module1
Transmission support mediumEthernet backplane
Environmental characteristicGas resistant class Gx ISA S71.04 Gas resistant class 3C4 IEC 60721-3-3 Dust resistant class 3S4 IEC 60721-3-3 Sand resistant class 3S4 IEC 60721-3-3 Salt resistant level 2 IEC 68252 Mold growth resistant class 3B2 IEC 60721-3-3 Fungal spore resistant class 3B2 IEC 60721-3-3 Hazardous location class I division 2
Maximum number of modules per rack4
Ambient air temperature for operation32...140 °F (0...60 °C)

Product details

BMENOC0301C — M580 Ethernet Communication Module

Occupies one slot on the main rack of a Modicon M580 system. Provides three RJ45 Ethernet ports with a built-in managed switch, supporting Modbus TCP and EtherNet/IP I/O Scanner, SNMP, and RSTP. Onboard web server handles commissioning and maintenance without extra software. Conformal coating protects against corrosive environments, gas resistance class Gx and 3C4.

Width of 1.3 in (32 mm) fits the M580 backplane. Height 4.08 in (103.7 mm), depth 3.4 in (86 mm). Internal power via rack — no external supply needed. Maximum of four such modules per rack.

Certified to IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201. ATEX compliant for gas/dust environments (IEC 60079-0). IP20 protection. Operating temperature 0 to 60 °C. Conformal coating, gas class Gx (ISA S71.04), dust and sand class 3S4, salt level 2, mold and fungal spore class 3B2.

Frequently asked questions

What is the width of BMENOC0301C?

Width is 1.3 in (32 mm).

What is the height of BMENOC0301C?

Height is 4.08 in (103.7 mm).

What compliance standards does BMENOC0301C meet?

It meets IEC 61131-2, IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, and ATEX directives (2014/34/EU). It is also rated for hazardous locations Class I Division 2.

How do I source BMENOC0301C now?

Submit an RFQ. As an obsolete part, we source from remaining stock in the channel. Lead time and pricing depend on inventory at the time of your request.
