Schneider Electric BMENO Series

9 variants · Schneider Electric

About the Schneider Electric BMENO Series

AO Ctrl is an independent, China-based distributor and sourcing agent for Schneider Electric BMENO Series components — the parts repair and maintenance teams source here when a machine is down or the line is no longer sold locally — with the physical condition of every unit stated up front. The Schneider Electric BMENO Series series groups 9 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common IP rating of IP20, temp operating max of 60 °C and temp operating min of 0 °C. Variants differ by main product or component type, operating temperature and current, so you can match the exact main product or component type your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric BMENO Series variants and discontinued ones from a single page.

Select a variant by

Main product or component type: Communication module · Switch module
Operating temperature: 0...60 °C · 32...140 °F (0...60 °C)
Current: 155 mA 24 V DC · 900 mA 3.3 V DC for product version >= 13) 1800 mA 3.3 V DC for product version < 13) · 1800 mA 3.3 V DC
Integrated connection type: 2 Ethernet RJ45 10/100/1000 Mbit/s double shielded twisted pair 1 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair · 3 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair · 3 Ethernet RJ45 10/100/1000 Mbps double shielded twisted pair
Application: Communication · Process and control communication module
Height: 4.08 in (103.7 mm) · 5.2 in (131 mm)
Length: 3.39 in (86.05 mm) · 3.4 in (86 mm)
Storage temperature: -40...85 °C · -40...185 °F (-40...85 °C)

Shared specifications

IP rating: IP20
Temp operating max: 60 °C
Temp operating min: 0 °C

Variant comparison

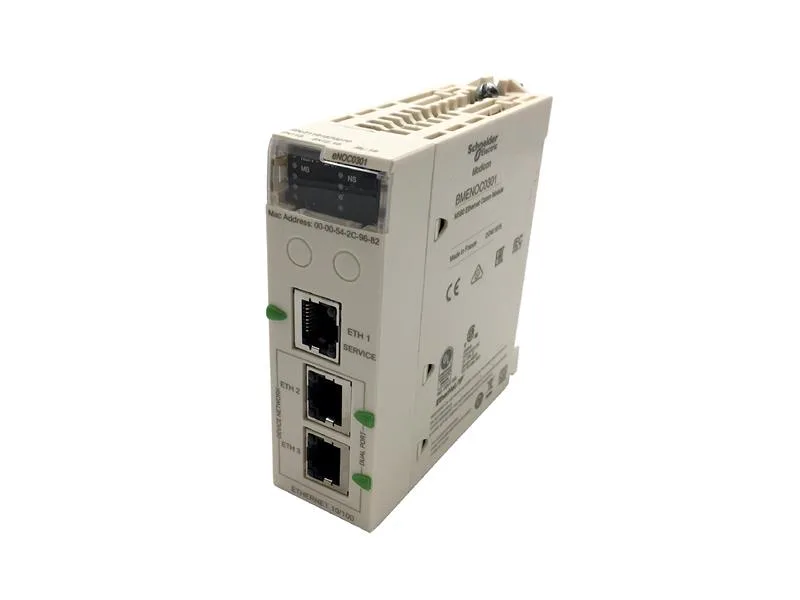

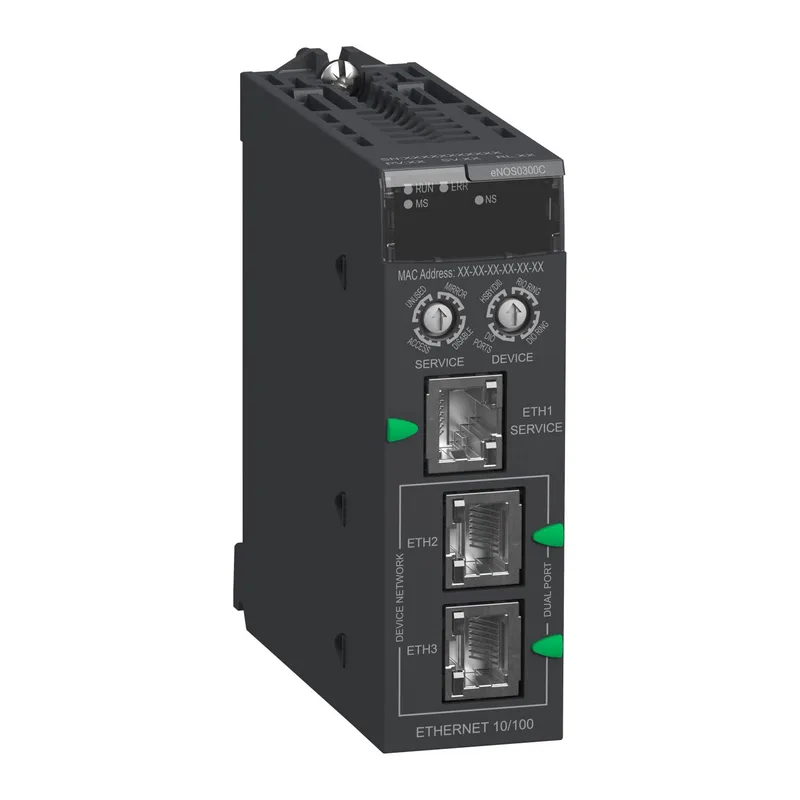

Parameter	BMENOS0300	BMENOC0301	BMENOS0300C	BMENOC0301C	BMENOC0321	BMENOC0311
Main product or component type	Switch module	Communication module	Switch module	Communication module	Communication module	Communication module
Operating temperature	0...60 °C	32...140 °F (0...60 °C)	0...60 °C	32...140 °F (0...60 °C)	32...140 °F (0...60 °C)	32...140 °F (0...60 °C)
Current	—	900 mA 3.3 V DC for product version >= 13) 1800 mA 3.3 V DC for product version < 13)	—	900 mA 3.3 V DC for product version >= 13) 1800 mA 3.3 V DC for product version < 13)	1800 mA 3.3 V DC	—
Integrated connection type	—	3 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair	—	3 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair	3 Ethernet RJ45 10/100/1000 Mbps double shielded twisted pair	—
Application	—	Process and control communication module	—	Communication	—	—
Height	—	4.08 in (103.7 mm)	—	4.08 in (103.7 mm)	—	—
Length	—	3.4 in (86 mm)	—	3.4 in (86 mm)	—	—
Storage temperature	-40...85 °C	—	-40...85 °C	—	—	—

Request a quote on any Schneider Electric BMENO Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
