Schneider Electric BMI0703T36A

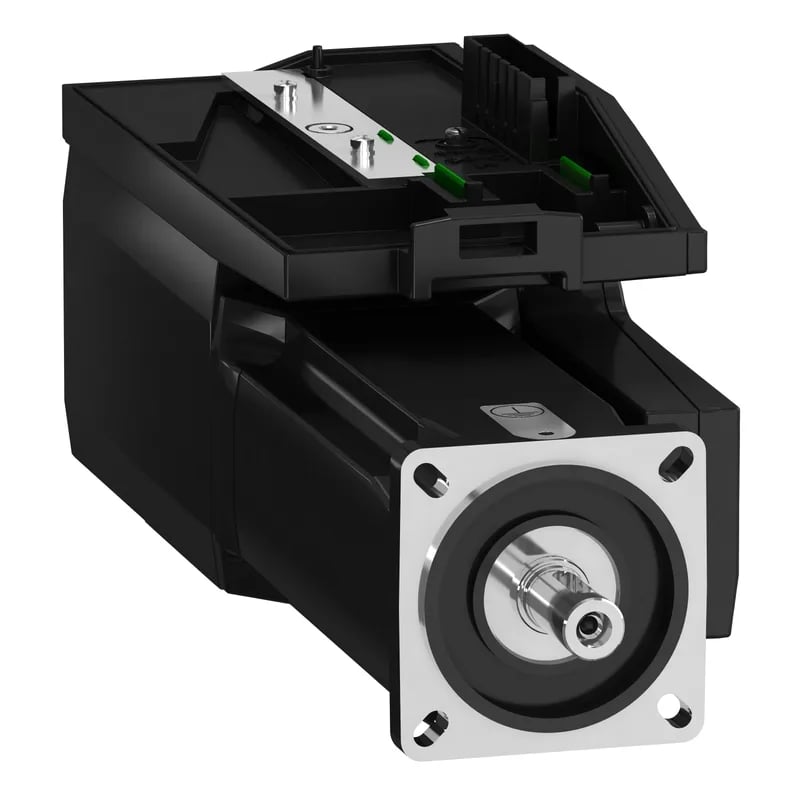

Schneider BMI0703T36A Lexium 32i servo motor, 700 W, 3.5 A

MPNBMI0703T36A
Active

Schneider BMI0703T36A Motors.

$2,015.00 – $2,989.00Ref. price · indicative, final on quote
Schneider Electric BMI0703T36A datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMI0703T36A key specifications
ParameterValue
Feedback typeAbsolute single turn SinCos Hiperface
Type of coolingNatural convection
Product or component typeServo motor with power stage
Supply voltage limits100...240 V
Supply voltage115...230 V - 15...10 %
Maximum current irms17.8 A 115 V, single phase 17.8 A 230 V, single phase
Output current 3s peak10.5 A 230 V 3 s
Continuous stall current3.5 A
Continuous output current3.5 A 8 kHz
Nominal output power700 W 230 V single phase 400 W 115 V single phase
Supply frequency50/60 Hz - 5...5 %
Network frequency limits47.5...63 Hz

All specifications

BMI0703T36A additional specifications
ParameterValue
Number of motor poles10
PhasesSingle phase
IP degree of protectionIP65
Mounting supportInternational standard flange
Mounting holes diameter0.2 in (5.5 mm)
Number of mounting holes4
Circle diameter of the mounting holes3.0...3.2 in (75...82 mm)
Electrical connectionPrinted circuit board connector
EMC filterIntegrated
Key width0.2 in (5 mm)
Centring collar depth0.10 in (2.5 mm)
Length11.8 in (300 mm)
CategoryUS1PC5618287
Shaft endKeyed
Second shaftWithout second shaft end
Shaft length1.2 in (30 mm)
Holding brakeWithout
Nominal speed3200 rpm 230 V single phase 1400 rpm 115 V single phase
Rotor inertia1.67 kg.cm²
Nominal torque25.7 lbf.in (2.9 N.m) 115 V single phase 19.5 lbf.in (2.2 N.m) 230 V single phase
Shaft diameter0.6 in (14 mm)
Torque constant0.81 N.m/A 68 °F (20 °C)
Back emf constant54.44 V/krpm 68 °F (20 °C)
Device short nameBMI
Motor flange size2.8 in (70 mm)
Peak stall torque76.1 lbf.in (8.6 N.m) 115 V single phase 76.1 lbf.in (8.6 N.m) 230 V single phase
Stator inductance2.28 mH 68 °F (20 °C)
Stator resistance2.58 Ohm 68 °F (20 °C)
Maximum axial force fa0.2 x Fr
Number of motor stacks3
Continuous stall torque30.09 lbf.in (3.4 N.m) 115...230 V single phase
Maximum radial force fr730 N 1000 rpm 580 N 2000 rpm 510 N 3000 rpm 460 N 4000 rpm 430 N 5000 rpm 400 N 6000 rpm
Centring collar diameter2.4 in (60 mm)
Maximum mechanical speed8000 rpm
Speed feedback resolution32768 points/turn
Distance shaft shoulder-flange0.10 in (2.5 mm)
Stator electrical time constant0.88 ms 68 °F (20 °C)

Product details

Overview

The BMI0703T36A is a Lexium 32i servo motor from Schneider, rated at 700 W with a continuous current of 3.5 A and a torque of 3.4 N.m at 8000 rpm. It runs on single-phase 230 V, carries an absolute single-turn SinCos Hiperface encoder (32768 points/turn), and is sealed to IP65. The motor has 10 poles, a keyed shaft, no holding brake, and is cooled by natural convection. It is designed for the Lexium 32i drive family and includes an integrated EMC filter.

Selection comparison

Versus the BMI0702T01A, the BMI0703T36A offers higher current (3.5 A vs 2.6 A) and torque (3.4 N.m vs 2.48 N.m), but the BMI0702T01A provides a multi-turn encoder for applications needing absolute position over multiple revolutions.

MPN
BMI0703T36A
