Schneider Electric BMI0703T Series

18 variants · Schneider Electric

About the Schneider Electric BMI0703T Series

AO Ctrl is a China industrial automation distributor and independent sourcing agent for Schneider Electric BMI0703T Series components — the parts repair and maintenance teams source here when a machine is down or the line is no longer sold locally — with the physical condition of every unit stated up front. The Schneider Electric BMI0703T Series series groups 18 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common centring collar diameter of 2.4 in (60 mm), frequency of 50...60 Hz - 5...5 % and max axial force fa n of 0.2 x Fr. Variants differ by IP rating, length and shaft end type, so you can match the exact IP rating your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric BMI0703T Series variants and discontinued ones from a single page.

Select a variant by

IP rating: IP54 / IP65 · IP65
Length: 11.8 in (300 mm) · 13.3 in (339 mm)
Shaft end type: Keyed · Untapped

Shared specifications

Centring collar diameter: 2.4 in (60 mm)
Frequency: 50...60 Hz - 5...5 %
Max axial force fa n: 0.2 x Fr
Shaft diameter: 0.6 in (14 mm)

Variant comparison

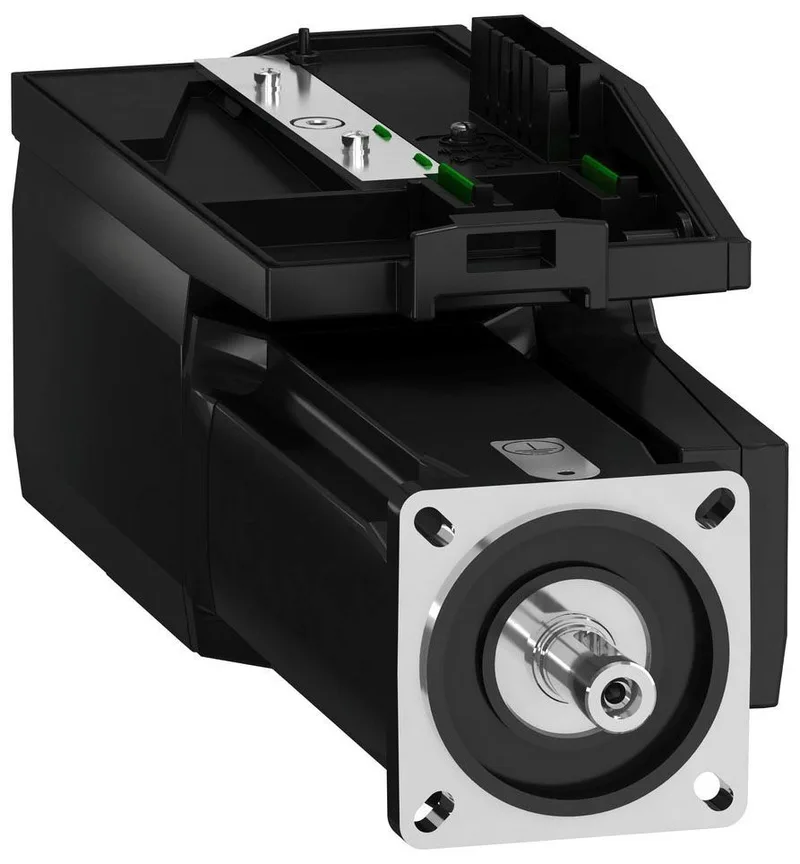

Parameter	BMI0703T06A	BMI0703T16A	BMI0703T22F	BMI0703T26A	BMI0703T27A	BMI0703T17F
IP rating	IP54 / IP65	IP54 / IP65	IP65	IP65	IP65	IP54 / IP65
Length	11.8 in (300 mm)	11.8 in (300 mm)	13.3 in (339 mm)	11.8 in (300 mm)	11.8 in (300 mm)	13.3 in (339 mm)
Shaft end type	Untapped	Keyed	Untapped	Untapped	Untapped	Keyed

Request a quote on any Schneider Electric BMI0703T Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
