Schneider Electric BMXAMI0810H

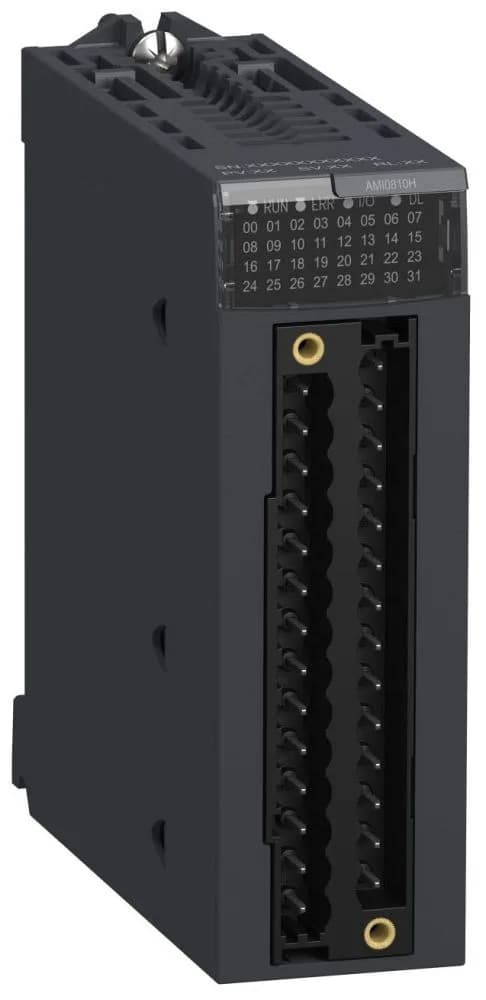

Schneider BMXAMI0810H Modicon X80 isolated analog input module, 8 channels

MPNBMXAMI0810H
Obsolete

Schneider Electric Modicon X80 BMXAMI0810H isolated analog input module, 8 channels, multi-range current/voltage, 15 bits + sign resolution, IP20, 30 gn shock, 1.06 W, 28-way connector.

$463.55 – $1,061.00Ref. price · indicative, final on quote
Schneider Electric BMXAMI0810H datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXAMI0810H key specifications
ParameterValue
Type of filterFirst order digital filtering
Range of productModicon X80
Analogue input typeCurrent +/- 20 mA Current 0...20 mA Current 4...20 mA Voltage +/- 10 V Voltage +/- 5 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V
Product or component typeAnalog input module
Isolation voltage300 V DC between channels 1400 V DC between channels and ground 1400 V DC between channels and bus
Current consumption150 mA at 3.3 V DC 54 mA at 24 V DC
Power consumption in1.06 W 24 V DC typical 1.50 W 24 V DC maximum 0.32 W 3.3 V DC typical 0.48 W 3.3 V DC maximum
IP degree of protectionIP20
Electrical connection28 ways 1 connector
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor

All specifications

BMXAMI0810H additional specifications
ParameterValue
Vibration resistance3 gn
Product weight0.175 kg
MTBF reliability900000 H
StandardsIEC 61010-2-201 IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O
Input levelHigh level
Input impedance10 MOhm in voltage mode 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode
Measurement error0.15 % of full scale +/- 20 mA 25 °C 0.15 % of full scale 0...20 mA 25 °C 0.15 % of full scale 4...20 mA 25 °C 0.075 % of full scale +/- 10 V 25 °C 0.075 % of full scale 0...10 V 25 °C 0.075 % of full scale 0...5 V 25 °C 0.075 % of full scale 1...5 V 25 °C 0.075 % of full scale +/- 5 V 25 °C <= 0.55 % of full scale 4...20 mA - 25...70 °C
Temperature drift30 ppm/°C +/- 10 V 30 ppm/°C +/- 5 V 30 ppm/°C 0...10 V 30 ppm/°C 0...5 V 30 ppm/°C 1...5 V 50 ppm/°C +/- 20 mA 50 ppm/°C 0...20 mA 50 ppm/°C 4...20 mA
Digital value format- 32768 to + 32767 in maximum user scale +/- 10000 by default
Fast read cycle time1 ms + 1 ms x number of channels used
Protective treatmentConformal coating
Analogue input number8
Common mode rejection80 dB
Measurement resolution0.36 mV +/- 10 V 0.36 mV 0...10 V 0.36 mV 0...5 V 0.36 mV 1...5 V 0.36 mV +/- 5 V 1.4 µA +/- 20 mA 1.4 µA 0...20 mA 1.4 µA 4...20 mA
Nominal read cycle time9 ms for 8 channels
Maximum conversion value+/- 11.4 V +/- 10 V +/- 11.4 V 0...10 V +/- 11.4 V 0...5 V +/- 11.4 V 1...5 V 0...30 mA +/- 20 mA 0...30 mA 0...20 mA 0...30 mA 4...20 mA 0...30 mA +/- 5 V
Analog (digital conversion)16 bits
Analogue input resolution15 bits + sign
Isolation between channelsIsolated
Environmental characteristicGas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 Hazardous location
Permitted overload on inputs+/- 30 mA 0...20 mA +/- 30 mA 4...20 mA +/- 30 V +/- 10 V +/- 30 V +/- 5 V +/- 30 V 0...10 V +/- 30 V 0...5 V +/- 30 V 1...5 V +/- 30 mA +/- 20 mA
Product specific applicationFor severe environments
Minimum crosstalk attenuation80 dB
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C
Precision of internal conversion resistor0.1 % - 15 ppm/°C

Product details

Overview

The BMXAMI0810H is an 8-channel isolated analog input module in the Modicon X80 range, accepting current (±20 mA, 0–20 mA, 4–20 mA) and voltage (±10 V, ±5 V, 0–10 V, 0–5 V, 1–5 V) signals on each channel with 15 bits plus sign resolution. Rated measurement error is 0.075% of full scale on voltage ranges at 25 °C, and the module withstands 30 gn shock with an IP20 enclosure.

Selection and comparison

The BMXAMI0810H has 8 analog input channels versus 4 on the BMXSAI0410, and supports both current and voltage ranges. Input impedance is 10 Ω.
