Schneider Electric BMXA Series

14 variants · Schneider Electric

About the Schneider Electric BMXA Series

AO Ctrl is a China industrial automation distributor and independent sourcing agent for Schneider Electric BMXA Series components — the parts repair and maintenance teams source here when a machine is down or the line is no longer sold locally — with the physical condition of every unit stated up front. The Schneider Electric BMXA Series series groups 14 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common IP rating of IP20, storage temperature of -40...85 °C and temp storage max of 85 °C. Variants differ by current, main product or component type and operating temperature, so you can match the exact current your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current Schneider Electric BMXA Series variants and discontinued ones from a single page.

Select a variant by

Current: 150 mA at 3.3 V DC 40 mA at 24 V DC · 150 mA at 3.3 V DC 45 mA at 24 V DC · 150 mA at 3.3 V DC 50 mA at 24 V DC · 150 mA at 3.3 V DC 54 mA at 24 V DC · 150 mA at 3.3 V DC 110 mA at 24 V DC · 150 mA at 3.3 V DC 135 mA at 24 V DC · 150 mA at 3.3 V DC 140 mA at 24 V DC · 240 mA at 3.3 V DC
Main product or component type: Analog input module · Analog output module · Mixed analog I/O module
Operating temperature: -25...70 °C · 0...60 °C
Temp operating max: 30 °C · 45 °C · 50 °C · 60 °C · 70 °C · 100 °C
Temp operating min: -25 °C · 0 °C
Conversion time: <= 1 ms · <= 2 ms · <= 4 ms
Input impedance: 10 MOhm in voltage mode 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode · 250 Ohm

Shared specifications

IP rating: IP20
Storage temperature: -40...85 °C
Temp storage max: 85 °C
Temp storage min: -40 °C

Variant comparison

Parameter	BMXAMM0600H	BMXAMO0802	BMXART0414	BMXAMM0600	BMXAMO0410H	BMXAMI0410H

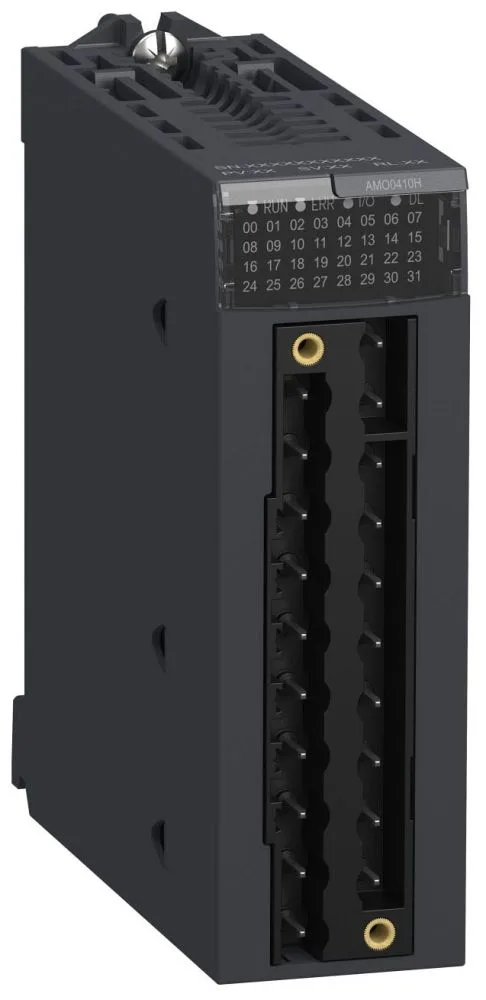

Current	240 mA at 3.3 V DC	150 mA at 3.3 V DC 135 mA at 24 V DC	150 mA at 3.3 V DC 40 mA at 24 V DC	240 mA at 3.3 V DC	150 mA at 3.3 V DC 140 mA at 24 V DC	150 mA at 3.3 V DC 45 mA at 24 V DC
Main product or component type	Mixed analog I/O module	Analog output module	Analog input module	Mixed analog I/O module	Analog output module	Analog input module
Operating temperature	-25...70 °C	0...60 °C	0...60 °C	0...60 °C	-25...70 °C	-25...70 °C
Temp operating max	100 °C	45 °C	—	100 °C	70 °C	30 °C
Temp operating min	0 °C	0 °C	—	0 °C	-25 °C	0 °C
Conversion time	<= 2 ms	<= 4 ms	—	<= 2 ms	<= 1 ms	—
Input impedance	250 Ohm	—	—	250 Ohm	—	10 MOhm in voltage mode 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode

Request a quote on any Schneider Electric BMXA Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
