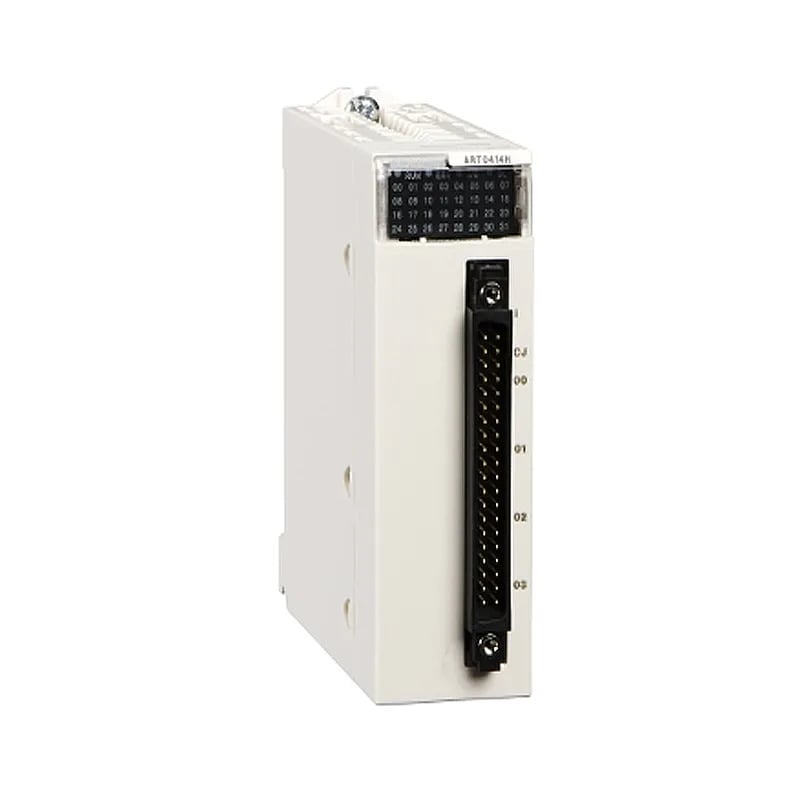

Schneider Electric BMXART0414H

Schneider BMXART0414H Modicon X80 Analog Input, 4 TC/RTD Iso

MPNBMXART0414H
Active

Schneider Modicon X80 BMXART0414H analog input module, 4 channels isolated, accepts TC/RTD/voltage/resistance, sigma-delta 16-bit, IEC 61131-2.

$506.73 – $853.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BMXART0414H key specifications
ParameterValue
Detection typeOpen circuit Cu 10 Open circuit Ni 100 Open circuit Ni 1000 Open circuit Pt 100 Open circuit Pt 1000 Open circuit thermocouple B Open circuit thermocouple E Open circuit thermocouple J Open circuit thermocouple K Open circuit thermocouple L Open circuit thermocouple N Open circuit thermocouple R Open circuit thermocouple S Open circuit thermocouple T Open circuit thermocouple U
Type of filterFirst order digital filtering
Range of productModicon X80
Analogue input typeVoltage +/- 1.28 V Voltage +/- 160 mV Voltage +/- 320 mV Voltage +/- 40 mV Voltage +/- 640 mV Voltage +/- 80 mV Resistor 400 Ohm 2 wires Resistor 400 Ohm 3 wires Resistor 400 Ohm 4 wires Resistor 4000 Ohm 2 wires Resistor 4000 Ohm 3 wires Resistor 4000 Ohm 4 wires Temperature probe -100...+260 °C Cu 10 Temperature probe -100...+450 °C Pt 100 conforming to UL/JIS Temperature probe -100...+450 °C Pt 1000 conforming to UL/JIS Temperature probe -200...+850 °C Pt 100 conforming to IEC Temperature probe -200...+850 °C Pt 1000 conforming to IEC Temperature probe -60...+180 °C Ni 100 Temperature probe -60...+180 °C Ni 1000 Thermocouple +130...+1820 °C thermocouple B Thermocouple +270...+1300 °C thermocouple N Thermocouple -200...+600 °C thermocouple U Thermocouple -200...+760 °C thermocouple J Thermocouple -200...+900 °C thermocouple L Thermocouple -270...+1000 °C thermocouple E Thermocouple -270...+1370 °C thermocouple K Thermocouple -270...+400 °C thermocouple T Thermocouple -50...+1769 °C thermocouple R Thermocouple -50...+1769 °C thermocouple S
Product or component typeAnalog input module
Current consumption150 mA at 3.3 V DC 40 mA at 24 V DC
IP degree of protectionIP20
Electrical connection40 ways 1 connector
Shock resistance30 gn
Relative humidity5...95 % at 55 °C without condensation
Operating altitude0...2000 m 2000...5000 m with derating factor
Vibration resistance3 gn

All specifications

BMXART0414H additional specifications
ParameterValue
MTBF reliability1400000 H
StandardsIEC 61131-2 IEC 61000-6-4 IEC 61000-6-2 EN 61010-2-201
Directives2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility
Status LED1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O
Input levelLow level
RecalibrationInternal
Measurement error+/- 0.7 °C Ni 1000 25 °C +/- 2.1 °C Ni 100 25 °C +/- 2.1 °C Pt 100 25 °C +/- 2.1 °C Pt 1000 25 °C +/- 2.7 °C thermocouple U 25 °C +/- 2.8 °C thermocouple J 25 °C +/- 3 °C thermocouple L 25 °C +/- 3.2 °C thermocouple R 25 °C +/- 3.2 °C thermocouple S 25 °C +/- 3.5 °C thermocouple B 25 °C +/- 3.7 °C thermocouple E 25 °C +/- 3.7 °C thermocouple K 25 °C +/- 3.7 °C thermocouple N 25 °C +/- 3.7 °C thermocouple T 25 °C +/- 4 °C Cu 10 25 °C 0.05 % of full scale +/- 1.28 V 25 °C 0.05 % of full scale +/- 160 mV 25 °C 0.05 % of full scale +/- 320 mV 25 °C 0.05 % of full scale +/- 40 mV 25 °C 0.05 % of full scale +/- 640 mV 25 °C 0.05 % of full scale +/- 80 mV 25 °C 0.12 % of full scale 400 Ohm 25 °C 0.12 % of full scale 4000 Ohm 25 °C +/- 1.5 °C Ni 1000 - 25...70 °C +/- 3.5 °C Ni 100 - 25...70 °C +/- 3.5 °C Pt 100 - 25...70 °C +/- 3.5 °C Pt 1000 - 25...70 °C +/- 4.5 °C Cu 10 - 25...70 °C +/- 5.5 °C thermocouple J - 25...70 °C +/- 5.5 °C thermocouple L - 25...70 °C +/- 5.5 °C thermocouple R - 25...70 °C +/- 5.5 °C thermocouple S - 25...70 °C +/- 5.5 °C thermocouple U - 25...70 °C +/- 6 °C thermocouple B - 25...70 °C +/- 6 °C thermocouple E - 25...70 °C +/- 6 °C thermocouple K - 25...70 °C +/- 6 °C thermocouple N - 25...70 °C +/- 6 °C thermocouple T - 25...70 °C <= 0.3 % of full scale 4000 Ohm - 25...70 °C
Temperature drift25 ppm/°C 400 Ohm 25 ppm/°C 4000 Ohm 25 ppm/°C Ni 1000 25 ppm/°C thermocouple B 25 ppm/°C thermocouple E 25 ppm/°C thermocouple J 25 ppm/°C thermocouple K 25 ppm/°C thermocouple L 25 ppm/°C thermocouple N 25 ppm/°C thermocouple R 25 ppm/°C thermocouple S 25 ppm/°C thermocouple T 25 ppm/°C thermocouple U 30 ppm/°C +/- 1.28 V 30 ppm/°C +/- 160 mV 30 ppm/°C +/- 320 mV 30 ppm/°C +/- 40 mV 30 ppm/°C +/- 640 mV 30 ppm/°C +/- 80 mV 30 ppm/°C Cu 10 30 ppm/°C Ni 100 30 ppm/°C Pt 100 30 ppm/°C Pt 1000
Protective treatmentConformal coating
Analogue input number4
Common mode rejection120 dB 50/60 Hz
Measurement resolution0.1 °C Cu 10 0.1 °C Ni 100 0.1 °C Ni 1000 0.1 °C Pt 100 0.1 °C Pt 1000 0.1 °C thermocouple B 0.1 °C thermocouple E 0.1 °C thermocouple J 0.1 °C thermocouple K 0.1 °C thermocouple L 0.1 °C thermocouple N 0.1 °C thermocouple R 0.1 °C thermocouple S 0.1 °C thermocouple T 0.1 °C thermocouple U 1280/2exp14 mV +/- 1.28 V 160/2exp14 mV +/- 160 mV 320/2exp14 mV +/- 320 mV 40/2exp14 mV +/- 40 mV 12.5 mOhm 400 Ohm 125 mOhm 4000 Ohm 640/2exp14 mV +/- 640 mV 80/2exp14 mV +/- 80 mV
Nominal read cycle time200 ms with thermocouple 400 ms with temperature probe
Maximum conversion value+/- 100 % 400 Ohm +/- 100 % 4000 Ohm +/- 102.5 % +/- 1.28 V +/- 102.5 % +/- 160 mV +/- 102.5 % +/- 320 mV +/- 102.5 % +/- 40 mV +/- 102.5 % +/- 640 mV +/- 102.5 % +/- 80 mV
Analog (digital conversion)Sigma delta 16 bits
Analogue input resolution15 bits + sign
Maximum wiring resistance20 Ohm 2 wires Cu 10 20 Ohm 2 wires Ni 100 20 Ohm 2 wires Pt 100 20 Ohm 3 wires Cu 10 20 Ohm 3 wires Ni 100 20 Ohm 3 wires Pt 100 200 Ohm 2 wires Ni 1000 200 Ohm 2 wires Pt 1000 200 Ohm 3 wires Ni 1000 200 Ohm 3 wires Pt 1000 50 Ohm 4 wires Cu 10 50 Ohm 4 wires Ni 100 50 Ohm 4 wires Pt 100 500 Ohm 4 wires Ni 1000 500 Ohm 4 wires Pt 1000
Cold junction compensationExternal by Pt100 probe
Isolation between channelsIsolated
Differential mode rejection60 dB 50/60 Hz
Environmental characteristicGas resistant class Gx Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 Hazardous location class I division 2
Permitted overload on inputs+/- 7.5 V +/- 1.28 V +/- 7.5 V +/- 160 mV +/- 7.5 V +/- 320 mV +/- 7.5 V +/- 40 mV +/- 7.5 V +/- 640 mV +/- 7.5 V +/- 80 mV
Product specific applicationFor severe environments
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-25...70 °C

Product details

Integrator note — channel lineup and grounding

The BMXART0414H: Four isolated analog inputs, each configurable for thermocouple (B, E, J, K, L, N, R, S, T, U), RTD (Pt100, Pt1000, Ni100, Ni1000, Cu10), voltage (±40 mV to ±1.28 V), or 2/3/4-wire resistance (400 Ω or 4000 Ω). Cold-junction compensation uses an external Pt100 probe. Sigma-delta conversion at 16 bits, resolution 15 bits + sign. Channel isolation keeps ground loops off the backplane; use shielded twisted-pair for thermocouple runs and connect the shield at the module end only. Power draw: 150 mA at 3.3 V DC and 40 mA at 24 V DC from the rack. The 40‑way connector is keyed; verify the mating cable part number matches the X80 backplane pinout before termination.

Compliance and environmental rating

Designed to IEC 61131-2 (PLC hardware), IEC 61000-6-4 (emission), IEC 61000-6-2 (immunity), and EN 61010-2-201 (control equipment safety). Complies with Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU. The module carries conformal coating and is rated for severe environments: gas (Gx, 3C4), dust (3S4), sand (3S4), salt (level 2), mold and fungal spore (3B2), plus Class I Division 2 hazardous location. Operating temperature –25 to 70 °C, storage –40 to 85 °C, humidity 5–95 % at 55 °C non‑condensing. Shock resistance 30 gn, vibration 3 gn — suited for rotating machinery and mobile equipment installations within those limits.

Measurement performance

Common‑mode rejection 120 dB at 50/60 Hz; differential‑mode rejection 60 dB. Measurement error at 25 °C: ±0.7 °C on Ni1000, ±2.1 °C on Pt100, ±2.7 to ±3.7 °C on thermocouples (varies by type), and ±0.05 % FS on voltage ranges. Resolution is 0.1 °C across all temperature probes. Temperature drift held to 25 or 30 ppm/°C depending on range. Nominal read cycle 200 ms for thermocouples, 400 ms for RTDs.

Frequently asked questions

What types of inputs does the BMXART0414H accept?

Four isolated channels, each configurable for thermocouples (B, E, J, K, L, N, R, S, T, U), RTDs (Pt100, Pt1000, Ni100, Ni1000, Cu10), low‑level voltage, and resistance (400 Ω or 4000 Ω, 2/3/4‑wire).

What key standards does the BMXART0414H comply with?

IEC 61131-2, IEC 61000-6-4 (emission), IEC 61000-6-2 (immunity), EN 61010-2-201, plus Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU.

What is the common‑mode rejection of the BMXART0414H?

120 dB at 50/60 Hz, with differential‑mode rejection of 60 dB.

Can the BMXART0414H be used in harsh environments?

Yes, it carries conformal coating and is rated for severe environments including gas, dust, sand, salt, mold, and fungal spore resistance, plus Class I Division 2 hazardous locations. Operating temperature –25 to 70 °C.
