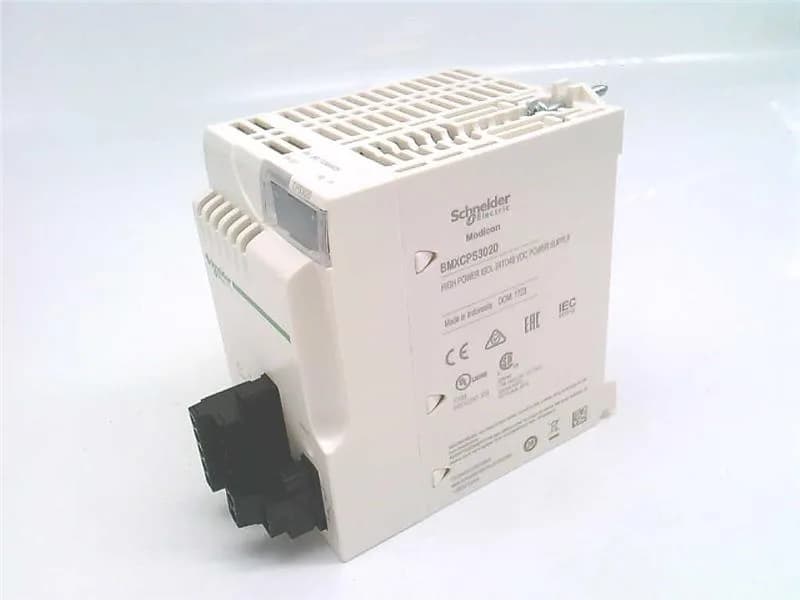

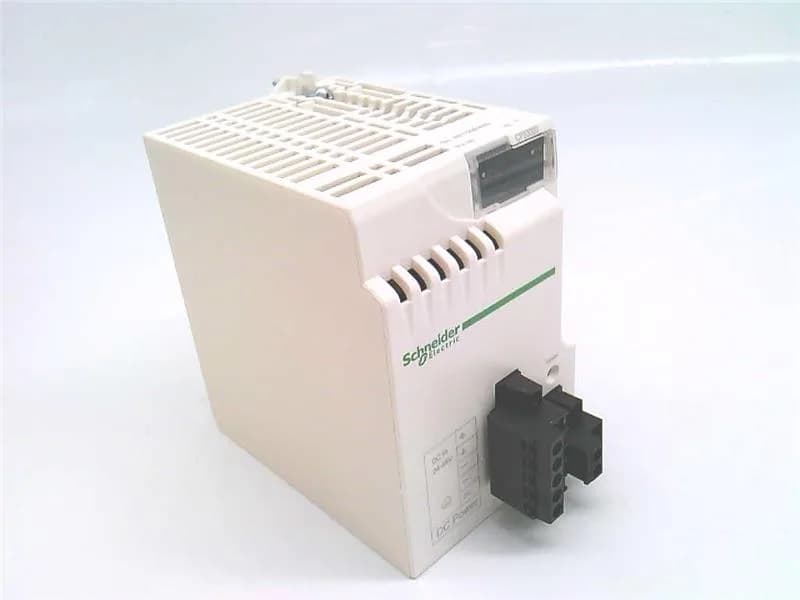

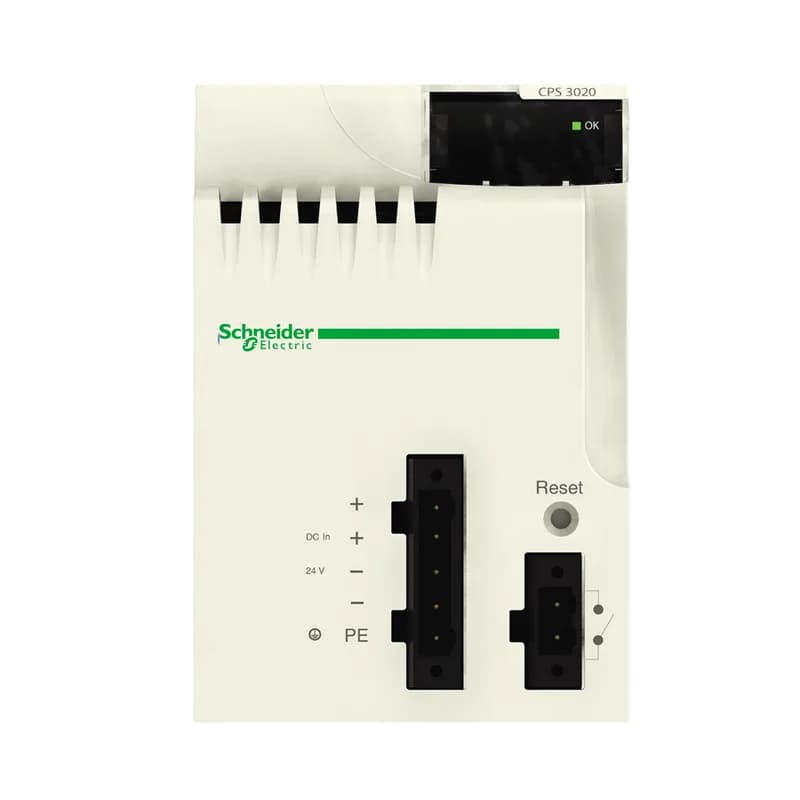

Schneider BMXCPS3020 Power Supply Module
MPNBMXCPS3020
Obsolete
power supply module X80 - 24..48 V DC - 31.2 W|power supply module X80 - 24..48 V DC - 31.2 W
$279.81 – $657.54Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | RESET push-button cold restart |
| Protection type | Internal fuse not accessible for primary circuit Overload protection for secondary circuit, 24 V sensor power supply Overvoltage protection for secondary circuit, 24 V sensor power supply Short-circuit protection for secondary circuit, 24 V sensor power supply |
| Range of product | Modicon X80 |
| Supply circuit type | DC |
| Product or component type | Power supply module |
| Primary voltage | 24...48 V isolated |
| Primary voltage limit | 18...62.4 V |
| Current at secondary voltage | 1.3 A 24 V DC I/O module power supply and processor 4.5 A 3.3 V DC I/O module logic power supply |
| Input current | 0.83 A 48 V 1.65 A 24 V |
| Inrush current | 30 A 24 V 60 A 48 V |
| Secondary power | 15 W 3.3 V DC I/O module logic power supply 31.2 W 24 V DC I/O module power supply and processor |
| Maximum power dissipation in | 8.5 W |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 |
| Electrical connection | 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth |
| Maximum cable distance between devices | 10 m power supply cable copper 1.5 mm² 15 m power supply cable copper 2.5 mm² |
| Shock resistance | 30 gn |
| Relative humidity | 5...95 % at 55 °C without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Vibration resistance | 3 gn |
| MTBF reliability | 4600000 H |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Status LED | 1 LED (green) rack voltage OK |
| It on activation | 0.2 A.s 24 V 0.3 A.s 48 V |
| I2t on activation | 1 A².s 24 V 3 A².s 48 V |
| Dielectric strength | 1500 V primary/ground 1500 V primary/secondary |
| Protective treatment | TC |
| Insulation resistance | >= 10 MOhm primary/ground >= 10 MOhm primary/secondary |
| Backplane compatibility | Not compatible with BMEXBP..02 |
| Immunity to microbreaks | 1 ms |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | 0...60 °C |
MPN
BMXCPS3020
