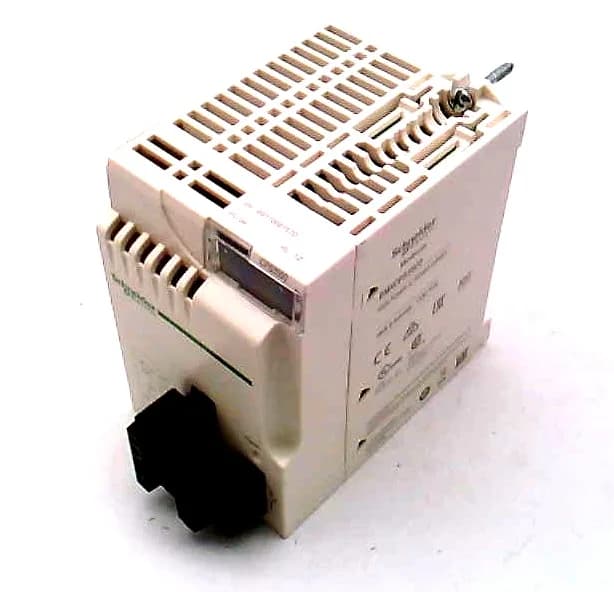

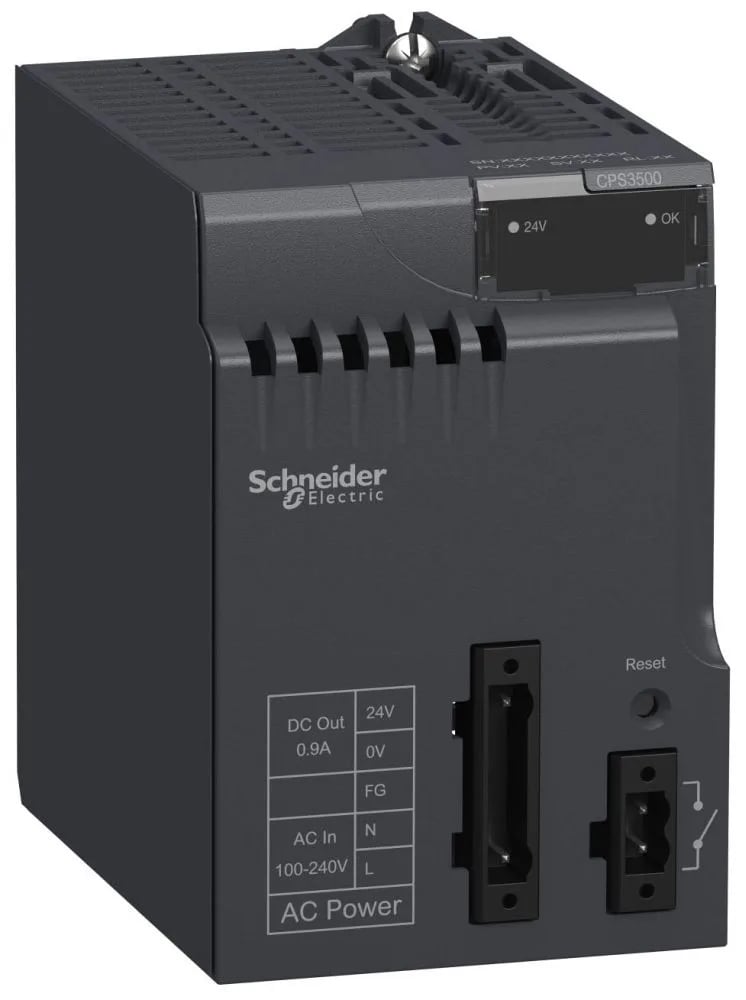

Schneider Electric BMXCPS3500
MPNBMXCPS3500
Active
power supply module X80 - 100..240 V AC - 36 W|power supply module X80 - 100..240 V AC - 36 W
$497.84Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | RESET push-button cold restart |
| Protection type | Internal fuse not accessible for primary circuit Overload protection for secondary circuit Overvoltage protection for secondary circuit Short-circuit protection for secondary circuit |
| Range of product | Modicon X80 |
| Supply circuit type | AC |
| Product or component type | Power supply module |
| Primary voltage | 100...240 V |
| Primary voltage limit | 85...264 V |
| Current at secondary voltage | 0.9 A 24 V DC sensor power supply 1.3 A 24 V DC I/O module power supply and processor 4.5 A 3.3 V DC I/O module logic power supply |
| Input current | 0.52 A 240 V 1.04 A 115 V |
| Inrush current | 30 A 120 V 60 A 240 V |
| Apparent power | 0.12 kVA |
| Secondary power | 15 W 3.3 V DC I/O module logic power supply 31.2 W 24 V DC I/O module power supply and processor 21.6 W 24 V DC sensor power supply |
All specifications
| Parameter | Value |
|---|---|
| Maximum power dissipation in | 8.5 W |
| Network frequency | 50/60 Hz |
| Network frequency limits | 47...63 Hz |
| IP degree of protection | IP20 |
| Electrical connection | 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor |
| Shock resistance | 30 gn |
| Relative humidity | 5...95 % at 55 °C without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Vibration resistance | 3 gn |
| Product weight | 0.36 kg |
| MTBF reliability | 4300000 H |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Status LED | 1 LED (green) rack voltage OK 1 LED (green) sensor voltage |
| It on activation | 0.05 A.s 120 V 0.07 A.s 240 V |
| I2t on activation | 1 A².s 120 V 3 A².s 240 V |
| Dielectric strength | 1500 V primary/secondary I/O module logic power supply 1500 V primary/secondary I/O module power supply and processor 2300 V primary/secondary sensor power supply 1500 V primary/ground 500 V 24 V sensor output/ground |
| Protective treatment | TC |
| Insulation resistance | >= 100 MOhm primary/ground >= 100 MOhm primary/secondary |
| Backplane compatibility | Not compatible with BMEXBP..02 |
| Immunity to microbreaks | 1 ms |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | 0...60 °C |
MPN
BMXCPS3500
