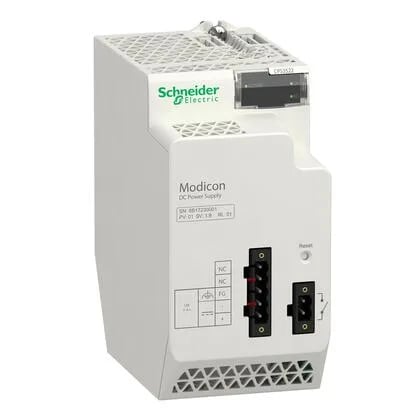

Schneider Electric BMXCPS3522S
MPNBMXCPS3522S
Active
Square D BMXCPS3522S Power Supply|Square D BMXCPS3522S Power Supply
$140.59Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | RESET push-button cold restart |
| Protection type | Internal fuse not accessible for primary circuit Overload protection for secondary circuit Overvoltage protection for secondary circuit Short-circuit protection for secondary circuit |
| Range of product | Modicon X80 |
| Supply circuit type | DC |
| Product or component type | Power supply module |
| Primary voltage | 125 V |
| Primary voltage limit | 100...150 V |
| Current at secondary voltage | 1.67 A 24 V DC I/O module logic power supply 5 A 3.3 V DC I/O module power supply and processor |
| Input current | 600 A 125 V |
| Inrush current | 60 A 125 V |
| Secondary power | 18 W 3.3 V DC at -25...60 °C I/O module logic power supply 40 W 24 V DC at -25...60 °C I/O module power supply and processor if 3.3 V not loaded |
| Maximum power dissipation in | 8.5 W |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 |
| Electrical connection | 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth |
| Shock resistance | 15 gn |
| Relative humidity | 5...95 % at 55 °C without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Vibration resistance | 3 gn |
| MTBF reliability | 791000 H |
| Standards | IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 EN/IEC 61000-6-5, interface type 1 and type 2 EN/IEC 61850-3, location G IEC 60079-0 |
| Directives | 2014/30/EU - electromagnetic compatibility 2006/42/EC - machinery 2014/34/EU - ATEX directive |
| Status LED | 1 LED (green) presence of voltages (OK) 1 LED (green) redundancy OK 1 LED (green) power supply status |
| It on activation | 0.09 A.s 125 V |
| I2t on activation | 2.5 A².s 125 V |
| Dielectric strength | 1500 V primary/secondary I/O module logic power supply 1500 V primary/secondary I/O module power supply and processor 2300 V primary/secondary sensor power supply 1500 V primary/ground |
| Protective treatment | Conformal coating |
| Insulation resistance | >= 100 MOhm primary/ground >= 100 MOhm primary/secondary |
| Backplane compatibility | All backplane |
| Immunity to microbreaks | 1 ms |
| Environmental characteristic | Hazardous location class I division 2 Gas resistant class Gx conforming to ISA S71.04 Gas resistant class 3C4 conforming to IEC 60721-3-3 Dust resistant class 3S4 conforming to IEC 60721-3-3 Sand resistant class 3S4 conforming to IEC 60721-3-3 Salt resistant level 2 conforming to IEC 68252 Mold growth resistant class 3B2 conforming to IEC 60721-3-3 Fungal spore resistant class 3B2 conforming to IEC 60721-3-3 |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -25...60 °C |
| Advanced diagnostics available via network | Redundancy information Redundancy test Remaining lifetime Temperature sensing Uptime duration |
