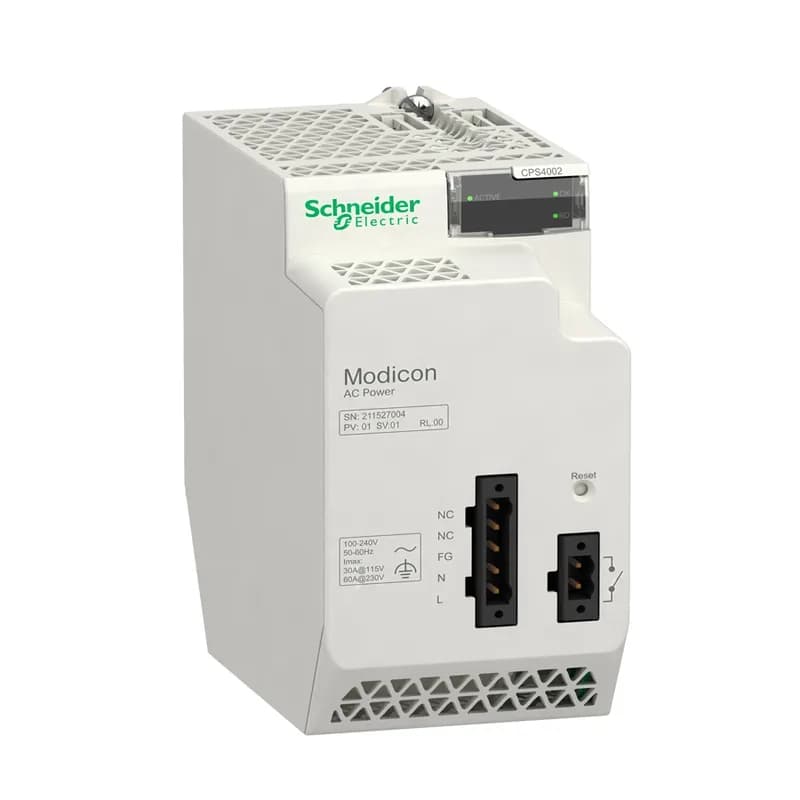

Schneider Electric BMXCPS4002
MPNBMXCPS4002
Active
40 WATTS 110-220 VAC REDUNDANT PWR SUPPL|40 WATTS 110-220 VAC REDUNDANT PWR SUPPL
$571.50Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | RESET push-button cold restart |
| Protection type | Internal fuse not accessible for primary circuit Overload protection for secondary circuit Overvoltage protection for secondary circuit Short-circuit protection for secondary circuit |
| Range of product | Modicon X80 |
| Supply circuit type | AC |
| Product or component type | Power supply module |
| Primary voltage | 100...240 V |
| Primary voltage limit | 85...264 V |
| Current at secondary voltage | 5.5 A 3.3 V DC I/O module logic power supply 1.67 A 24 V DC I/O module power supply and processor |
| Input current | 0.55 A 240 V 1.01 A 115 V |
| Inrush current | 30 A 120 V 60 A 240 V |
| Apparent power | 0.13 kVA |
| Secondary power | 18 W 3.3 V DC at 0...60 °C I/O module logic power supply 40 W 24 V DC at 0...60 °C I/O module power supply and processor if 3.3 V not loaded |
All specifications
| Parameter | Value |
|---|---|
| Maximum power dissipation in | 8.5 W |
| Network frequency | 50/60 Hz |
| Network frequency limits | 47...63 Hz |
| IP degree of protection | IP20 |
| Electrical connection | 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth |
| Shock resistance | 30 gn |
| Relative humidity | 5...95 % at 55 °C without condensation |
| Operating altitude | 0...2000 m 2000...5000 m with derating factor |
| Vibration resistance | 3 gn |
| MTBF reliability | 792000 H |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Status LED | 1 LED (green) presence of voltages (OK) 1 LED (green) redundancy OK 1 LED (green) power supply status |
| It on activation | 0.1 A.s 115 V 0.15 A.s 230 V |
| I2t on activation | 1 A².s 115 V 4 A².s 230 V |
| Dielectric strength | 1500 V primary/secondary I/O module logic power supply 1500 V primary/secondary I/O module power supply and processor 2300 V primary/secondary sensor power supply 1500 V primary/ground 500 V 24 V sensor output/ground |
| Protective treatment | TC Conformal coating Humiseal 1A33 |
| Insulation resistance | >= 100 MOhm primary/ground >= 100 MOhm primary/secondary |
| Backplane compatibility | All backplane |
| Immunity to microbreaks | 1 ms |
| Environmental characteristic | 3C3 conforming to IEC 60721-3-3 3C4 conforming to IEC 60721-3-3 |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | 0...60 °C |
| Advanced diagnostics available via network | Temperature sensing Redundancy test Uptime duration Redundancy information Remaining lifetime |
MPN
BMXCPS4002
