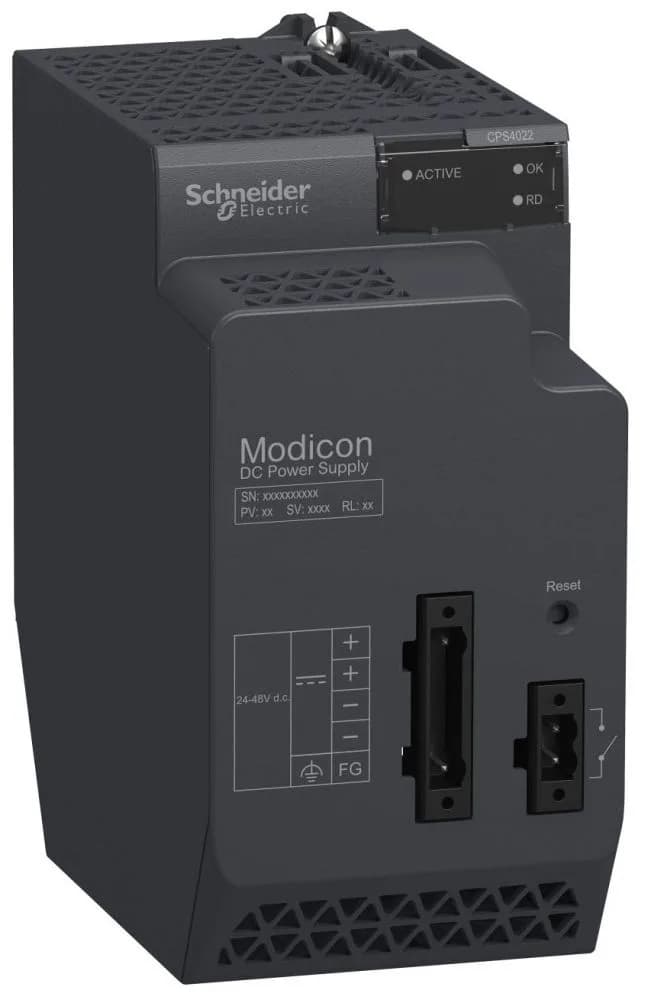

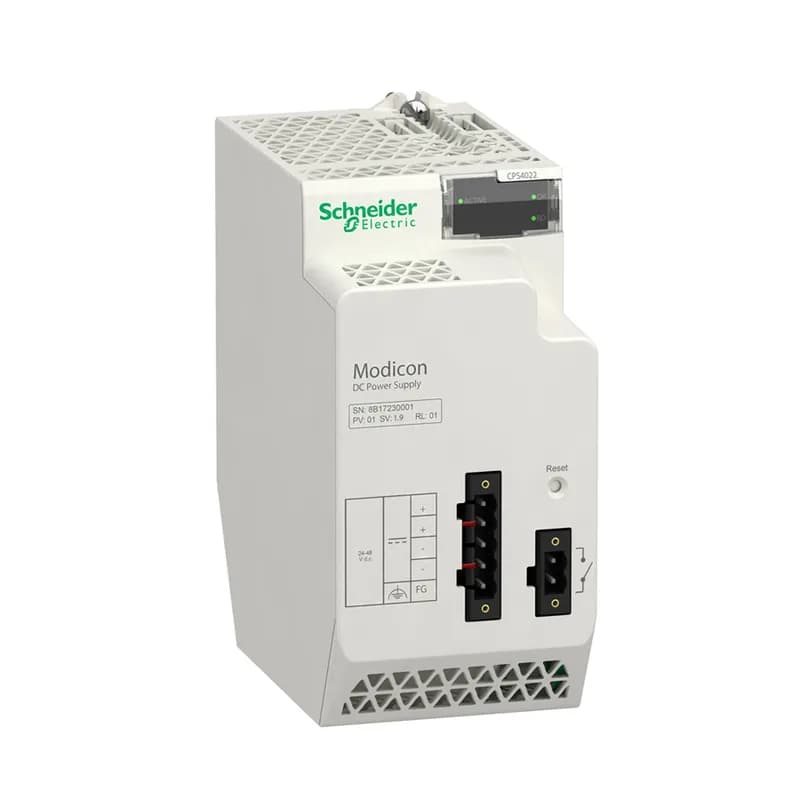

Schneider Electric BMXCPS4022
MPNBMXCPS4022
Active
REDUNDANT 24-48 VDC POWER SUPPLY 40W|REDUNDANT 24-48 VDC POWER SUPPLY 40W
$494.03 – $1,131.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | RESET push-button cold restart |
| Protection type | Internal fuse not accessible for primary circuit Overload protection for secondary circuit Overvoltage protection for secondary circuit Short-circuit protection for secondary circuit |
| Range of product | Modicon X80 |
| Supply circuit type | DC |
| Product or component type | Power supply module |
| Primary voltage | 24...48 V |
| Primary voltage limit | 18...62.4 V |
| Current at secondary voltage | 5.5 A 3.3 V DC I/O module logic power supply 1.67 A 24 V DC I/O module power supply and processor |
| Input current | 1.9 A 24 V 1 A 48 V |
| Inrush current | 60 A 48 V 60 A 24 V |
| Secondary power | 18 W 3.3 V DC at 0...60 °C I/O module logic power supply 40 W 24 V DC at 0...60 °C I/O module power supply and processor if 3.3 V not loaded |
| Maximum power dissipation in | 8.5 W |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 |
| Electrical connection | 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth |
| Maximum cable distance between devices | 10 m 15 m |
| Relative humidity | 10...95 % without condensation |
| Product weight | 0.81 kg |
| MTBF reliability | 752000 H |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Status LED | 1 LED (green) presence of voltages (OK) 1 LED (green) redundancy OK 1 LED (green) power supply status |
| It on activation | 0.05 A.s 24 V 0.08 A.s 48 V |
| I2t on activation | 0.4 A².s 24 V 1.9 A².s 48 V |
| Dielectric strength | 1500 V primary/ground 1500 V primary/secondary |
| Insulation resistance | >= 100 MOhm primary/ground >= 100 MOhm primary/secondary |
| Backplane compatibility | All backplane |
| Immunity to microbreaks | 1 ms |
| Environmental characteristic | 3C3 conforming to IEC 60721-3-3 3C4 conforming to IEC 60721-3-3 |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | 0...60 °C |
| Advanced diagnostics available via network | Redundancy information Redundancy test Temperature sensing Remaining lifetime Uptime duration |
MPN
BMXCPS4022
