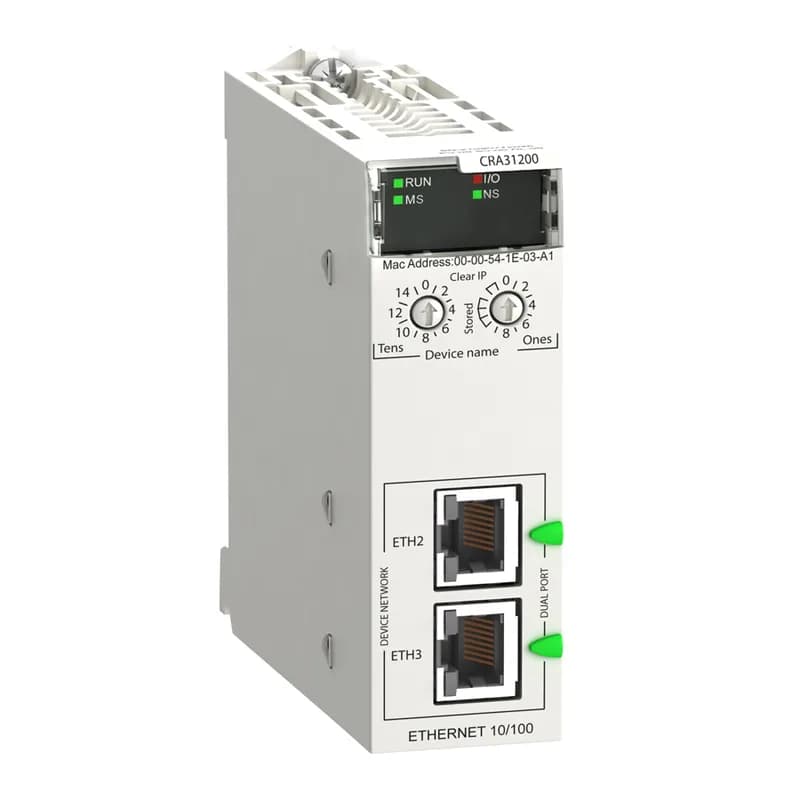

Schneider BMXCRA31200 RIO Drop Adapter
MPNBMXCRA31200
Active
M340 RIO DROP E/IP STD|M340 RIO DROP E/IP STD
$486.41 – $1,131.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Protocol | Bus X across the remote backplane |
| Connector type | 2 RJ45 |
| Range of product | Modicon X80 |
| Product or component type | I/O expansion module |
| Communication network type | IPv4 (internet protocol) |
| Integrated connection type | 2 port for Ethernet RIO Network (RSTP) |
| Input voltage | 3.3 V DC |
| Current consumption | 1200 mA |
| IP degree of protection | IP20 |
| Communication service | Ethernet/IP adapter RSTP (Ring topology support) Ethernet RIO network Quality of Service (QoS) CIP Explicit messaging (server) Modbus TCP server for module diagnostics DHCP client TFTP client FTP client FDR client SNTP client SNMP agent |
| Communication port protocol | EtherNet/IP |
| Mounting mode | Rack-mounted |
All specifications
| Parameter | Value |
|---|---|
| Relative humidity | 95 % without condensation |
| Operating altitude | <= 2000 m |
| Maximum altitude transport | 3000 m |
| Depth | 87.5 mm |
| Width | 32 mm |
| Height | 100 mm |
| Product weight | 0.225 kg |
| Standards | IEC 61131-2 IEC 61010-2-201 UL 61010-2-201 CSA C22.2 No 61010-2-201 IACS E10 IEC 61000-6-5, interface type 1 and type 2 IEC 61850-3, location G |
| Topology | Ring |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Fixing mode | By screws |
| Cybersecurity | Syslog protocol support |
| Exchange mode | Half duplex, full duplex, autonegotiation, auto MDIX |
| Module format | Standard |
| Port ethernet | 10/100BASE-TX |
| Data recording | 10 ms time stamps |
| Number of port | 2 |
| Local signalling | 1 LED (green) for module active (RUN) 1 LED (red) for module error (ERR) 1 LED (green/red) for module status (Mod Status) 1 LED (green/red) for network communication status (Net Status) 1 LED (green) for Ethernet link diagnostics (STS) |
| Transmission rate | 10/100 Mbit/s |
| Device application | X80 Ethernet RIO drop adaptor |
| Function available | CCOTF (configuration change on the fly) Input data is collected and published to the remote I/O head adaptor Output modules are updated with the data received from remote I/O head adaptor Diagnostics for remote I/O devices (Device DDT) I/O extension rack |
| Environmental characteristic | Standard environment |
| Product specific application | For remote I/O modules |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | 0...60 °C |
MPN
BMXCRA31200
