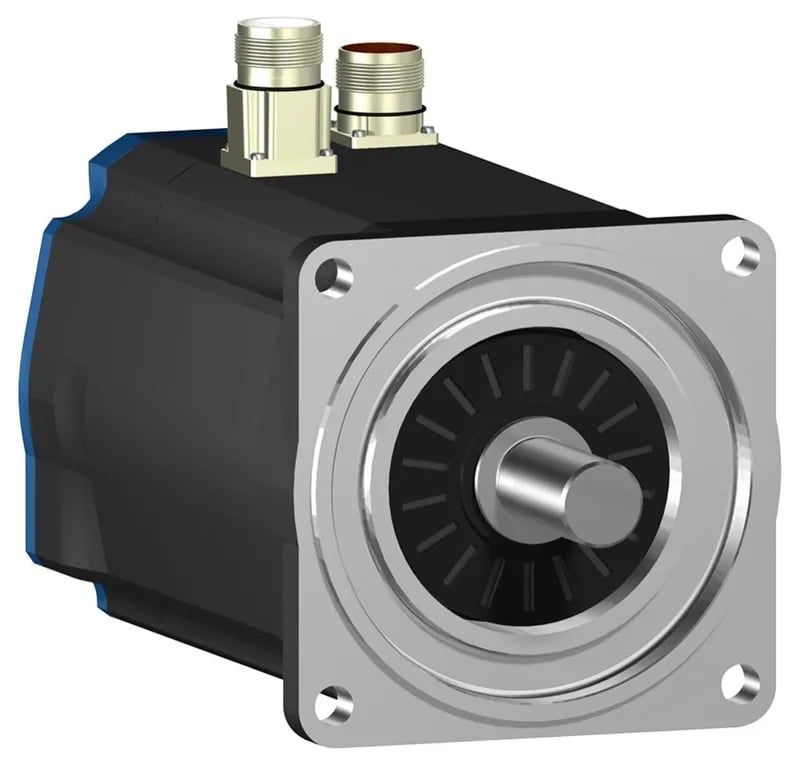

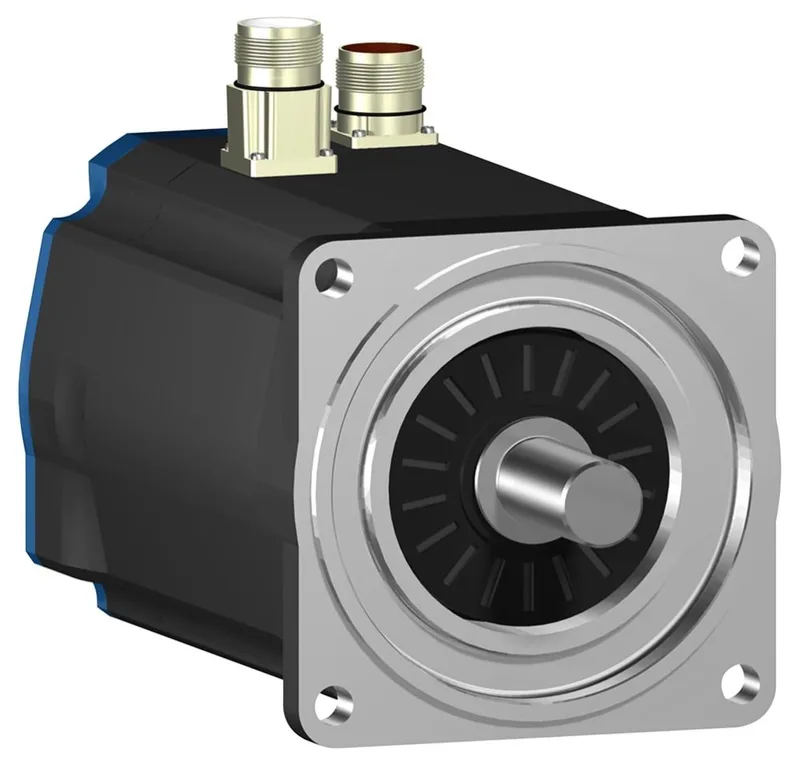

Schneider BSH1402T11A2P Servo Motor
MPNBSH1402T11A2P
Active
Square D BSH1402T11A2P Motor 140 Ip40|Square D BSH1402T11A2P Motor 140 Ip40
$2,670.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Feedback type | Single turn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage max | 480 V |
| Maximum current irms | 72 A for LXM32.D72N4 75.2 A for LXM05AD42M3X 75.2 A for LXM05BD42M3X 75.2 A for LXM05CD42M3X |
| Continuous stall current | 22.5 A |
| Maximum permanent current | 75.2 A |
| Nominal output power | 3900 W for LXM32.D72N4 at 24 A, 400 V, three phase 3900 W for LXM32.D72N4 at 24 A, 480 V, three phase 2900 W for LXM05AD42M3X, 200...240 V, three phase 2900 W for LXM05BD42M3X, 200...240 V, three phase 2900 W for LXM05CD42M3X, 200...240 V, three phase |
| Maximum continuous power | 4.2 W |
| Switching frequency | 8 kHz |
| Network number of phases | 3 |
| IP degree of protection | IP50 standard |
All specifications
| Parameter | Value |
|---|---|
| Mounting support | International standard flange |
| Mounting holes diameter | 11 mm |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 165 mm |
| Electrical connection | Rotatable right-angled connectors |
| Key width | 40 mm |
| Centring collar depth | 3.5 mm |
| Length | 272.5 mm |
| Shaft end | Keyed |
| Second shaft | Without second shaft end |
| Shaft length | 50 mm |
| Holding brake | Without |
| Nominal speed | 3000 rpm for LXM32.D72N4 at 24 A, 400 V, three phase 3000 rpm for LXM32.D72N4 at 24 A, 480 V, three phase 3000 rpm for LXM05AD42M3X, 200...240 V, three phase 3000 rpm for LXM05BD42M3X, 200...240 V, three phase 3000 rpm for LXM05CD42M3X, 200...240 V, three phase |
| Rotor inertia | 12.68 kg.cm² |
| Nominal torque | 12.3 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 12.3 N.m for LXM32.D72N4 at 24 A, 480 V, three phase 9.2 N.m for LXM05AD42M3X, 200...240 V, three phase 9.2 N.m for LXM05BD42M3X, 200...240 V, three phase 9.2 N.m for LXM05CD42M3X, 200...240 V, three phase |
| Shaft diameter | 24 mm |
| Torque constant | 0.87 N.m/A at 120 °C |
| Sizing reference | BSH1402T |
| Back emf constant | 101 V/krpm at 120 °C |
| Device short name | BSH |
| Motor flange size | 140 mm |
| Peak stall torque | 59.3 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 59.3 N.m for LXM32.D72N4 at 24 A, 480 V, three phase 24.56 N.m for LXM05AD42M3X, 200...240 V, three phase 24.56 N.m for LXM05BD42M3X, 200...240 V, three phase |
| Stator inductance | 7.4 mH at 20 °C |
| Stator resistance | 0.6 Ohm at 20 °C |
| Temperature magnet rt | 20 °C |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 2 |
| Temperature copper hot | 120 °C |
| Temperature magnet hot | 100 °C |
| Continuous stall torque | 19.5 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 19.5 N.m for LXM32.D72N4 at 24 A, 480 V, three phase 14.4 N.m for LXM05AD42M3X, 200...240 V, three phase 14.4 N.m for LXM05BD42M3X, 200...240 V, three phase 14.4 N.m for LXM05CD42M3X, 200...240 V, three phase |
| Maximum radial force fr | 1680 N at 3000 rpm 1930 N at 2000 rpm 2430 N at 1000 rpm |
| Accuracy error [angular] | 1.4 ° |
| Centring collar diameter | 130 mm |
| Maximum mechanical speed | 4000 rpm |
| Speed feedback resolution | 131072 points/turn |
| Stator electrical time constant | 12.1 ms at 20 °C |
