Schneider Electric BSH1402T11F2P

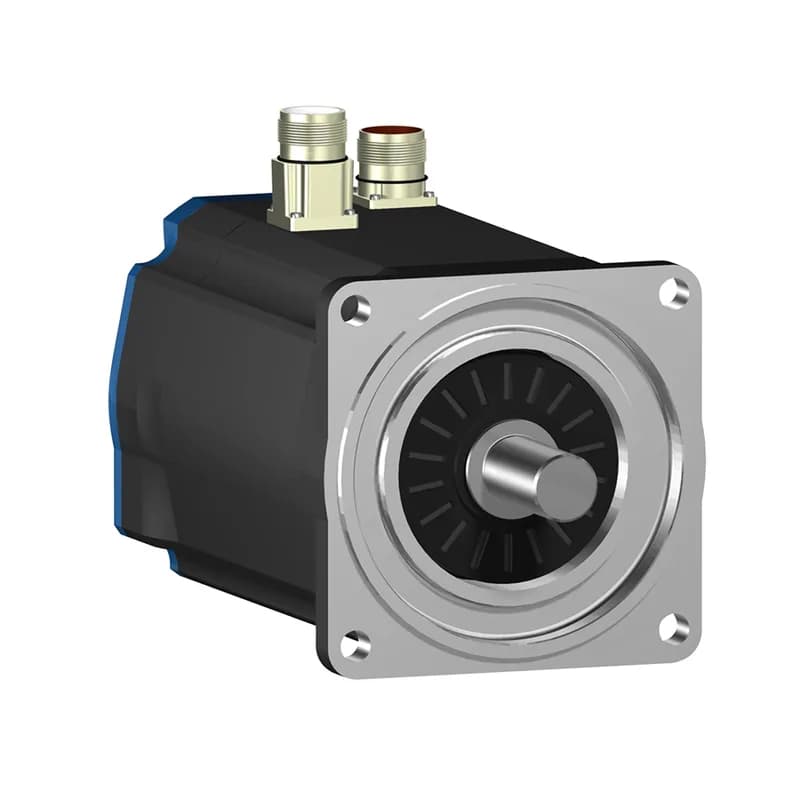

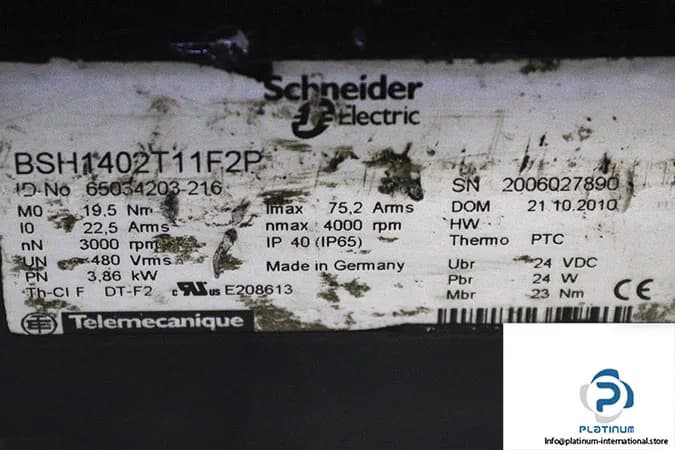

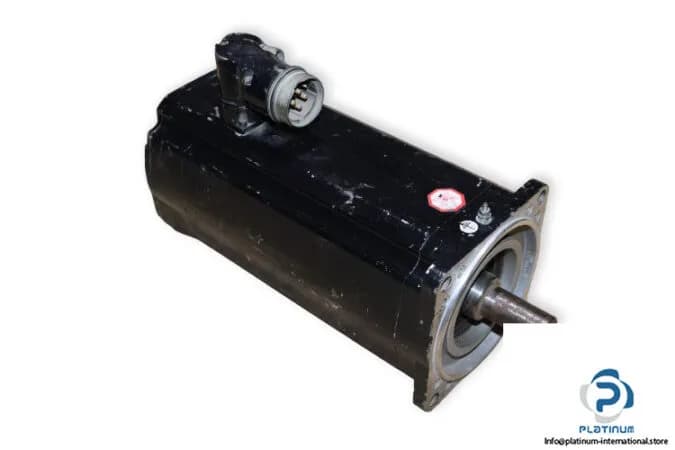

Schneider BSH1402T11F2P BSH servo motor, 19.5 N.m, 3900 W

MPNBSH1402T11F2P
Active

Schneider Electric BSH1402T11F2P BSH AC servo motor, 19.5 N.m torque with LXM32.D72N4 at 400/480 V, 3900 W output, 4000 rpm, IP50, single-turn SinCos Hiperface encoder, keyed shaft, with holding brake.

$2,714.00 – $4,795.00Ref. price · indicative, final on quote
Schneider Electric BSH1402T11F2P datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

BSH1402T11F2P key specifications
ParameterValue
Feedback typeSingle turn SinCos Hiperface
Type of coolingNatural convection
Product or component typeServo motor
Supply voltage max480 V
Maximum current irms72 A for LXM32.D72N4 75.2 A for LXM05AD42M3X 75.2 A for LXM05BD42M3X 75.2 A for LXM05CD42M3X
Continuous stall current22.5 A
Maximum permanent current75.2 A
Brake pull-in power24 W
Nominal output power3900 W for LXM32.D72N4 at 24 A, 400 V, three phase 3900 W for LXM32.D72N4 at 24 A, 480 V, three phase 2900 W for LXM05AD42M3X, 200...240 V, three phase 2900 W for LXM05BD42M3X, 200...240 V, three phase 2900 W for LXM05CD42M3X, 200...240 V, three phase
Maximum continuous power4.2 W
Switching frequency8 kHz
Network number of phases3

All specifications

BSH1402T11F2P additional specifications
ParameterValue
IP degree of protectionIP50 standard
Mounting supportInternational standard flange
Mounting holes diameter11 mm
Number of mounting holes4
Circle diameter of the mounting holes165 mm

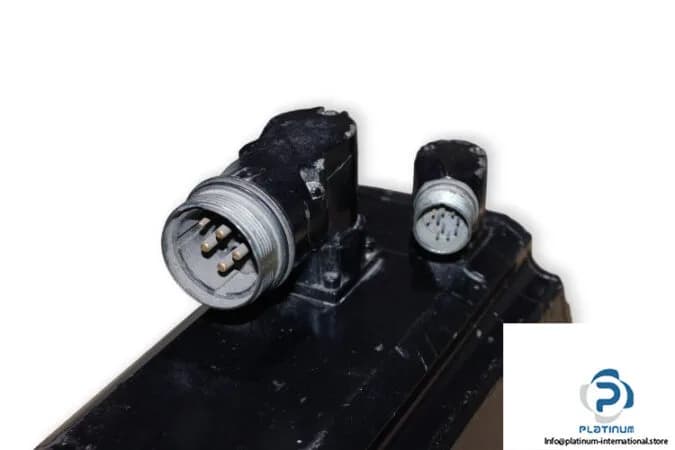

Electrical connectionRotatable right-angled connectors
Key width40 mm
Centring collar depth3.5 mm
Length310.5 mm
Shaft endKeyed
Second shaftWithout second shaft end
Shaft length50 mm
Holding brakeWith
Nominal speed3000 rpm for LXM32.D72N4 at 24 A, 400 V, three phase 3000 rpm for LXM32.D72N4 at 24 A, 480 V, three phase 3000 rpm for LXM05AD42M3X, 200...240 V, three phase 3000 rpm for LXM05BD42M3X, 200...240 V, three phase 3000 rpm for LXM05CD42M3X, 200...240 V, three phase
Rotor inertia14.48 kg.cm²
Holding torque23 N.m holding brake
Nominal torque12.3 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 12.3 N.m for LXM32.D72N4 at 24 A, 480 V, three phase 9.2 N.m for LXM05AD42M3X, 200...240 V, three phase 9.2 N.m for LXM05BD42M3X, 200...240 V, three phase 9.2 N.m for LXM05CD42M3X, 200...240 V, three phase
Shaft diameter24 mm
Torque constant0.87 N.m/A at 120 °C
Sizing referenceBSH1402T
Back emf constant101 V/krpm at 120 °C
Device short nameBSH
Motor flange size140 mm
Peak stall torque59.3 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 59.3 N.m for LXM32.D72N4 at 24 A, 480 V, three phase 24.56 N.m for LXM05AD42M3X, 200...240 V, three phase 24.56 N.m for LXM05BD42M3X, 200...240 V, three phase
Stator inductance7.4 mH at 20 °C
Stator resistance0.6 Ohm at 20 °C
Temperature magnet rt20 °C
Maximum axial force fa0.2 x Fr
Number of motor stacks2
Temperature copper hot120 °C
Temperature magnet hot100 °C
Continuous stall torque19.5 N.m for LXM32.D72N4 at 24 A, 400 V, three phase 19.5 N.m for LXM32.D72N4 at 24 A, 480 V, three phase 14.4 N.m for LXM05AD42M3X, 200...240 V, three phase 14.4 N.m for LXM05BD42M3X, 200...240 V, three phase 14.4 N.m for LXM05CD42M3X, 200...240 V, three phase
Maximum radial force fr1680 N at 3000 rpm 1930 N at 2000 rpm 2430 N at 1000 rpm
Accuracy error [angular]1.4 °
Centring collar diameter130 mm
Maximum mechanical speed4000 rpm
Speed feedback resolution131072 points/turn
Stator electrical time constant12.1 ms at 20 °C

Product details

Overview

The BSH1402T11F2P is a Schneider BSH-frame AC servo motor delivering 19.5 N.m of continuous torque when paired with the LXM32.D72N4 drive at 400 V or 480 V three-phase, with a continuous output of 3900 W and a top speed of 4000 rpm. It carries a single-turn SinCos Hiperface encoder resolving 131072 points per turn, a holding brake, and a keyed shaft, sealed to IP50 with natural convection cooling.

The 19.5 N.m continuous torque is rated specifically with the LXM32.D72N4 drive at 24 A; when used with Lexium 05 drives (LXM05AD42M3X, LXM05BD42M3X, LXM05CD42M3X) on 200...240 V three-phase, torque drops to 14.4 N.m — size the drive and supply voltage accordingly. The 140 mm frame size and 24 mm keyed shaft with a holding brake suit it for vertical-axis or high-inertia loads where the brake holds the load at standstill.
