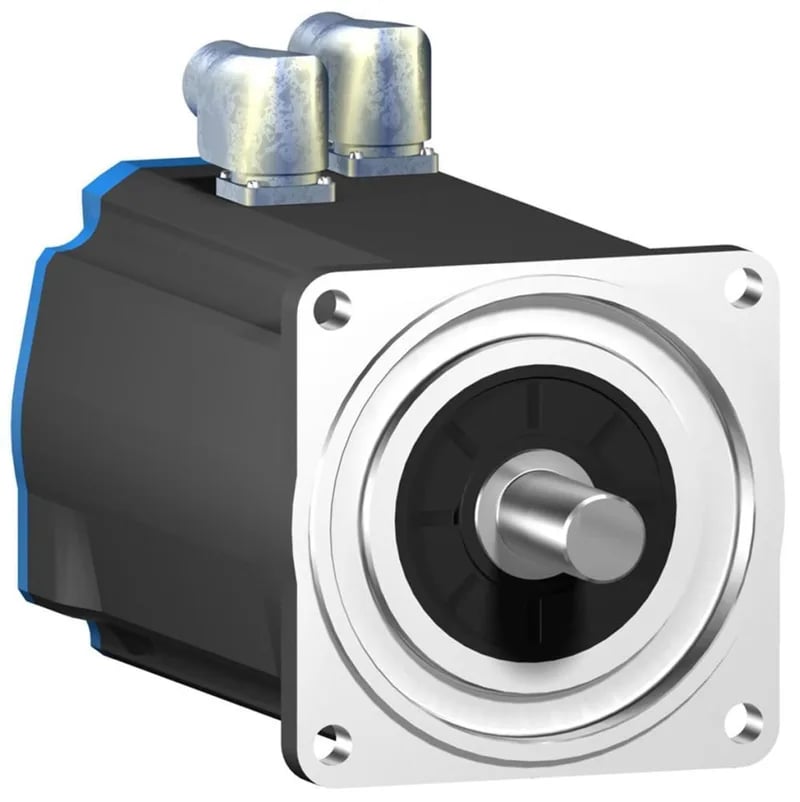

Schneider Electric BSH1402T12F2P
MPNBSH1402T12F2P
Active
Square D BSH1402T12F2P Servo Motor|Square D BSH1402T12F2P Servo Motor
$5,395.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Feedback type | Multiturn SinCos Hiperface |
| Type of cooling | Natural convection |
| Product or component type | Servo motor |
| Supply voltage max | 480 V |
| Maximum current irms | 72 A LXM32.D72N4 75.2 A LXM05AD42M3X 75.2 A LXM05BD42M3X 75.2 A LXM05CD42M3X |
| Output current 3s peak | 75.2 A |
| Continuous stall current | 22.5 A |
| Maximum permanent current | 75.2 A |
| Brake pull-in power | 24 W |
| Nominal output power | 3900 W LXM32.D72N4 24 A, 400 V, three phase 3900 W LXM32.D72N4 24 A, 480 V, three phase 2900 W LXM05AD42M3X, 200...240 V, three phase 2900 W LXM05BD42M3X, 200...240 V, three phase 2900 W LXM05CD42M3X, 200...240 V, three phase |
| Maximum continuous power | 4.2 W |
| Switching frequency | 8 kHz |
All specifications
| Parameter | Value |
|---|---|
| Number of motor poles | 5.0 |
| Phases | Three phase |
| Network number of phases | 3 |
| IP degree of protection | IP50 standard |
| Mounting support | International standard flange |
| Mounting holes diameter | 0.4 in (11 mm) |
| Number of mounting holes | 4 |
| Circle diameter of the mounting holes | 6.5 in (165 mm) |
| Electrical connection | Rotatable right-angled connectors |
| Key width | 1.6 in (40 mm) |
| Centring collar depth | 0.1 in (3.5 mm) |
| Length | 12.2 in (310.5 mm) |
| Inertia | 1.8 kg.cm² of brake 12.68 kg.cm² of motor |
| Category | US1PC5318282 |
| Shaft end | Keyed |
| Second shaft | Without second shaft end |
| Shaft length | 2.0 in (50 mm) |
| Holding brake | With |
| Nominal speed | 3000 rpm LXM32.D72N4 24 A, 400 V, three phase 3000 rpm LXM32.D72N4 24 A, 480 V, three phase 3000 rpm LXM05AD42M3X, 200...240 V, three phase 3000 rpm LXM05BD42M3X, 200...240 V, three phase 3000 rpm LXM05CD42M3X, 200...240 V, three phase |
| Rotor inertia | 14.48 kg.cm² |
| Holding torque | 203.6 lbf.in (23 N.m) holding brake |
| Nominal torque | 108.9 lbf.in (12.3 N.m) LXM32.D72N4 24 A, 400 V, three phase 108.9 lbf.in (12.3 N.m) LXM32.D72N4 24 A, 480 V, three phase 81.4 lbf.in (9.2 N.m) LXM05AD42M3X, 200...240 V, three phase 81.4 lbf.in (9.2 N.m) LXM05BD42M3X, 200...240 V, three phase 81.4 lbf.in (9.2 N.m) LXM05CD42M3X, 200...240 V, three phase |
| Shaft diameter | 0.9 in (24 mm) |
| Torque constant | 0.87 N.m/A 248 °F (120 °C) |
| Sizing reference | BSH1402T |
| Back emf constant | 101 V/krpm 248 °F (120 °C) |
| Device short name | BSH |
| Motor flange size | 5.5 in (140 mm) |
| Peak stall torque | 524.8 lbf.in (59.3 N.m) LXM32.D72N4 24 A, 400 V, three phase 524.8 lbf.in (59.3 N.m) LXM32.D72N4 24 A, 480 V, three phase 217.37 lbf.in (24.56 N.m) LXM05AD42M3X, 200...240 V, three phase 217.37 lbf.in (24.56 N.m) LXM05BD42M3X, 200...240 V, three phase |
| Stator inductance | 1.325 mH 68 °F (20 °C) |
| Stator resistance | 0.6 Ohm 68 °F (20 °C) |
| Temperature magnet rt | 68 °F (20 °C) |
| Maximum axial force fa | 0.2 x Fr |
| Number of motor stacks | 2 |
| Temperature copper hot | 248 °F (120 °C) |
| Temperature magnet hot | 212 °F (100 °C) |
| Continuous stall torque | 172.6 lbf.in (19.5 N.m) LXM32.D72N4 24 A, 400 V, three phase 172.6 lbf.in (19.5 N.m) LXM32.D72N4 24 A, 480 V, three phase 127.5 lbf.in (14.4 N.m) LXM05AD42M3X, 200...240 V, three phase 127.5 lbf.in (14.4 N.m) LXM05BD42M3X, 200...240 V, three phase 127.5 lbf.in (14.4 N.m) LXM05CD42M3X, 200...240 V, three phase |
| Maximum radial force fr | 1680 N 3000 rpm 1930 N 2000 rpm 2430 N 1000 rpm |
| Accuracy error [angular] | 1.4 ° |
| Centring collar diameter | 5.1 in (130 mm) |
| Maximum mechanical speed | 4000 rpm |
| Speed feedback resolution | 131072 points/turn x 4096 turns |
| Stator electrical time constant | 12.1 ms 68 °F (20 °C) |
