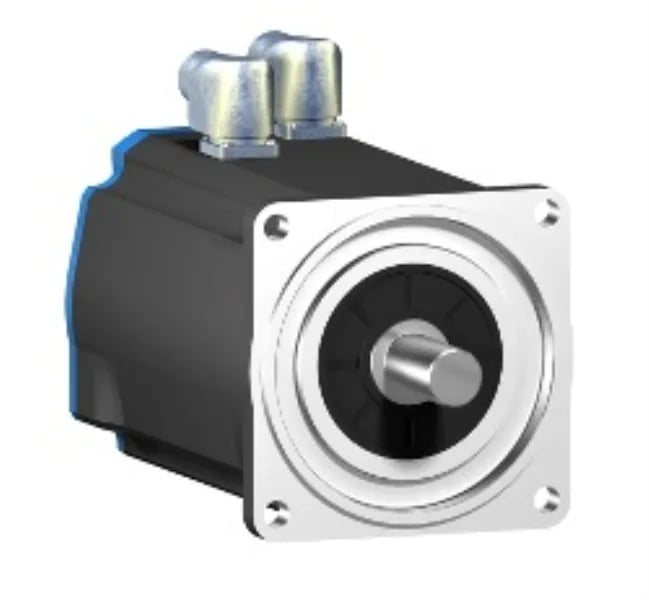

Schneider BSH1404P01F1P Servo Motor

MPNBSH1404P01F1P

Active

Square D BSH1404P01F1P Motor 140 Ip40 Smooth Inc Brake Straight|Square D BSH1404P01F1P Motor 140 Ip40 Smooth Inc Brake Straight

$1,508.76 – $4,105.00Ref. price · indicative, final on quote

Request quote

Schneider Electric BSH1404P01F1P datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

How we verify every order →

Specifications

BSH1404P01F1P key specifications
Parameter	Value
Feedback type	Single turn SinCos Hiperface
Type of cooling	Natural convection
Product or component type	Servo motor
Supply voltage max	480 V
Maximum current irms	72 A LXM32.D72N4 95.6 A LXM05AD57N4 95.6 A LXM05BD57N4 95.6 A LXM05CD57N4
Output current 3s peak	95.6 A
Continuous stall current	21.3 A
Maximum permanent current	95.6 A
Brake pull-in power	26 W
Nominal output power	5000 W LXM32.D72N4 24 A, 400 V, three phase 5000 W LXM32.D72N4 24 A, 480 V, three phase 3400 W LXM05AD57N4, 380...480 V, three phase 3400 W LXM05BD57N4, 380...480 V, three phase 3400 W LXM05CD57N4, 380...480 V, three phase
Maximum continuous power	4.33 W
Switching frequency	8 kHz

All specifications

BSH1404P01F1P additional specifications
Parameter	Value
Number of motor poles	5.0
Phases	Three phase
Network number of phases	3
IP degree of protection	IP50 standard
Mounting support	International standard flange
Mounting holes diameter	0.4 in (11 mm)
Number of mounting holes	4
Circle diameter of the mounting holes	6.5 in (165 mm)
Electrical connection	Straight connectors
Centring collar depth	0.1 in (3.5 mm)
Length	16.6 in (420.5 mm)
Inertia	5.5 kg.cm² of brake 23.7 kg.cm² of motor
Category	US1PC5318282
Shaft end	Untapped
Second shaft	Without second shaft end
Shaft length	2.0 in (50 mm)
Holding brake	With
Nominal speed	2500 rpm LXM32.D72N4 24 A, 400 V, three phase 2500 rpm LXM32.D72N4 24 A, 480 V, three phase 3000 rpm LXM05AD57N4, 380...480 V, three phase 3000 rpm LXM05BD57N4, 380...480 V, three phase 3000 rpm LXM05CD57N4, 380...480 V, three phase
Rotor inertia	29.2 kg.cm²
Holding torque	318.6 lbf.in (36 N.m) holding brake
Nominal torque	168.2 lbf.in (19 N.m) LXM32.D72N4 24 A, 400 V, three phase 168.2 lbf.in (19 N.m) LXM32.D72N4 24 A, 480 V, three phase 95.6 lbf.in (10.8 N.m) LXM05AD57N4, 380...480 V, three phase 95.6 lbf.in (10.8 N.m) LXM05BD57N4, 380...480 V, three phase 95.6 lbf.in (10.8 N.m) LXM05CD57N4, 380...480 V, three phase
Shaft diameter	0.9 in (24 mm)
Torque constant	1.57 N.m/A 248 °F (120 °C)
Sizing reference	BSH1404P
Back emf constant	104 V/krpm 248 °F (120 °C)
Device short name	BSH
Motor flange size	5.5 in (140 mm)
Peak stall torque	916.9 lbf.in (103.6 N.m) LXM32.D72N4 24 A, 400 V, three phase 916.9 lbf.in (103.6 N.m) LXM32.D72N4 24 A, 480 V, three phase 558.39 lbf.in (63.09 N.m) LXM05AD57N4, 380...480 V, three phase 558.39 lbf.in (63.09 N.m) LXM05BD57N4, 380...480 V, three phase 558.39 lbf.in (63.09 N.m) LXM05CD57N4, 380...480 V, three phase
Stator inductance	2.035 mH 68 °F (20 °C)
Stator resistance	0.28 Ohm 68 °F (20 °C)
Temperature magnet rt	68 °F (20 °C)
Maximum axial force fa	0.2 x Fr
Number of motor stacks	4
Temperature copper hot	248 °F (120 °C)
Temperature magnet hot	212 °F (100 °C)
Continuous stall torque	295.6 lbf.in (33.4 N.m) LXM32.D72N4 24 A, 400 V, three phase 295.6 lbf.in (33.4 N.m) LXM32.D72N4 24 A, 480 V, three phase 284.1 lbf.in (32.1 N.m) LXM05AD57N4, 380...480 V, three phase 284.1 lbf.in (32.1 N.m) LXM05BD57N4, 380...480 V, three phase 284.1 lbf.in (32.1 N.m) LXM05CD57N4, 380...480 V, three phase
Maximum radial force fr	1840 N 3000 rpm 2110 N 2000 rpm 2660 N 1000 rpm
Accuracy error [angular]	1.4 °
Centring collar diameter	5.1 in (130 mm)
Maximum mechanical speed	4000 rpm
Speed feedback resolution	131072 points/turn
Stator electrical time constant	13.93 ms 68 °F (20 °C)
