Schneider Electric C10B6TM025C — Miniature Circuit Breakers (MCB)

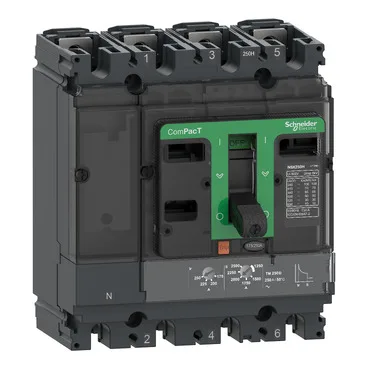

Schneider Electric C10B6TM025C ComPacT NSX Circuit Breaker,

MPNC10B6TM025C
Active

Schneider Electric ComPacT NSX, circuit breaker, 4P, 25 A, TM-D trip unit, 25 kA at 415 V AC, toggle control, IP40, backplate mount.

Schneider Electric C10B6TM025C datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C10B6TM025C — Identification
ParameterValue
Product nameComPacT NSX
Product rangeComPacT
Product/component typeCircuit breaker
Device applicationDistribution
C10B6TM025C — Ratings
ParameterValue
Rated current (In)25 A at 50 °C
Poles configuration4P
Breaking capacity40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
Rated service breaking capacity (Ics)40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 20 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 7 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
Rated operational voltage (Ue)690 V AC 50/60 Hz
Rated insulation voltage (Ui)800 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Network type (AC/DC)AC
Network frequency50/60 Hz
Utilisation categoryCategory A
Overvoltage categoryIII
C10B6TM025C — Protection
ParameterValue
Trip unit technologyThermal-magnetic
Earth-leakage protectionWithout
Suitability for isolationYes conforming to EN/IEC 60947-2
Electrical durability (cycles)50000 cycles at 440 V In/2 30000 cycles at 440 V In 20000 cycles at 690 V In/2 10000 cycles at 690 V In
Mechanical durability (cycles)50000 cycles
C10B6TM025C — Mechanical
ParameterValue
Mounting supportBackplate
Control typeToggle
C10B6TM025C — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-50...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
C10B6TM025C — Approvals
ParameterValue
StandardsEN/IEC 60947-2
C10B6TM025C — Specifications
ParameterValue
[Ir] long-time protection pick-up adjustment range0.7...1 x In
Trip unit protection functionsLI

Product details

It carries a 25 A thermal-magnetic TM-D trip unit that provides L (overload) and I (short-circuit) protection. The breaker is rated for 25 kA Icu at 380/415 V AC 50/60 Hz per EN/IEC 60947-2, with a 4-pole configuration and neutral position on the left. It is in current lifecycle stage.

At 240 V AC the rating climbs to 40 kA Icu. For a 25 A feeder, that gives solid headroom against a typical 10 kA available fault current at the panelboard.

Rated for 50,000 mechanical cycles and 30,000 electrical cycles at rated current. No earth-leakage protection built in; add a separate Vigi module if ground-fault detection is needed. The neutral protection setting is 3D (no protection) — confirm the neutral conductor sizing for your system.
