Schneider Electric C10V32M050 — Miniature Circuit Breakers (MCB)

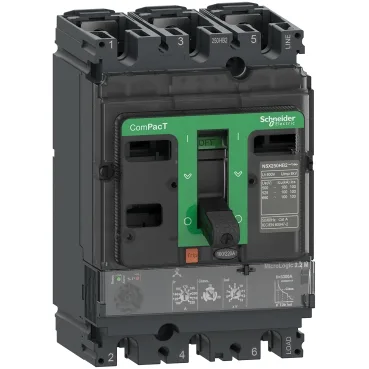

Schneider C10V32M050 ComPacT NSX MCCB, 3-pole, 50 A, 85 kA ICu

MPNC10V32M050
Active

Schneider C10V32M050 Compact Nsx, New Generation — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$542.25Ref. price · indicative, final on quote
Schneider Electric C10V32M050 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

C10V32M050 — Identification
ParameterValue
Product nameComPacT NSX
Product rangeComPacT
Product/component typeCircuit breaker
Device applicationMotor protection
C10V32M050 — Ratings
ParameterValue
Rated current (In)50 A at 65 °C
Poles configuration3P
Breaking capacity85 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 80 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 75 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Rated service breaking capacity (Ics)85 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 80 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 75 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Rated operational voltage (Ue)690 V AC 50/60 Hz
Rated insulation voltage (Ui)800 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Network type (AC/DC)AC
Network frequency50/60 Hz
Utilisation categoryCategory A
Overvoltage categoryIII
C10V32M050 — Protection
ParameterValue
Trip unit technologyElectronic
Earth-leakage protectionWithout
Suitability for isolationYes conforming to EN/IEC 60947-2
Electrical durability (cycles)20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In
Mechanical durability (cycles)20000 cycles
C10V32M050 — Mechanical
ParameterValue
Mounting supportBackplate
Control typeToggle
Local signalling/indicationFlashing LED (green) for ready to operate LED 95 % Ith (red) for temperature over set point
C10V32M050 — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-50...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
C10V32M050 — Approvals
ParameterValue
StandardsEN/IEC 60947-2
C10V32M050 — Specifications
ParameterValue
[Ir] long-time protection pick-up adjustment range25...50 A
Trip unit protection functionsLSoI

Product details

Overview

The C10V32M050 is a Schneider ComPacT NSX molded case circuit breaker with a MicroLogic 2.2 M electronic trip unit rated 50 A at 65 °C. It is a 3-pole unit with an 85 kA ICu breaking capacity at 690 V AC, designed for motor protection applications. The breaker uses a fixed mounting style with toggle control and complies with EN/IEC 60947-2.

The C10V32M050 is an active part within the ComPacT NSX new generation range. For current lead time and pricing, submit an RFQ; availability is confirmed per inquiry.

MPN
C10V32M050
