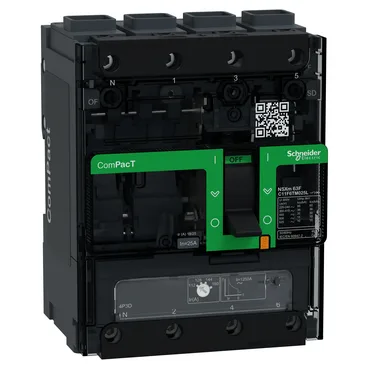

The C11F6TM025L is a Schneider Electric ComPacT NSXm moulded-case circuit breaker rated 25 A continuous at 40 °C, 4-pole (4P), with a 36 kA breaking capacity at 415 V AC (performance level F). The TM-D thermal-magnetic trip unit provides overload and short-circuit protection for distribution circuits. This is the 63 A frame (NSXm 63F) fitted with a 25 A trip unit — the frame itself is oversized relative to the trip, which means the breaker can handle higher prospective fault currents than a 25 A frame would, but the trip coil limits the continuous load to 25 A. Rated for isolation per IEC 60947-2, category A utilisation, and pollution degree 3.
Backplate-mounted, 108 mm wide × 137 mm high × 80 mm deep. Occupies 12 module pitches at 9 mm each. Accepts Everlink lug terminals: 2.5–95 mm² rigid or stranded aluminium/copper, 2.5–70 mm² flexible copper. The 35 mm connection pitch with spreaders, 27 mm without. Front-connect both line and load sides. IP40 enclosure protection, IK07 impact rating. Mounts horizontally or vertically flat on the back. The grey RAL 7016 colour is standard for the ComPacT range.
