Schneider Electric C11N4TM050L — Miniature Circuit Breakers (MCB)

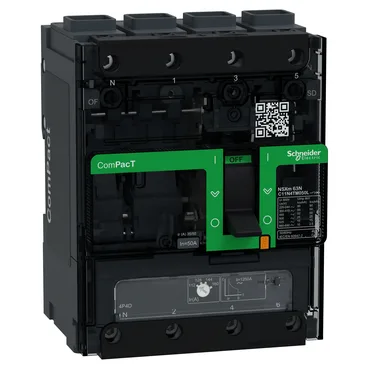

C11N4TM050L ComPacT NSXm 4P 50A TM-D Circuit Breaker, 50 kA

MPNC11N4TM050L
Active

Schneider Electric ComPacT NSXm, 4P, 50 A, TM-D trip unit, 50 kA at 415 V AC, IP40, grey (RAL 7016).

$350.16Ref. price · indicative, final on quote
Schneider Electric C11N4TM050L datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

C11N4TM050L — Identification
ParameterValue
Product nameComPacT NSXm
Product rangeComPacT
Product/component typeCircuit breaker
Device applicationDistribution
C11N4TM050L — Ratings
ParameterValue
Rated current (In)50 A at 40 °C
Poles configuration4P
Rated operational voltage (Ue)690 V AC 50/60 Hz
Rated insulation voltage (Ui)800 V AC 50/60 Hz
Rated impulse withstand voltage (Uimp)8 kV
Network type (AC/DC)AC
Network frequency50/60 Hz
Utilisation categoryCategory A
Overvoltage categoryIII
C11N4TM050L — Protection
ParameterValue
Trip unit technologyThermal-magnetic
Earth-leakage protectionWithout
Suitability for isolationYes conforming to IEC 60947-2
Electrical durability (cycles)20000 cycles at 440 V In/2 10000 cycles at 440 V In 10000 cycles at 690 V In/2 5000 cycles at 690 V In
Mechanical durability (cycles)20000 cycles
C11N4TM050L — Mechanical
ParameterValue
Mounting supportBackplate
Control typeToggle
Local signalling/indicationFlag (green) for presence of auxiliary contacts
Number of 9 mm pitches12 module
C11N4TM050L — Environmental
ParameterValue
Operating ambient temperature-25...70 °C
Storage ambient temperature-50...85 °C
IP degree of protectionIP40 conforming to IEC 60529
Pollution degree3 conforming to IEC 60664-1
Relative humidity0...95 %
C11N4TM050L — Approvals
ParameterValue
StandardsEN/IEC 60947-2
C11N4TM050L — Electrical
ParameterValue
[Icu] rated ultimate short-circuit breaking capacity90 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 660...690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity90 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 25 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 15 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 2.5 kA at 660...690 V AC 50/60 Hz conforming to IEC 60947-2
C11N4TM050L — Specifications
ParameterValue
[Ir] long-time protection pick-up adjustment range0.7...1 x In
Trip unit protection functionsLI

Product details

The C11N4TM050L is a Schneider Electric ComPacT NSXm 4-pole circuit breaker with a TM-D thermal-magnetic trip unit rated 50 A at 40 °C. It's built to EN/IEC 60947-2 for distribution duty, with a 50 kA breaking capacity at 415 V AC — that's the N-level performance, meaning it can clear a fault up to 50 kA without welding or rupturing, which is the spec that decides whether this breaker coordinates with downstream gear in a panel.

Front-connected terminals use Everlink lugs — one lug per pole, accepting 2.5 to 95 mm² rigid or stranded aluminium/copper, or 2.5 to 70 mm² flexible copper.

Environment and protection

Rated IP40 (finger-safe, no water ingress) and IK07 impact resistance. The grey RAL 7016 finish is standard for the ComPacT line.

Frequently asked questions

What is C11N4TM050L's breaking capacity?

50 kA at 415 V AC, N-level performance per the ComPacT NSXm range. That's the short-circuit rating that governs selectivity and SCCR coordination in a distribution panel.
