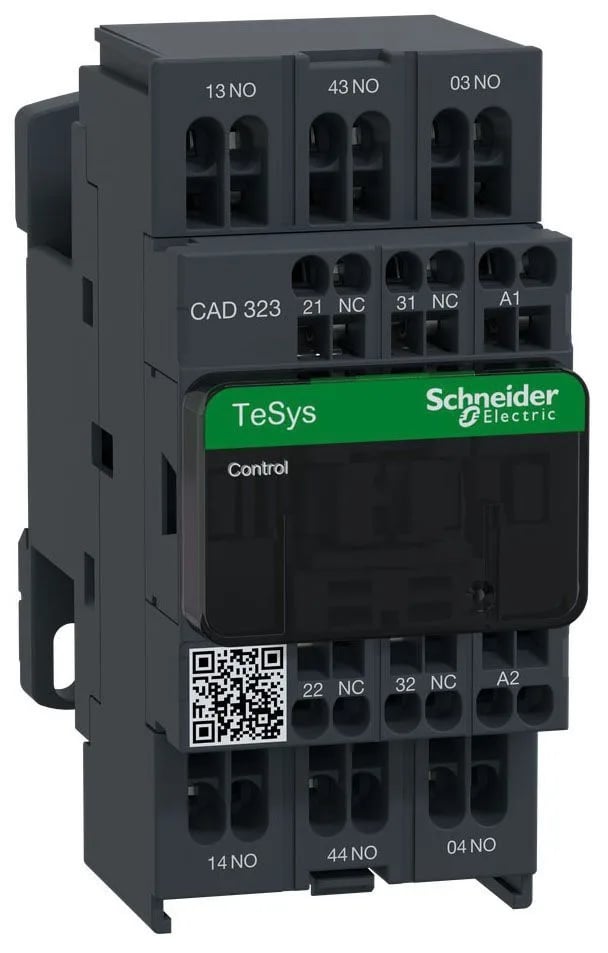

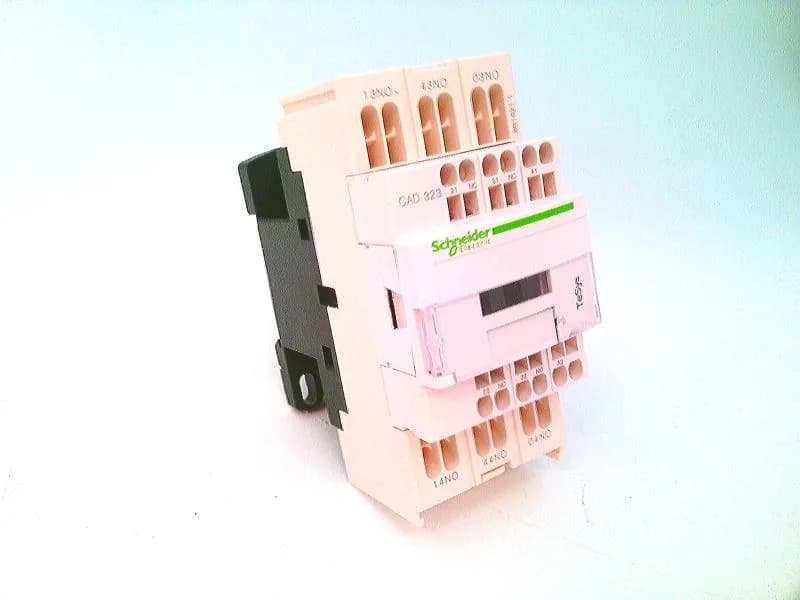

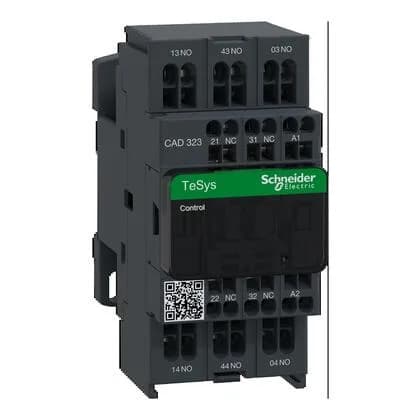

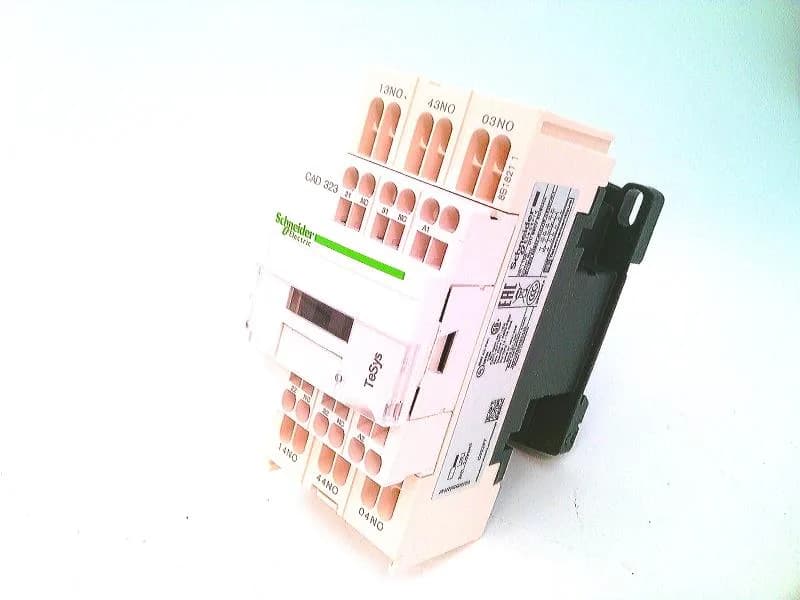

Schneider Electric CAD323F7
MPNCAD323F7
Active
TESYS D CONTROL RELAY - 3 NO + 2 NC - <= 690 V - 110 V AC STANDAR|TESYS D CONTROL RELAY - 3 NO + 2 NC - <= 690 V - 110 V AC STANDARD COIL
$21.59Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Control relay |
| [Ue] rated operational voltage | 10 MOhm |
| Pole contact composition | 3 NO + 2 NC |
| Utilisation category | DC-13 AC-15 AC-14 |
| IP degree of protection | IP2X front face VDE 0106 |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 3.3 in (84 mm) |
| Width | 1.8 in (45 mm) |
| Height | 3.9 in (99 mm) |
| Standards | EN/IEC 60947-5-1 GB/T 14048.5 UL 60947-5-1 CSA C22.2 No 60947-5-1 JIS C8201-5-1 |
| Range | TeSys TeSys Deca |
| Category | US10I1222371 |
| Device short name | CAD |
| Protective treatment | TH IEC 60068 |
| Contactor application | Control circuit |
| Mechanical robustness | Shocks control relay open10 Gn for 11 ms IEC 60068-2-27 Shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 Vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 Vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6 |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating |
MPN
CAD323F7
